Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

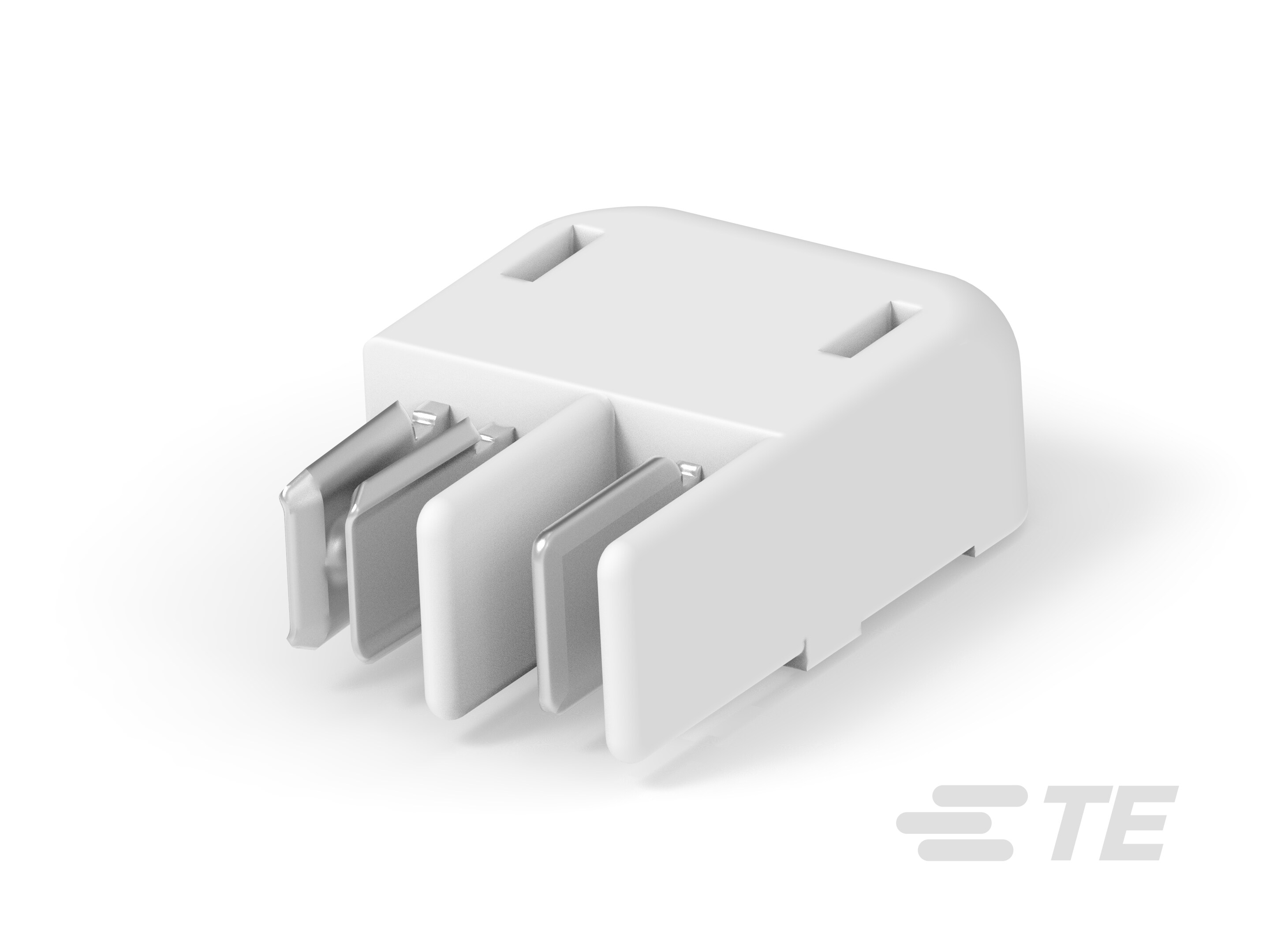

• PCB Connector Type : PCB Mount Hermaphroditic Connector

• Connector System : Board-to-Board

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Stackable : No

• Board-to-Board Configuration : Co-Planar

• Connector Contact Load Condition : Fully Loaded

• PCB Mount Orientation : Horizontal

• Number of Positions : 2

• Number of Rows : 1

• Dielectric Withstanding Voltage (Max) (VAC): 1500

• Operating Voltage (VDC): 125

• Operating Voltage (VAC): 125

• Primary Product Color : Natural

• PCB Contact Termination Area Plating Material : Tin

• Mating Tab Thickness : .4 mm [ .016 in ]

• Contact Base Material : Copper Alloy

• Contact Layout : Inline

• Mating Tab Width : 3.05 mm [ .12 in ]

• Contact Mating Area Plating Material : Tin (Sn)

• Contact Type : Hermaphroditic

• Contact Current Rating (Max) (A): 6

• Rectangular Termination Post & Tail Thickness : .4 mm [ .016 in ]

• Rectangular Termination Post & Tail Width : 1 mm [ .04 in ]

• Termination Method to PCB : Surface Mount

• PCB Mount Alignment Type : None

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : Without

• Housing Material : LCP

• Centerline (Pitch) (mm): 4

• Connector Height (mm): 3.9

• Housing Temperature Rating : High

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

• Circuit Application : Power

• Compatible With Approved Standards Products : CSA LR7189, UL E28476

• Compatible With Agency/Standards Products : CSA

• UL Flammability Rating : UL 94V-0
