1SET411022R0000

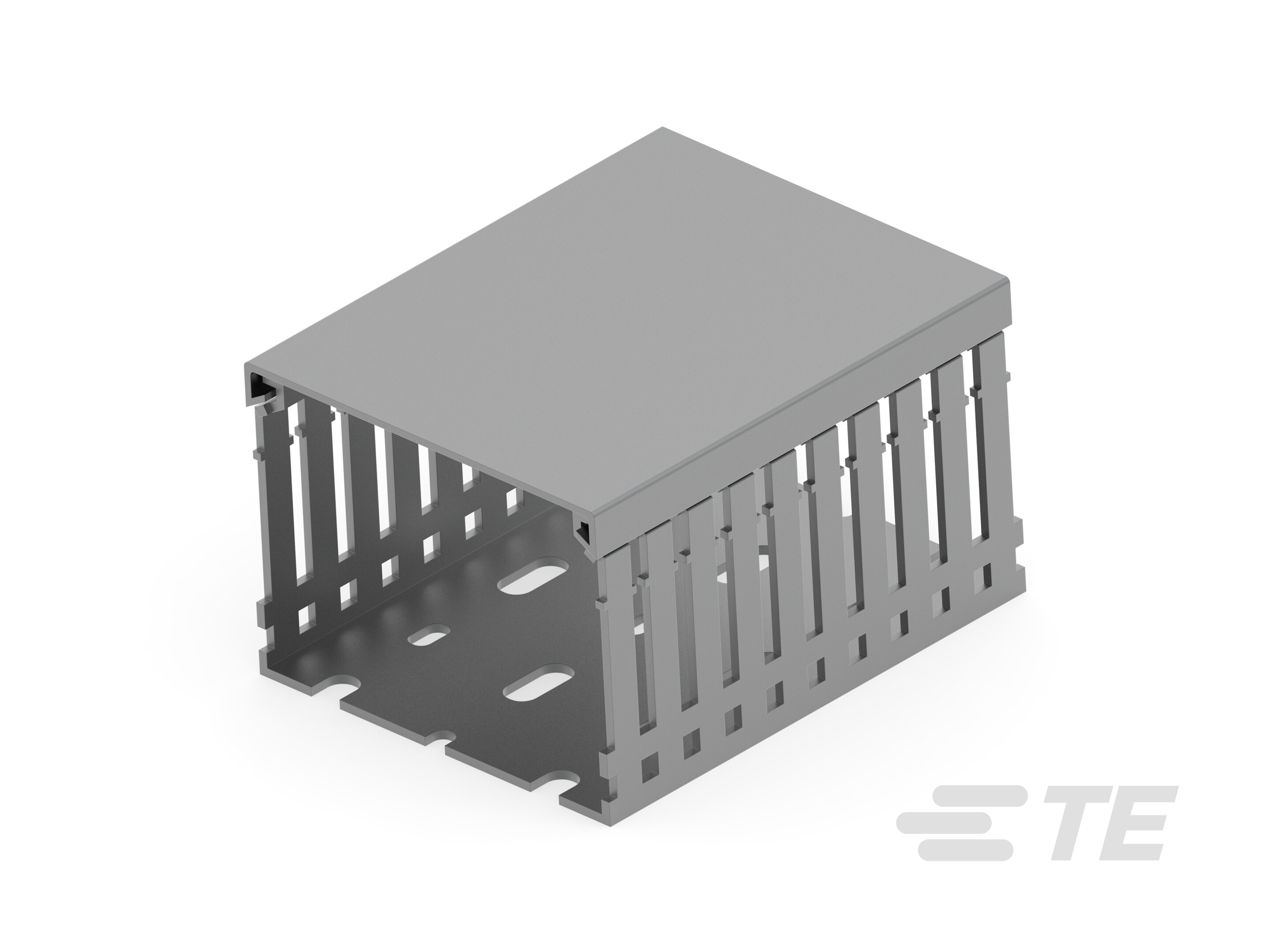

Wiring Duct, PVC, Height 60 mm [2.362 in], Length 2000 mm [78.74 in], Width 80 mm [3.15 in], -5 – 60 °C [23 – 140 °F]
1SET411022R0000
Wiring Duct, PVC, Height 60 mm [2.362 in], Length 2000 mm [78.74 in], Width 80 mm [3.15 in], -5 – 60 °C [23 – 140 °F]
-
- ENTRELEC
- TE Internal #: 1SET411022R0000
- TE Internal Description: WD-1-DP-GR8060
- All PVC Wiring Duct: 2 meters, Gray Color, Flame-Retardant (23)
-
Operating Temperature Range : -5 – 60 °C [ 23 – 140 °F ]
-
Primary Product Color : Gray
-
Primary Product Material : PVC
-
Product Width : 80 mm [ 3.15 in ]
-
Product Height : 60 mm [ 2.362 in ]
Documents
Product Drawings
- WD-1-DP-GR8060 FRE_CD_1SNP300190-0402_A1.pdf French
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1SET411022R0000_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1SET411022R0000_A.2d_dxf.zip English
- ENG_CVM_CVM_1SET411022R0000_A.3d_igs.zip English
- ENG_CVM_CVM_1SET411022R0000_A.3d_stp.zip English
Datasheets & Catalog Pages
- Infographic - entrelec ews-linecard ENG_CS_entrelec-ews-linecard-IG_2203.pdf English
- Datasheet - Entrelec Electrical-Solutions RUS_DS_entrelec-electrical-solutions-ds-ru_0122.pdf
- Datasheet - ENTRELEC-wiring-duct-DS ENG_DS_ENTRELEC-wiring-duct-DS_2308.pdf English
- Essential Entrelec Terminal Blocks FRE_DS_essential-entrelec-terminal-blocks_2209.pdf French
- Essential Entrelec Terminal Blocks ENG_DS_essential-entrelec-terminal-blocks_2209.pdf English
- Essential Entrelec Terminal Blocks JPN_DS_essential-entrelec-terminal-blocks_2209.pdf Japanese
Agency Approvals
- Agency Approval Document ENG_AAD_1SND225334C1001-TE_A1.pdf English
- UL ENG_AAD_E522540-cURus_A.pdf English
- CE Declaration of Conformity ENG_AAD_1SND225117U1000-TE_A.pdf English
