Please review product documents or contact us for the latest agency approval information.

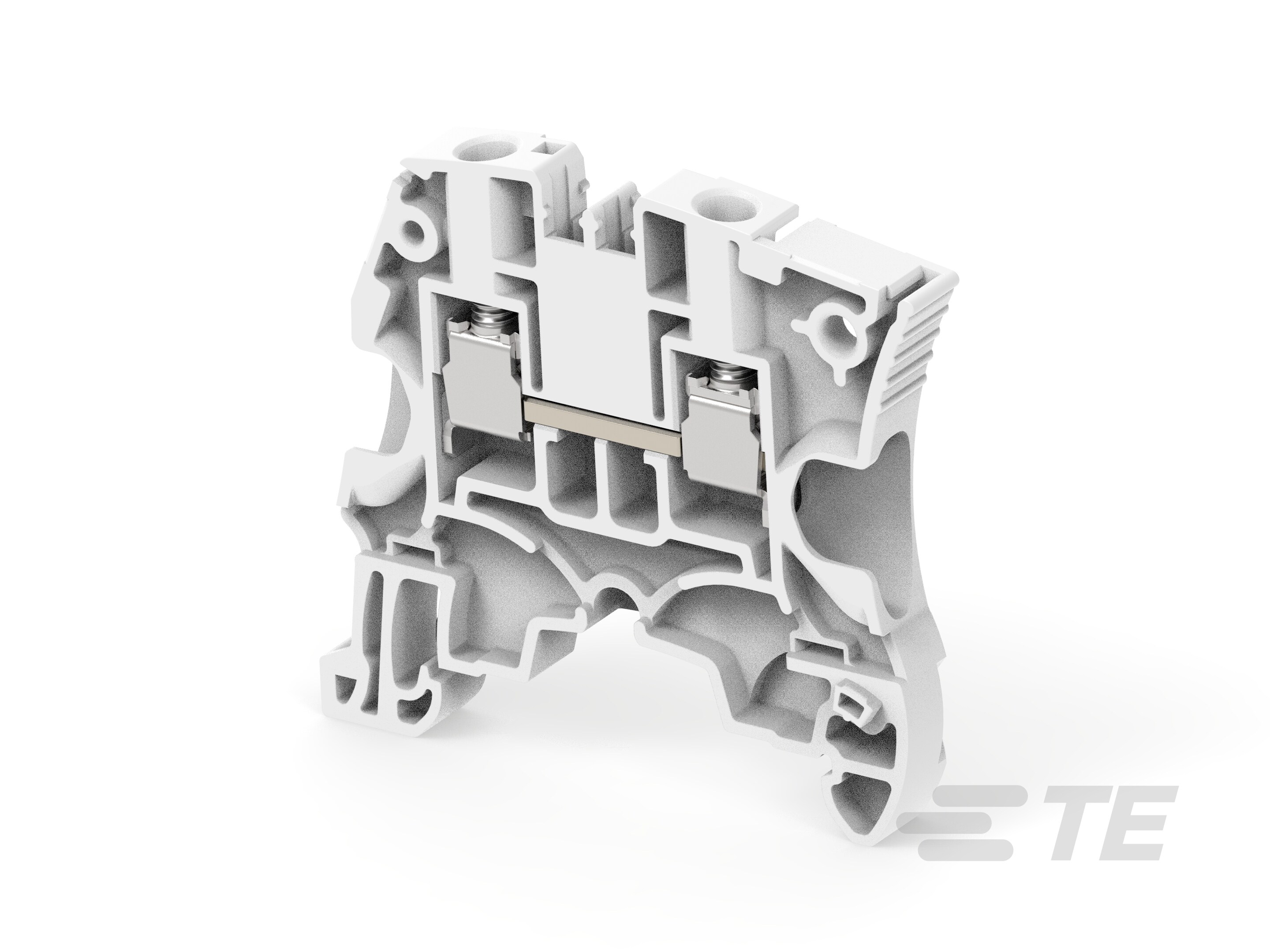

• Modular Terminal Block Product Type : Screw Clamp Terminal Block

• Number of Circuits : 1

• Gauge Type : A4-B3

• Number of Levels : 1

• Block Function : Feed-Through

• Number of Positions : 2

• Short-Time Withstanding Current Rating @ 1s (A): 720

• Voltage Rating (CSA) (V): 600

• Voltage Rating (IEC) (V): 1000

• Dielectric Withstanding Voltage (Max) (V): 2200

• Current Rating (CSA) (A): 30

• Current Rating (UL) (A): 30

• Current Rating (IEC) (A): 41

• Impulse Withstanding Voltage Rating (IEC) (V): 8000

• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 600

• Power Loss (W): 1.3

• Operating Voltage (VAC): 600

• Product Weight : 10.6 g [ .417 oz ]

• Primary Product Color : Gray

• Termination Method to Wire & Cable : Screw Terminal

• DIN Rail Mounting Type : TH35-15, TH35-7.5

• Connector Mounting Type : DIN Rail

• Housing Material : Polyamide

• Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (AWG): 24 – 10

• Product Height : 53 mm [ 2.087 in ]

• Product Length : 47.3 mm [ 1.86 in ]

• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²): .22 – 4

• Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²): .2 – 6

• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG): 24 – 12

• Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²): .22 – 4

• Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG): 24 – 12

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG): 24 – 10

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²): .2 – 6

• Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (AWG): 24 – 14

• Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²): .2 – 2.5

• Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG): 24 – 14

• Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²): .22 – 2.5

• Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG): 24 – 14

• Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²): .2 – 2.5

• Wire Stripping Length : 10.5 mm [ .413 in ]

• Tool Size : 4 mm [ .157 in ]

• Product Depth : 47.3 mm [ 1.862 in ]

• Product Spacing : 6 mm [ .236 in ]

• Wire Size (AWG): 10

• Wire Size (mm²): 6

• Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]

• Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

• Circuit Application : Power & Signal
