Please review product documents or contact us for the latest agency approval information.

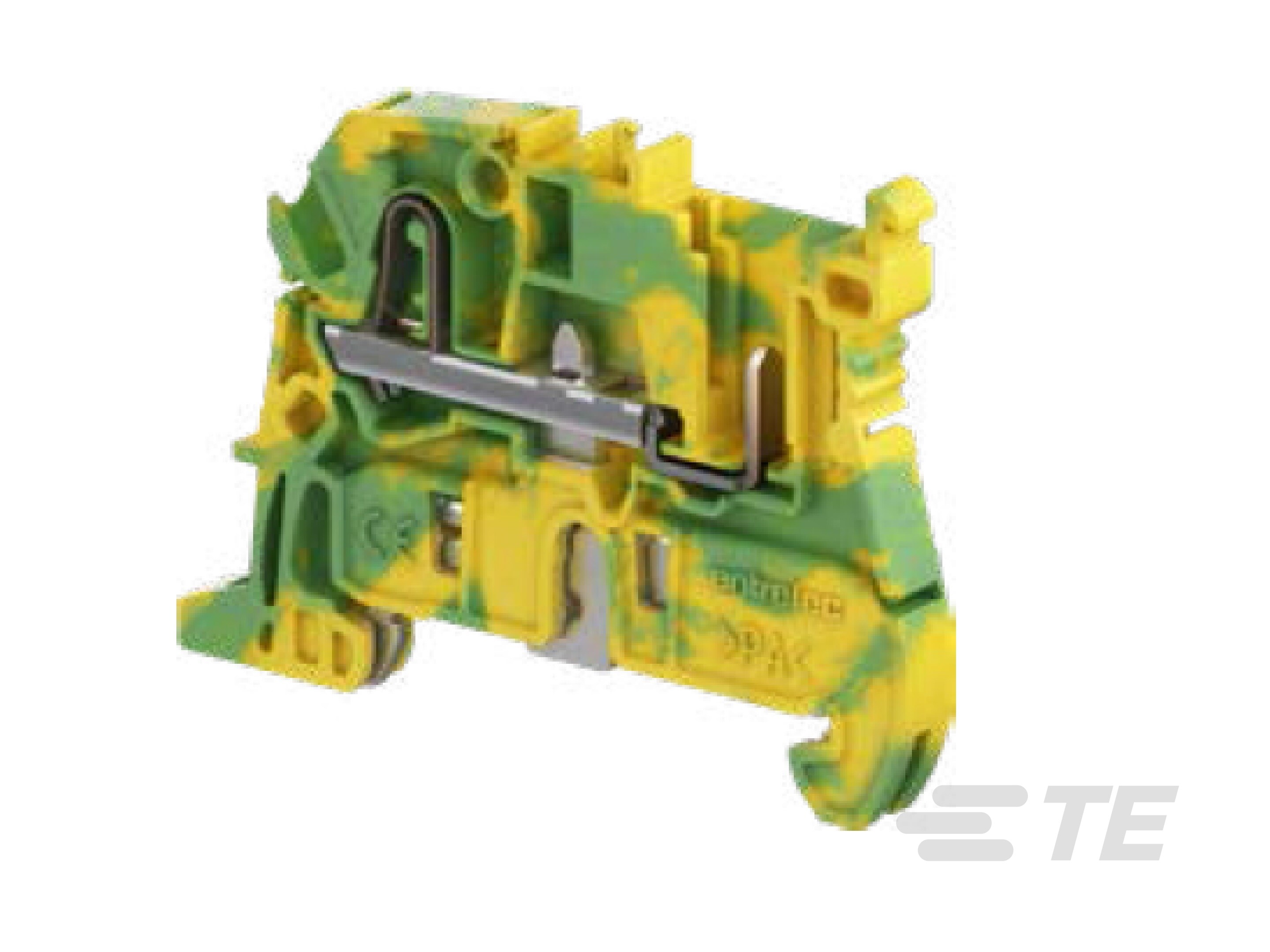

• Modular Terminal Block Product Type : Screw Clamp Terminal Block

• Number of Circuits : 1

• Number of Poles : 2

• Gauge Type : A2 / 2.3 mm Dia.

• Number of Levels : 1

• Block Function : Ground

• Number of Positions : 2

• Short-Time Withstanding Current Rating @ 1s (A): 300

• Dielectric Withstanding Voltage (Max) (V): 2200

• Impulse Withstanding Voltage Rating (IEC) (V): 8000

• Product Weight : 9.62 g [ .339 oz ]

• Primary Product Color : Green & Yellow

• Termination Method to Wire & Cable : Push-in

• DIN Rail Mounting Type : TH35-15, TH35-7.5

• Connector Mounting Type : DIN Rail

• Housing Material : Polyamide 6.6

• Product Height (mm): 56.1

• Product Length : 35.5 mm [ 1.38 in ]

• Product Width : 5.2 mm [ .204 in ]

• Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (AWG): 26 – 14

• Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²): .22 – 2.5

• Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (AWG): 26 – 14

• Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (mm²): .22 – 2.5

• Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (mm²): .22 – 2.5

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (AWG): 26 – 12

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (mm²): .2 – 4

• Wire Stripping Length : 11 mm [ .433 in ]

• Tool Size : 3.5 mm [ .138 in ]

• Product Depth : 35.5 mm [ 1.38 in ]

• Product Spacing : 5.2 mm [ .204 in ]

• Wire Size (AWG): 12

• Wire Size (mm²): 2.5

• Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]

• Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

• Circuit Application : Signal
