Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

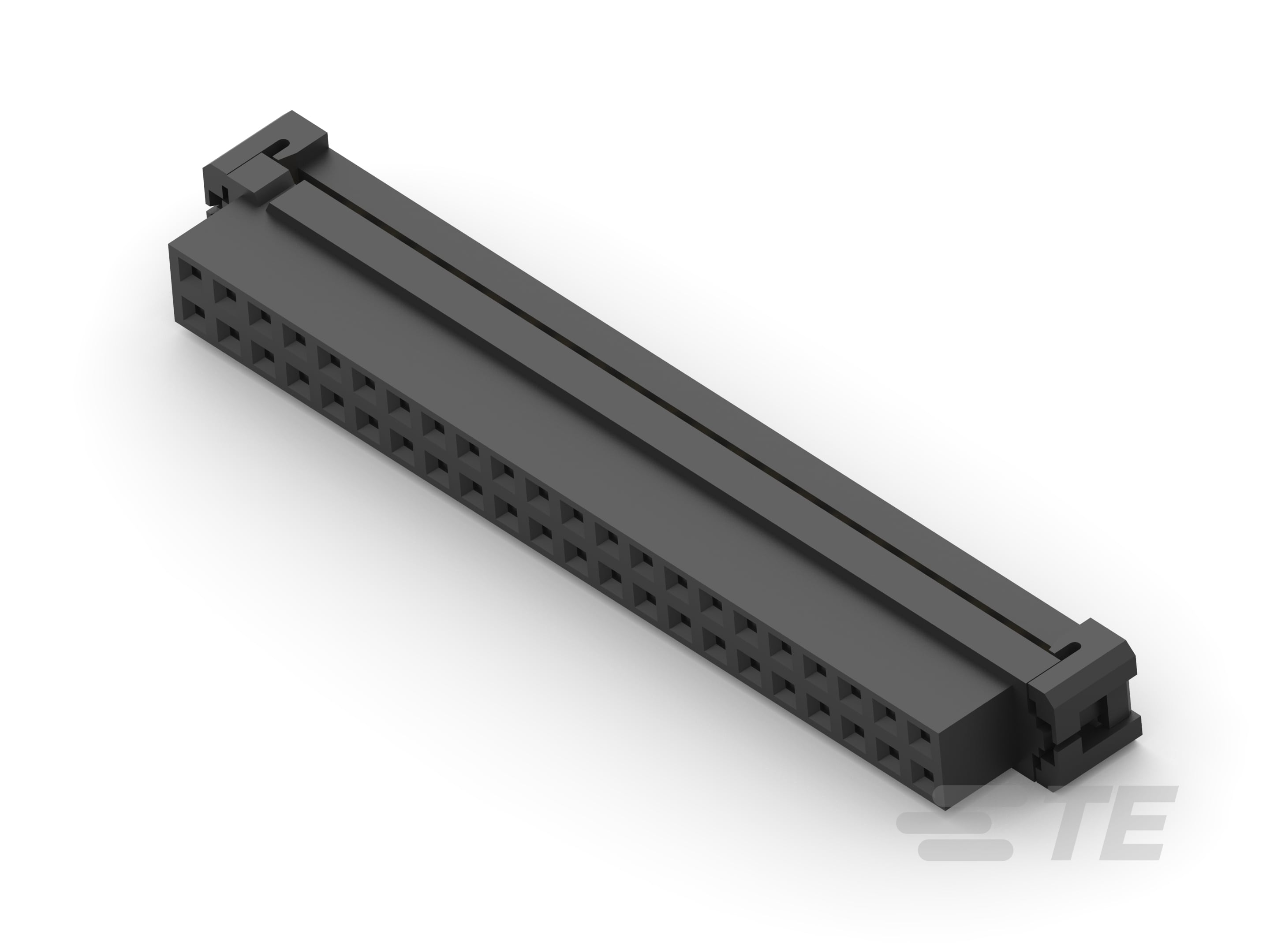

• Ribbon Cable Connector Header Type : Shrouded

• Connector Product Type : Connector Assembly

• Connector System : Wire-to-Board

• Connector & Housing Type : Receptacle

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 44

• Number of Rows : 2

• Insulation Resistance (MΩ): 5000

• Operating Voltage (VAC): 125

• Primary Product Color : Black

• Daisy Chain : Without

• Connector Profile : Low

• Contact Type : Socket

• Wire Contact Termination Area Plating Thickness : .127 µm [ 5 µin ]

• PCB Contact Termination Area Plating Material : Tin-Lead

• Contact Base Material : Phosphor Bronze

• Contact Shape & Form : Single Beam

• Mating Square Post Dimension : .5 mm [ .02 in ]

• Wire Contact Termination Area Plating Material : Gold

• Contact Mating Area Plating Material Thickness : .76 µm [ 29.92 µin ]

• Mating Pin Diameter : .5 mm [ .02 in ]

• Contact Current Rating (Max) (A): .5

• Termination Method to Wire & Cable : Insulation Displacement (IDC)

• Mating Alignment : With

• Mating Alignment Type : Polarization

• Mating Retention : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : Polyester

• Centerline (Pitch) : 2 mm [ .079 in ]

• Wire Size (AWG): 28

• Connector Length : 49.17 mm [ 1.936 in ]

• Wire Size (mm²): .08

• Connector Height : 8.48 mm [ .334 in ]

• Wire Size (CMA): 158

• Connector Width : 5.16 mm [ .203 in ]

• Compatible Insulation Diameter Range : .71 – .87 mm [ .028 – .034 in ]

• Row-to-Row Spacing : 2 mm [ .1 in ]

• Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

• Circuit Application : Signal

• Compatible With Approved Standards Products : CSA LR7189, UL E28476

• UL Flammability Rating : UL 94V-0

• UL Rating : Recognized

• Compatible With Agency/Standards Products : CSA, UL
