Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

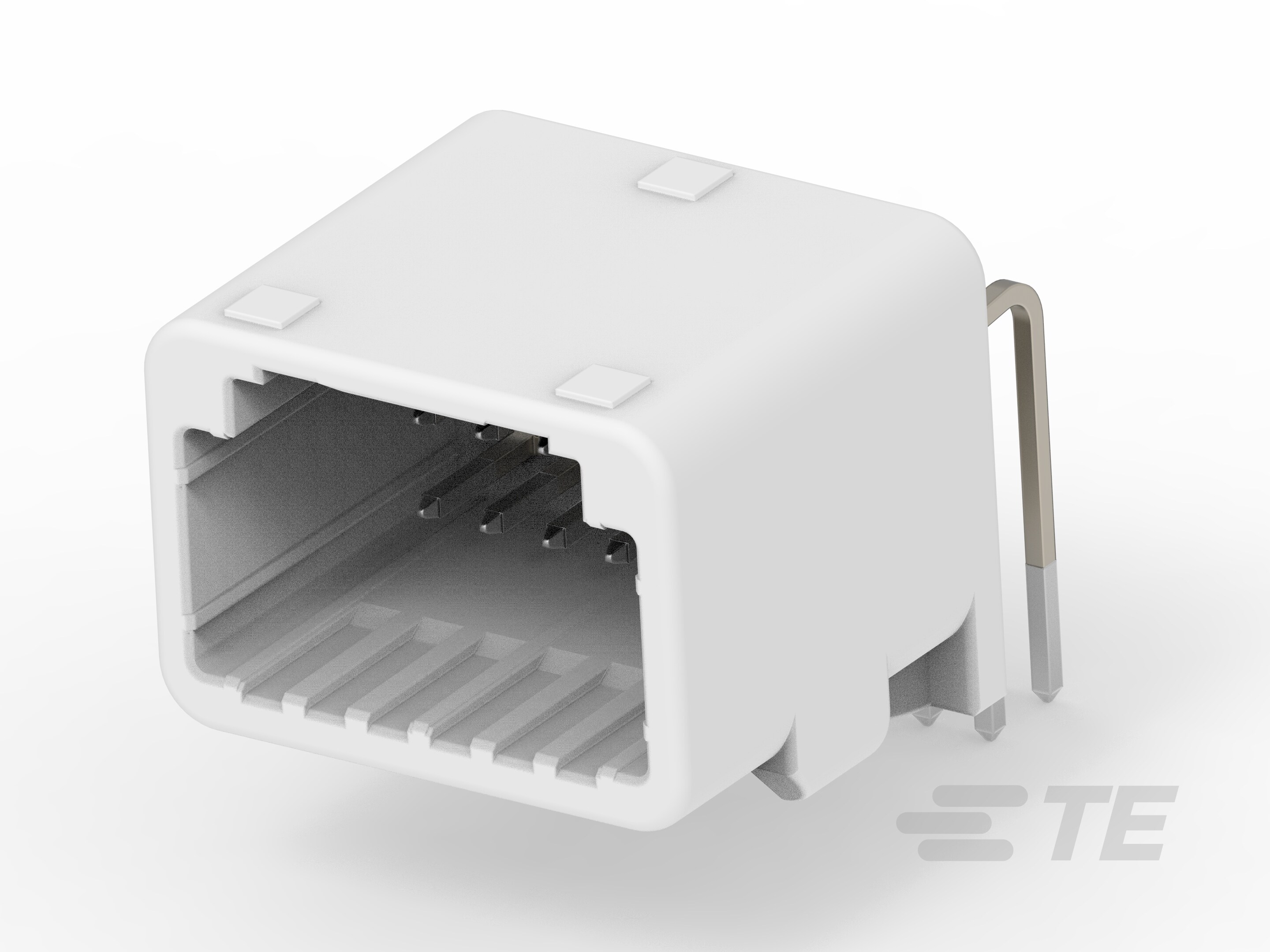

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 1

• Number of Signal Positions : 12

• PCB Mount Orientation : Horizontal

• Number of Positions : 12

• Number of Rows : 2

• Mating Tab Thickness : .64 mm [ .025 in ]

• Mating Tab Width : .64 mm [ .025 in ]

• Contact Size : .64mm

• Contact Mating Area Plating Material : Tin

• Contact Type : Tab

• Mating Retention : With

• Mounting Holes : With

• Mating Retention Type : Locking Interface

• Panel Mount Feature : Without

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Mating Alignment : With

• Shielded : No

• Circuit Application : Signal

• Operating Temperature (Max) (°C): 80, 105, 90, 100, 85, 65, 75, 70

• Operating Temperature (Max) (°F): 212

• Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

• Packaging Quantity : 23

• Packaging Method : Tube

• Connector Length : 24.47 mm [ .963 in ]

• Profile Height from PCB : 15.5 mm [ .61 in ]

• PCB Thickness (Recommended) : 1.2 – 1.6 mm [ .047 – .063 in ]

• Connector Width : 18.6 mm [ .732 in ]

• Nominal Voltage Architecture (V): 12

• Voltage Rating (Max) (VDC): 12

• Operating Voltage (VDC): 12

• Primary Product Color : Natural

• Termination Method to PCB : Through Hole - Solder

• Centerline (Pitch) : 2.2 mm [ .087 in ]
