Please review product documents or contact us for the latest agency approval information.

• Solder Process : Wave Solder

• Current Type : DC

• Coil Magnetic System : Monostable

• Coil Special Features : UL Coil Insulation Class F

• Contact Number of Poles : 1

• Contact Arrangement : 1 Form A SPST-NO

• Insulation Initial Resistance (MΩ): 1000

• Coil Resistance (Ω): 25

• Contact Switching Load (Min) : 1000mA @ 5V

• Contact Switching Voltage (Max) (VAC): 277

• Coil Current (A): .2

• Insulation Initial Dielectric Between Adjacent Contacts (Vrms): 1500

• Insulation Initial Dielectric Between Open Contacts (Vrms): 1500

• Contact Limiting Breaking Current (A): 30

• Contact Limiting Continuous Current (A): 30

• Contact Limiting Making Current (A): 30

• Contact Limiting Short-Time Current (A): 30

• Contact Current Rating (A): 30

• Coil Voltage Rating (VDC): 5

• Contact Voltage Rating (VAC): 277

• Coil Power Rating DC (W): 1

• Insulation Initial Dielectric Between Contacts & Coil (Vrms): 2500

• Primary Product Color : Black

• Product Weight : 26 g [ .918 oz ]

• Enclosure Type : Flux Resistant Automatic Soldering & Washable

• Environmental Category of Protection : RTIII

• Operating Temperature Range : -55 – 85 °C [ -67 – 185 °F ]

• Environmental Ambient Temperature (Max) : 85 °C [ 185 °F ]

• Environmental Ambient Temperature Class (°C): 70 – 85

• Contact Current Class (A): 16

• Coil Power Rating Class (W): .8 – 1

• Height Class (Mechanical) (mm): 25 – 30

• Length Class (Mechanical) (mm): 30 – 35

• Width Class (Mechanical) (mm): 25 – 30

• EU RoHS Compliance : Compliant with Exemptions

• EU ELV Compliance : Compliant

• Packaging Method : Box & Tray, Bundle

• Product Height : 20.4 mm [ .803 in ]

• Product Length : 32.51 mm [ 1.28 in ]

• Product Width : 27.43 mm [ 1.08 in ]

• Insulation Creepage Between Contact & Coil : 6.36 mm [ .25 in ]

• Insulation Clearance Between Contact & Coil : 3.18 mm [ .125 in ]

• Contact Material : AgCdO

• Contact Plating Material : AgCdO

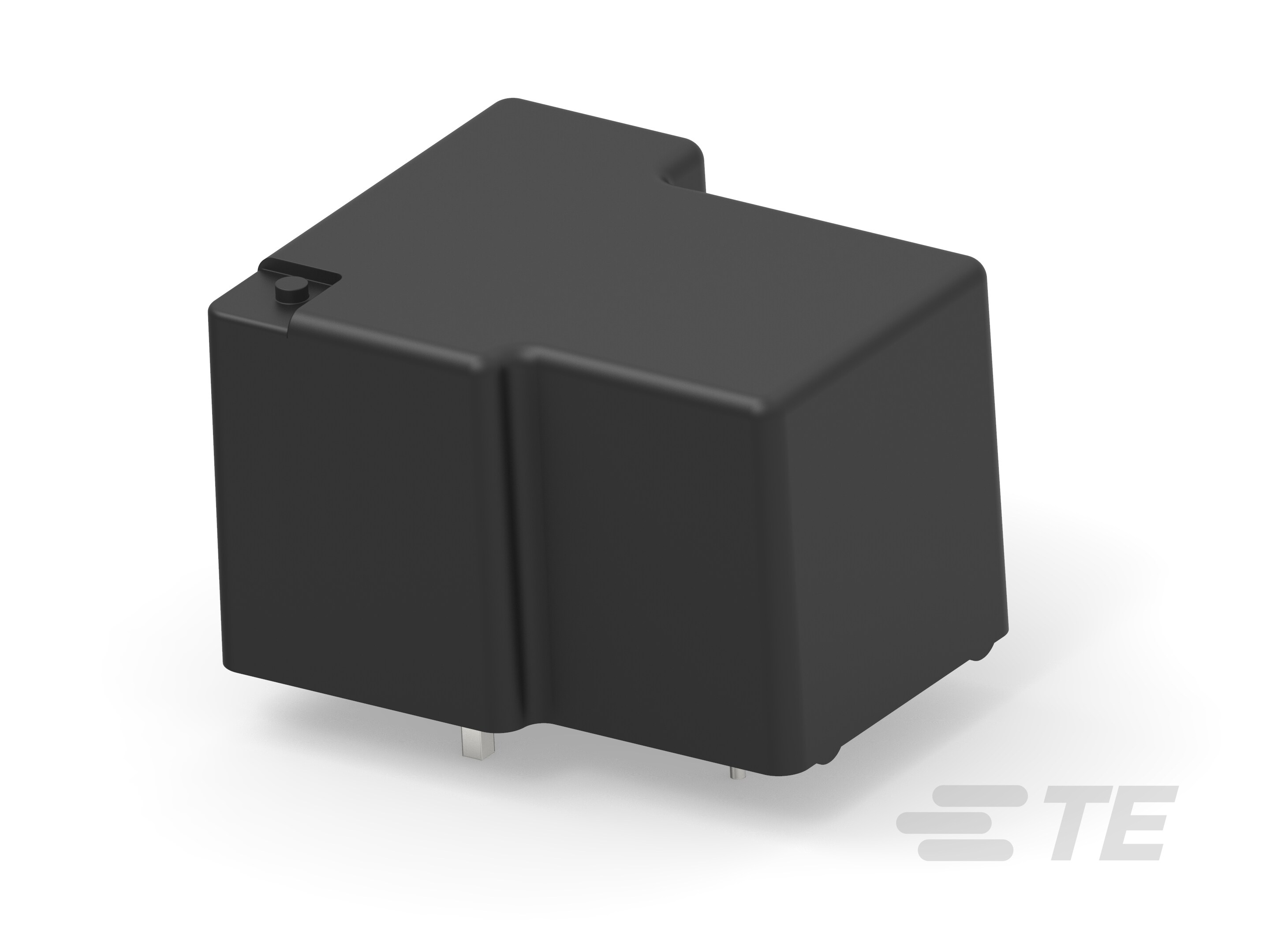

• Relay & Contactor Type : General Purpose Power Relay

• Main Termination & Connection Type : Solder Pins

• Coil Termination & Connection Type : Solder Pins
