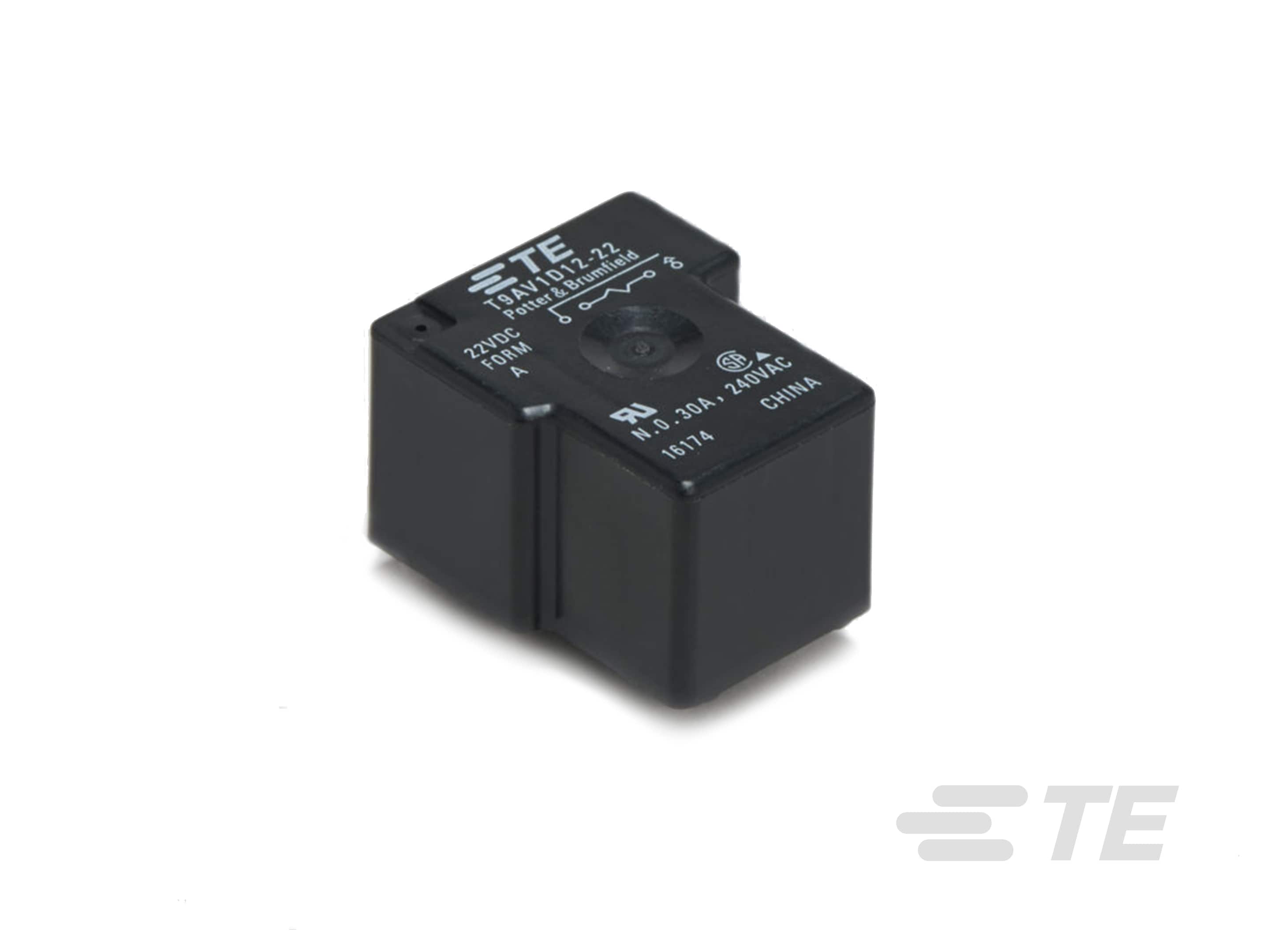

PCB Power Relay: 30 Amp, Monostable DC

Please review product documents or contact us for the latest agency approval information.

• Coil Power Rating Class (W) 1, .8 – 1

• Coil Power Rating Class (VA) .5 – 1

• Environmental Ambient Temperature Class (°C) 70 – 85

• Contact Current Class (A) 20 – 30, 16

• Height Class (Mechanical) (mm) 20 – 25, 25 – 30

• Length Class (Mechanical) (mm) 30 – 35

• Width Class (Mechanical) (mm) 25 – 30

• EU RoHS Compliance  Compliant, Compliant with Exemptions

• EU ELV Compliance  Compliant

• Contact Switching Load (Min)  1A @ 5V, 1000mA @ 5V

• Contact Limiting Continuous Current (A) 20, 30, 15

• Contact Limiting Short-Time Current (A) 15, 30, 20

• Contact Switching Voltage (Max) (VAC) 277

• Contact Switching Voltage (Max) (VDC) 30

• Contact Limiting Breaking Current (A) 30, 15, 20

• Insulation Initial Dielectric Between Adjacent Contacts (Vrms) 1500

• Coil Resistance (Ω) 380, 324, 576, 81, 2560, 12100, 25, 2304, 155, 660, 225, 144

• Coil Current (A) .067, .009, .083, .2, .056, .076, .042, .037, .049, .021, .111, .019

• Insulation Initial Resistance (MΩ) 1000

• Contact Limiting Making Current (A) 20, 30, 15

• Insulation Initial Dielectric Between Open Contacts (Vrms) 1500

• Contact Current Rating (A) 20, 15, 30

• Coil Voltage Rating (VDC) 18, 12, 9, 48, 24, 15, 110, 5

• Contact Voltage Rating (VAC) 277

• Contact Voltage Rating (VDC) 30

• Coil Power Rating DC (W) 1, .9

• Insulation Initial Dielectric Between Contacts & Coil (Vrms) 2500

• Packaging Method  Box & Tray, Package, Bundle, Tray

• Contact Material  AgCdO, AgSnOInO

• Contact Plating Material  AgSnO, AgCdO

• Insulation Creepage Between Contact & Coil  6.36 mm [ .25 in ]

• Product Height (mm) 20.4, 27.94

• Product Height (in) .803, 1.1

• Product Length (mm) 32.51, 50.29

• Product Length (in) 1.97, 1.28

• Product Width  27.43 mm [ 1.08 in ]

• Insulation Clearance Between Contact & Coil  3.18 mm [ .125 in ]

• Environmental Category of Protection  RTI, RTII, RTIII

• Operating Temperature Range  -55 – 85 °C [ -67 – 185 °F ]

• Environmental Ambient Temperature (Max)  85 °C [ 185 °F ]

• Solder Process  Wave Solder

• Current Type  DC

• Coil Magnetic System  Monostable

• Primary Product Color  Black

• Product Weight (g) 26, 33

• Product Weight (oz) 1.164, .918

• Enclosure Type  Flux Resistant Automatic Soldering & Washable, Dust Protected, Flux Resistant Automatic Soldering

• Product Mounting Feature Type  Flange with Mounting Slots

• Product Mount Type  Panel Mount, Board Mount

• Coil Special Features  UL Coil Insulation Class F

• Contact Number of Poles  1

• Contact Arrangement  1 Form B SPST-NC, 1 Form A SPST-NO, 1 Form C SPDT-CO

• Relay & Contactor Type  General Purpose Power Relay

• Main Termination & Connection Type  Quick Connect Terminals, Solder Pins

• Coil Termination & Connection Type  Quick Connect Terminals, Solder Pins
