Please review product documents or contact us for the latest agency approval information.

• Solder Process : Wave Solder

• Current Type : DC

• Coil Magnetic System : Monostable

• Coil Special Features : UL Coil Insulation Class F

• Contact Number of Poles : 1

• Contact Arrangement : 1 Form A SPST-NO

• Coil Resistance (Ω): 3390

• Contact Switching Load (Min) : 100mA @ 12V

• Contact Switching Voltage (Max) (VAC): 400

• Contact Limiting Breaking Current (A): 6

• Contact Limiting Continuous Current (A): 10

• Contact Limiting Making Current (A): 10

• Contact Limiting Short-Time Current (A): 6

• Contact Current Rating (A): 6

• Coil Voltage Rating (VDC): 24

• Contact Voltage Rating (VAC): 250

• Coil Power Rating DC (W): .17

• Insulation Initial Dielectric Between Contacts & Coil (Vrms): 1000

• Product Weight : 6 g [ .2116 oz ]

• Enclosure Type : Flux Resistant Automatic Soldering & Washable

• Environmental Category of Protection : RTIII

• Environmental Ambient Temperature (Max) : 85 °C [ 185 °F ]

• Environmental Ambient Temperature Class (°C): 70 – 85

• Contact Current Class (A): 16

• Coil Power Rating Class (W): .15 – .2

• Length Class (Mechanical) (mm): 25 – 30

• Width Class (Mechanical) (mm): 0 – 6

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Packaging Method : Tube, Box & Tube

• Product Height : 15 mm [ .59 in ]

• Product Length : 28 mm [ 1.1 in ]

• Product Width : 5 mm [ .196 in ]

• Insulation Creepage Between Contact & Coil : 8 mm [ .315 in ]

• Contact Material : AgSnO2

• Contact Plating Material : Gold

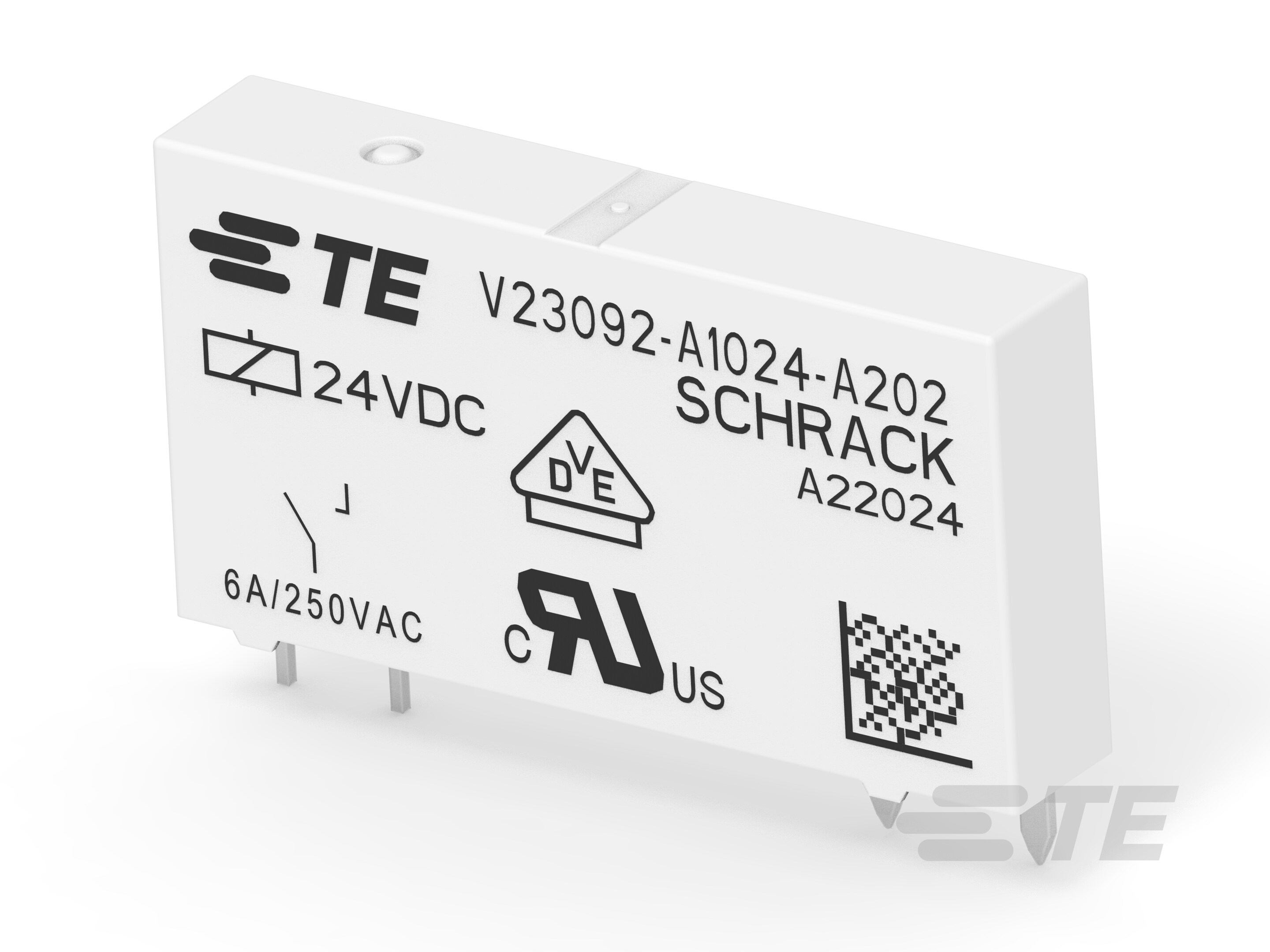

• Relay & Contactor Type : General Purpose Power Relay

• Main Termination & Connection Type : Solder Pins

• Coil Termination & Connection Type : Solder Pins
