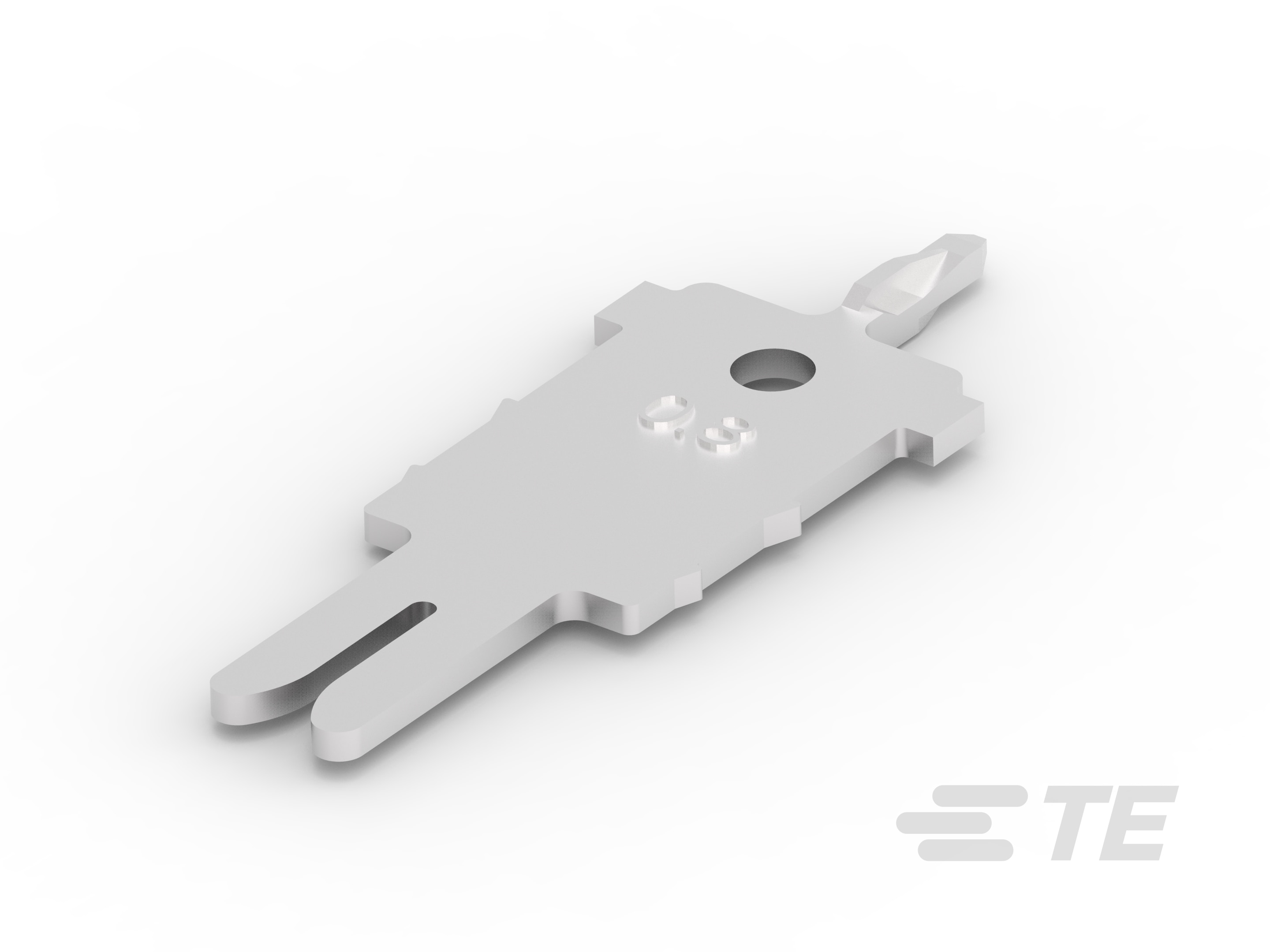

Tab Terminal, Mating Tab Width 3.45 mm [.135 in], Tab Thickness .64 mm [.025 in], Tin (Sn) Interface Plating, Press Fit Pin
2-1670195-3
Tab Terminal, Mating Tab Width 3.45 mm [.135 in], Tab Thickness .64 mm [.025 in], Tin (Sn) Interface Plating, Press Fit Pin
-
- Press Fit Pin
- TE Internal #: 2-1670195-3
- TE Internal Description: AP 0,63 X 0,8
- All PRESS FIT PIN TERMINALS (64)
-
Terminal Type : Tab
-
Mating Tab Width : 3.45 mm [ .135 in ]
-
Mating Tab Thickness : .64 mm [ .025 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
-
Sealable : No
Documents
Product Drawings
- TERMINAL WITH ACTION PIN Klemme mit ACTION PIN ENG_CD_1670195_A4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-1670195-3_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2-1670195-3_A.2d_dxf.zip English
- ENG_CVM_CVM_2-1670195-3_A.3d_igs.zip English
- ENG_CVM_CVM_2-1670195-3_A.3d_stp.zip English
Datasheets & Catalog Pages
- Press-Fit Connections for the Automotive Industry ENG_CS_1654403-1_0616.pdf English
Product Specifications
- Product Specification ENG_SS_108-18643_A2.tif English
- ENG_SS_108-18643_A2.pdf English
