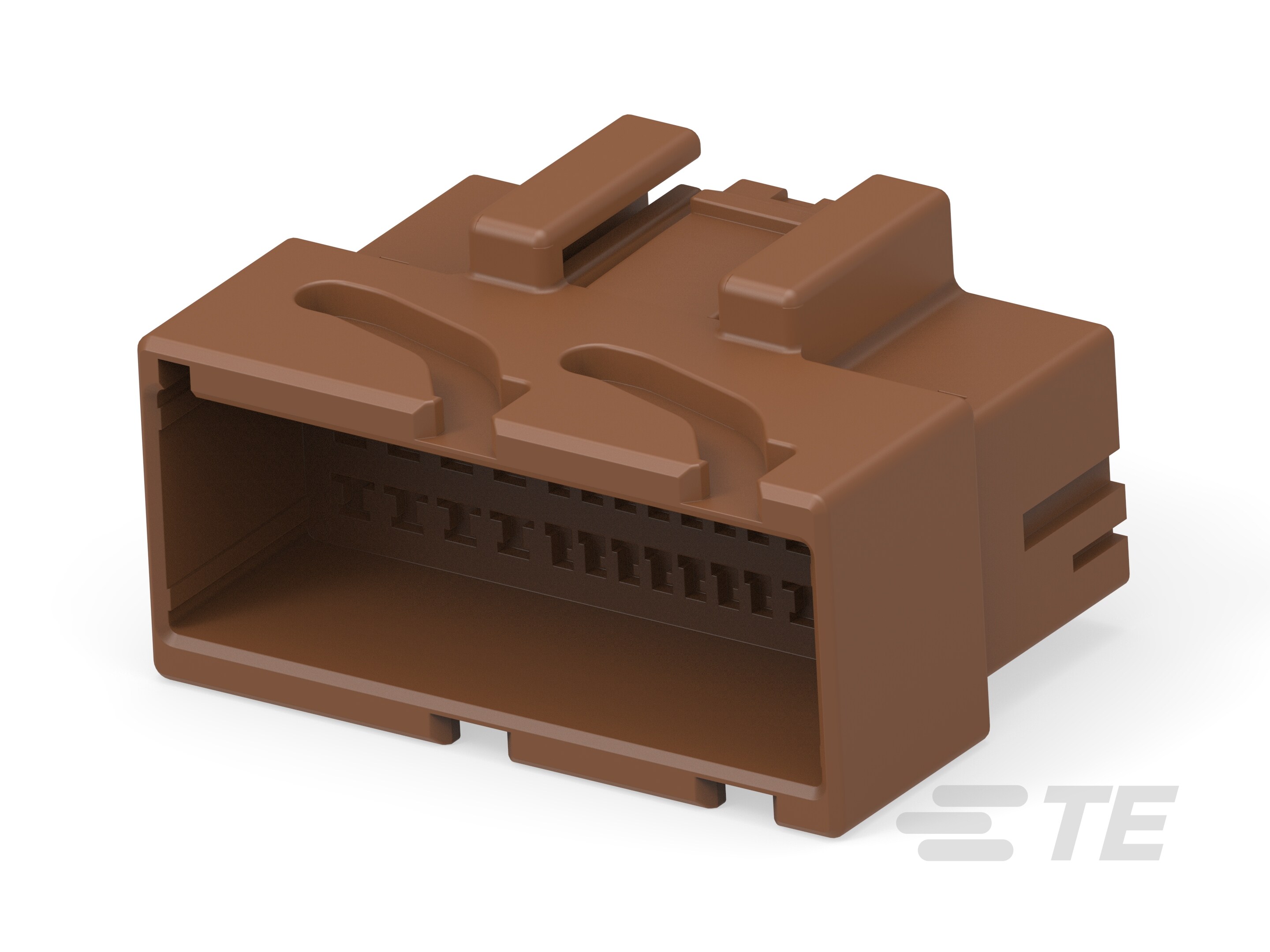

42 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.5 mm / 4 mm [.09 in / .15 in] Centerline, Brown, Multilock Connector System
2-1743095-4
42 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.5 mm / 4 mm [.09 in / .15 in] Centerline, Brown, Multilock Connector System
-
- Multilock Connector System
- TE Internal #: 2-1743095-4
- TE Internal Description: LIF HYB 42P CAP ASSY BRN
- All MULTILOCK, CONNECTOR HOUSING (125)
-
Number of Positions : 42
-
Connector & Housing Type : Housing for Male Terminals
-
Mating Tab Width (mm): 1, 2.3
-
Mating Tab Width (in): .04, .09
-
Connector System : Wire-to-Wire
-
Centerline (Pitch) (mm): 2.5, 4
-
Centerline (Pitch) (in): .09, .15
Documents
Product Drawings
- CAP ASSEMBLY CONNECTOR FOR HYB 42POS ENG_CD_1743095_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-1743095-4_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2-1743095-4_A.2d_dxf.zip English
- ENG_CVM_CVM_2-1743095-4_A.3d_igs.zip English
- ENG_CVM_CVM_2-1743095-4_A.3d_stp.zip English
Datasheets & Catalog Pages
- 040 090 42P CAP ASSY ENG_DS_2-1743095-4_A.pdf English
