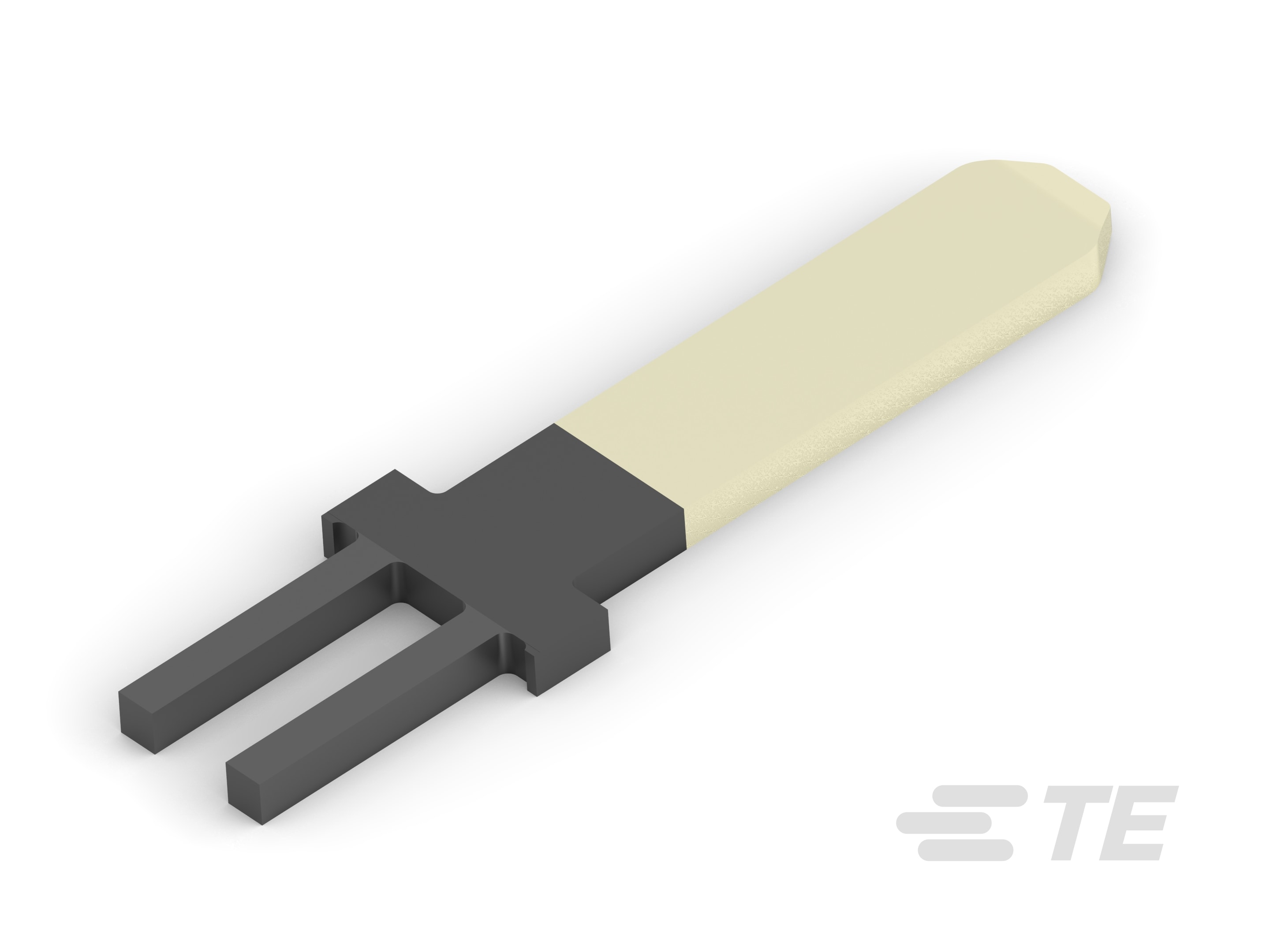

Tab Terminal, 2.3 mm [.091 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness, Terminates To Printed Circuit Board, Press Fit Pin
2-1801696-1
Tab Terminal, 2.3 mm [.091 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness, Terminates To Printed Circuit Board, Press Fit Pin
-
- Press Fit Pin
- TE Internal #: 2-1801696-1
- TE Internal Description: TAB 2.3X0.64 NS WITH MULTISPRING PLTD
- All PRESS FIT PIN TERMINALS (64)
-
Terminal Type : Tab
-
Mating Tab Width : 2.3 mm [ .091 in ]
-
Interface Plating : Tin (Sn)
-
Sealable : No
-
Mating Tab Thickness : .64 mm [ .025 in ]
Documents
Product Drawings
- TAB 2.3 x 0.64 NS WITH MULTISPRING ENG_CD_1801696_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-1801696-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2-1801696-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2-1801696-1_A.3d_igs.zip English
- ENG_CVM_CVM_2-1801696-1_A.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-90800_E.pdf English
