2-1871935-9

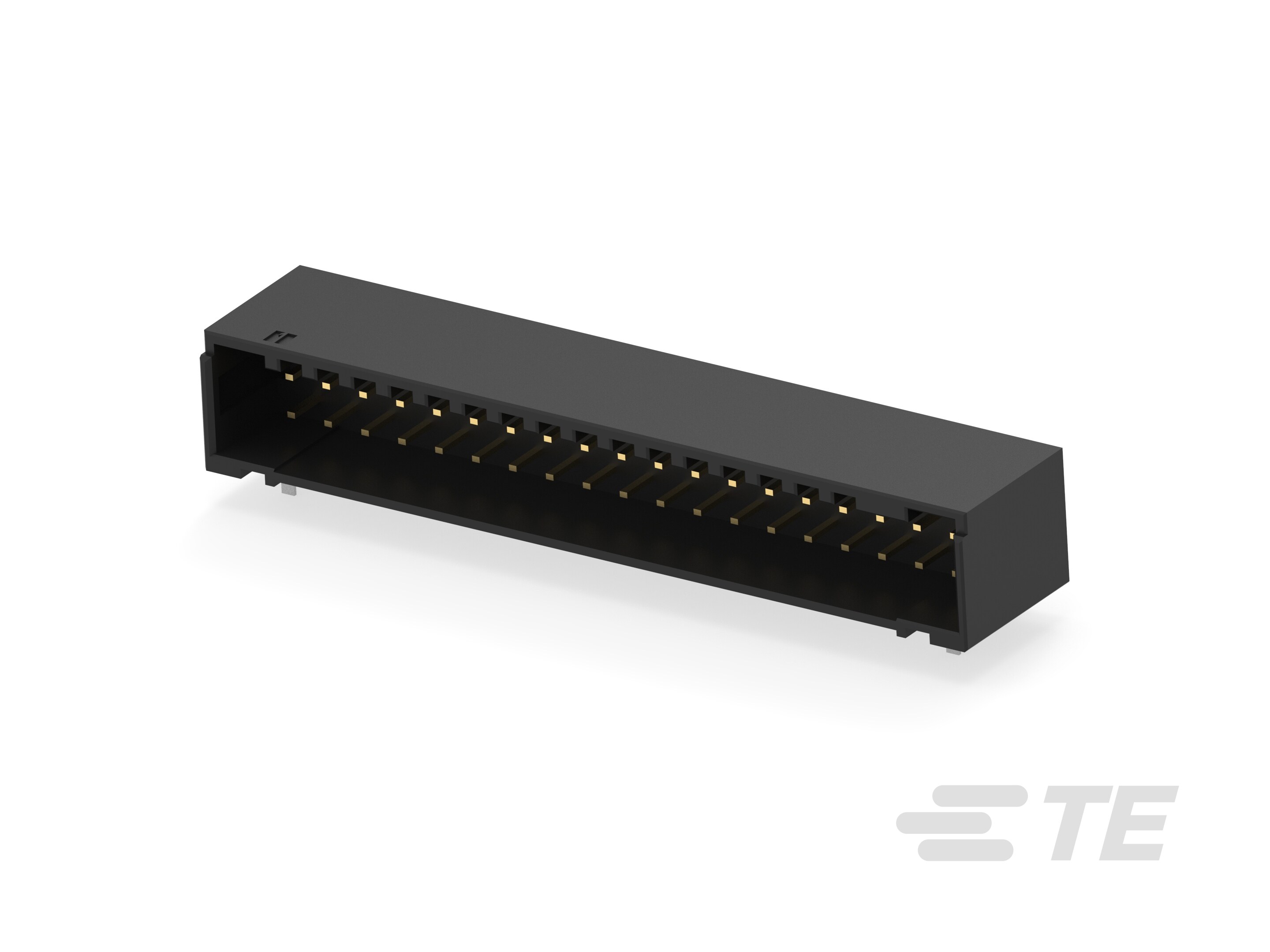

PCB Mount Header, Horizontal, Wire-to-Board, 38 Position, 3.5 mm [.137 in] Centerline, Fully Shrouded, Gold, Dynamic 1000 Series
2-1871935-9
PCB Mount Header, Horizontal, Wire-to-Board, 38 Position, 3.5 mm [.137 in] Centerline, Fully Shrouded, Gold, Dynamic 1000 Series
-
- Dynamic Series
- Dynamic 1000 Series
- TE Internal #: 2-1871935-9
- TE Internal Description: DYNAMIC 1900D HDR ASSY H-TYPE 38P
- All DYNAMIC 1900D HDR ASSY (9)
-
PCB Connector Assembly Type : PCB Mount Header
-
PCB Mount Orientation : Horizontal
-
Connector System : Wire-to-Board
-
Number of Positions : 38
-
Number of Rows : 2
