Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

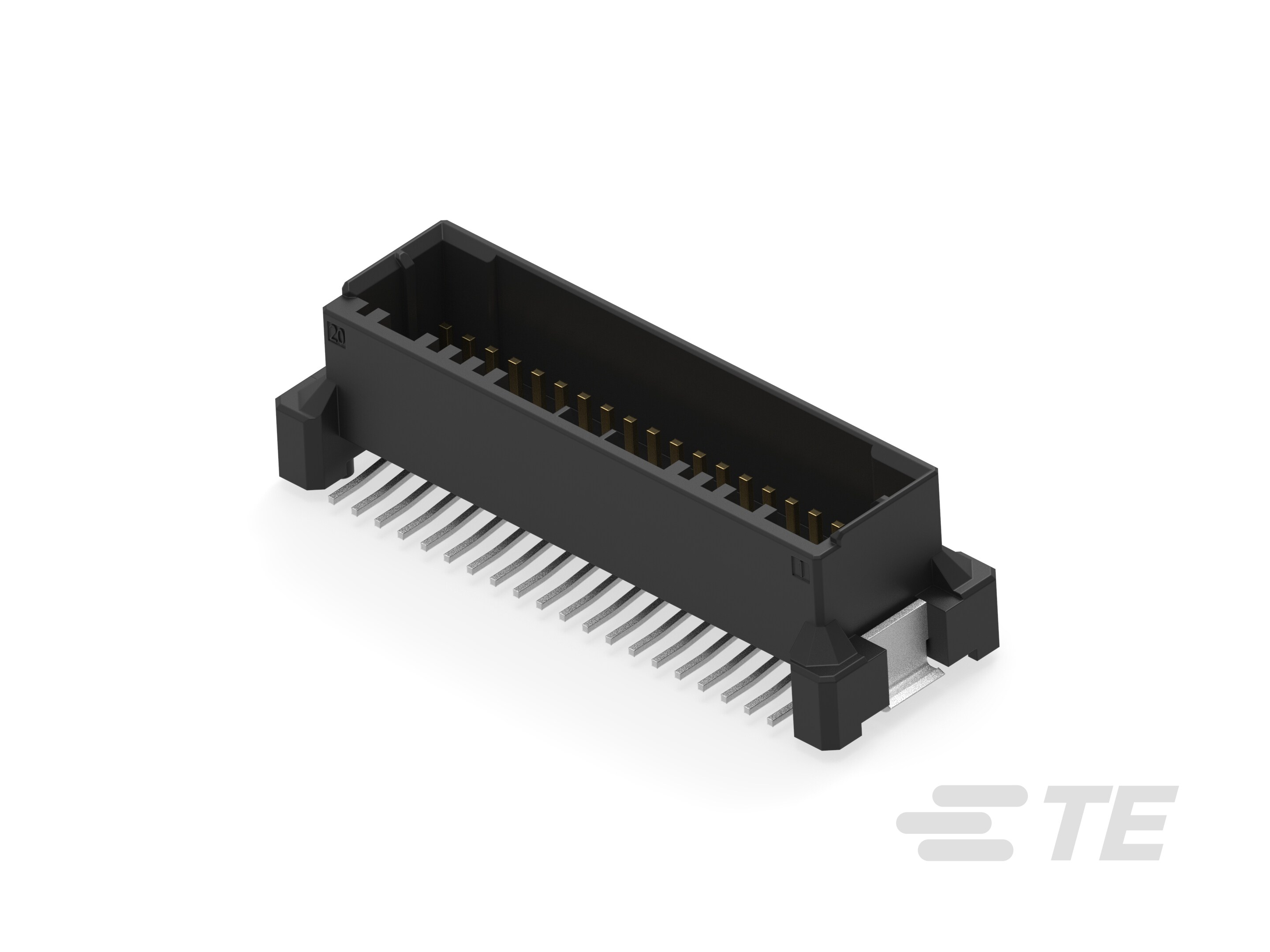

• Housing Material : LCP (Liquid Crystal Polymer)

• Centerline (Pitch) : 2 mm [ .079 in ]

• Contact Mating Area Plating Material Thickness : .76 µm [ 30 µin ]

• PCB Contact Termination Area Plating Material : Tin

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Base Material : Copper Alloy

• Contact Underplating Material : Nickel

• PCB Contact Termination Area Plating Material Thickness : 2 µm [ 78.74 µin ]

• Contact Mating Area Plating Material : Gold

• Contact Type : Pin

• Contact Current Rating (Max) (A): 3

• PCB Mount Alignment Type : Locating Posts

• Mating Alignment Type : Keyed

• PCB Mount Retention Type : Solder Peg

• Mating Retention : With

• PCB Mount Retention : With

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Packaging Quantity : 40

• Packaging Method : Tray, Box

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Mount Orientation : Vertical

• Number of Positions : 40

• Number of Rows : 2

• Primary Product Color : Black

• Termination Method to PCB : Surface Mount

• Circuit Application : Power & Signal

• UL Flammability Rating : UL 94V-0
