2-1987224-7

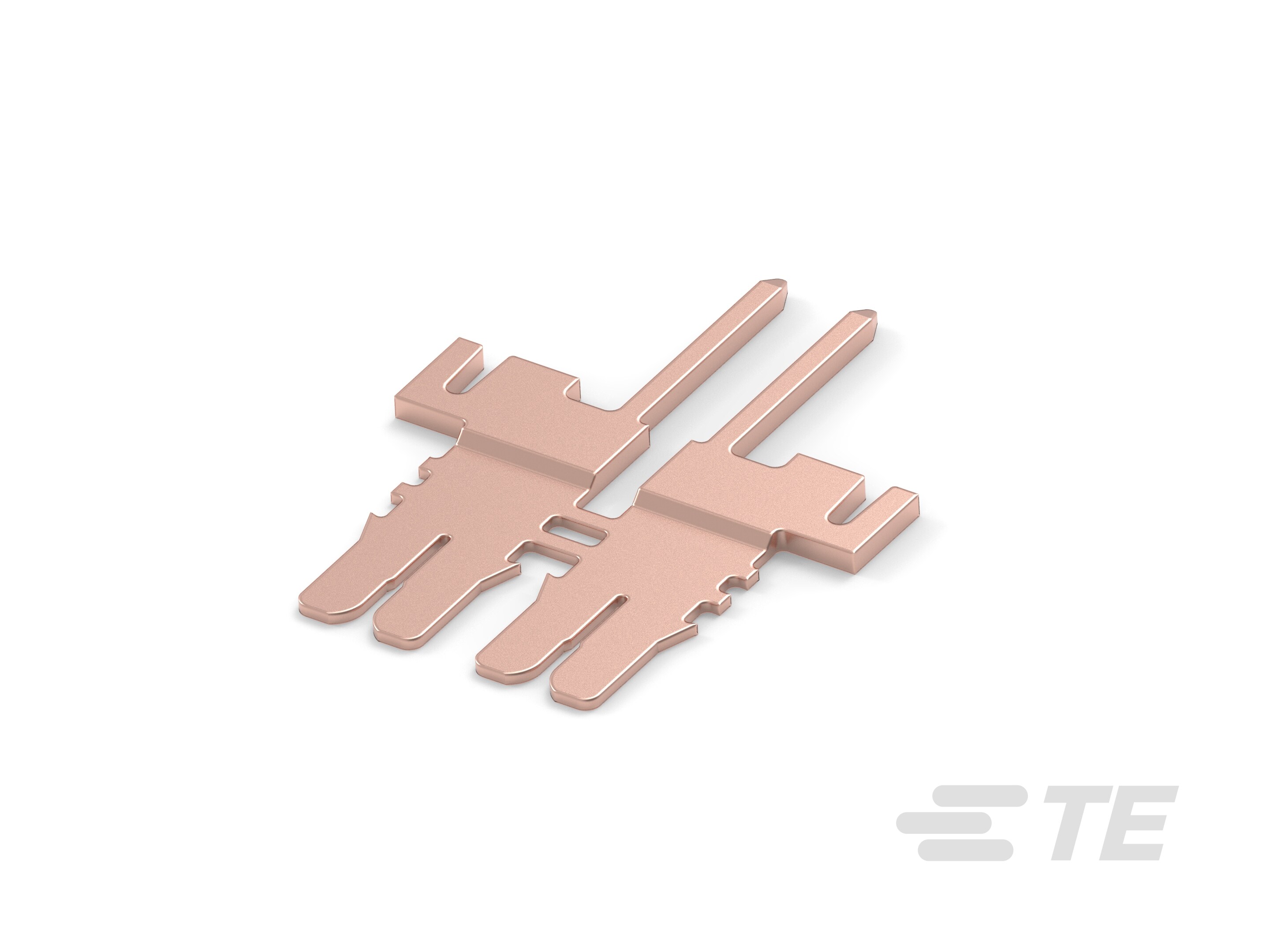

Pin, .4 – .63 mm Magnet Wire, 26 – 23 AWG Magnet Wire, Insulation Displacement (IDC), Tin Plating, MAG-MATE, Magnet Wire Terminals
2-1987224-7
Pin, .4 – .63 mm Magnet Wire, 26 – 23 AWG Magnet Wire, Insulation Displacement (IDC), Tin Plating, MAG-MATE, Magnet Wire Terminals
-
- MAG-MATE
- TE Internal #: 2-1987224-7
- TE Internal Description: MAGMATE-MQS TERMINAL
-
Magnet Wire Terminal Type : Pin
-
Magnet Wire Size (mm): .4 – .63
-
Magnet Wire Size (AWG): 26 – 23
-
Termination Method to Wire & Cable : Insulation Displacement (IDC)
-
Stock Thickness (Magnet Wire Side) : .32 mm [ .013 in ]
Documents
Product Drawings
- PAIR MAG-MATE-MQS TERMINAL English
- PAIR MAG-MATE-MQS TERMINAL ENG_CD_1987224_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-1987224-7_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2-1987224-7_B.2d_dxf.zip English
- ENG_CVM_CVM_2-1987224-7_B.3d_igs.zip English
- ENG_CVM_CVM_2-1987224-7_B.3d_stp.zip English
Datasheets & Catalog Pages
- Magnet Wire Terminals & Splices ENG_DS_82221_MagnetWire_0616.pdf English
Product Specifications
- Application Specification ENG_SS_114-2140_C.pdf English
