2-2071568-1

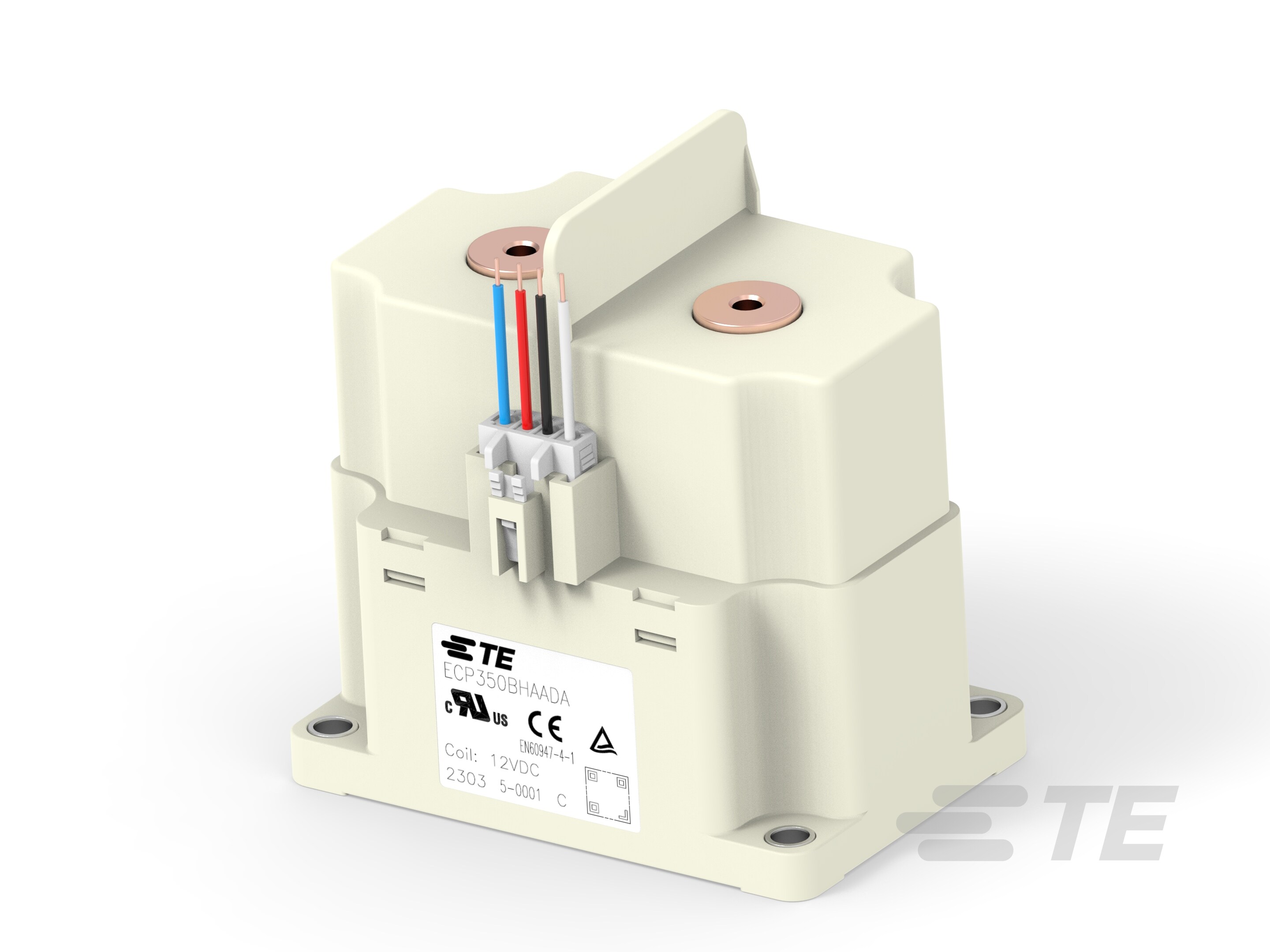

General Purpose Contactor, DC, 1 Form X SPST-NO-DM, 500 A Contact Rating, 12 VDC Coil Voltage, 50 W Coil Power, Panel Mount, ECP350B
2-2071568-1
General Purpose Contactor, DC, 1 Form X SPST-NO-DM, 500 A Contact Rating, 12 VDC Coil Voltage, 50 W Coil Power, Panel Mount, ECP350B
-
- ECP350B
- TE Internal #: 2-2071568-1
- TE Internal Description: ECP350BHAADA
- All High Voltage Contactors, hermetically sealed, ceramic technology (10)
-
Relay & Contactor Type : General Purpose Contactor
-
Current Type : DC
-
Contact Arrangement : 1 Form X SPST-NO-DM
-
Contact Current Rating (A): 500
-
Coil Voltage Rating (VDC): 12
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-2071568-1_1.pdf 3D
- Customer View Model ENG_CVM_CVM_2-2071568-1_1.2d_dxf.zip English
- ENG_CVM_CVM_2-2071568-1_1.3d_igs.zip English
- ENG_CVM_CVM_2-2071568-1_1.3d_stp.zip English
Datasheets & Catalog Pages
- HIGH VOLTAGE CONTACTORS ECP350B SERIES ENG_DS_ECP350_Datasheet_6.pdf English
- QRG - High Voltage DC Contactors ENG_DS_QRG-high-voltage-dc-contactors_2411.pdf English
Agency Approvals
- UKCA_CERT_724_00005_C1 ENG_AAD_UKCA_CERT_724_00005_C1_1.pdf English
- UL ENG_AAD_UL_CERT_COC_E82292_20230221_C1_3.pdf English
- TUV Certificate ENG_AAD_TUV_CERT_R50578956_C1_2.pdf English
- ENG_AAD_TUV_CERT_LVD_AN50578970_C1_1.pdf English
- CE Declaration of Conformity ENG_AAD_CE_CERT_724_00005_C1_2.pdf English
