Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

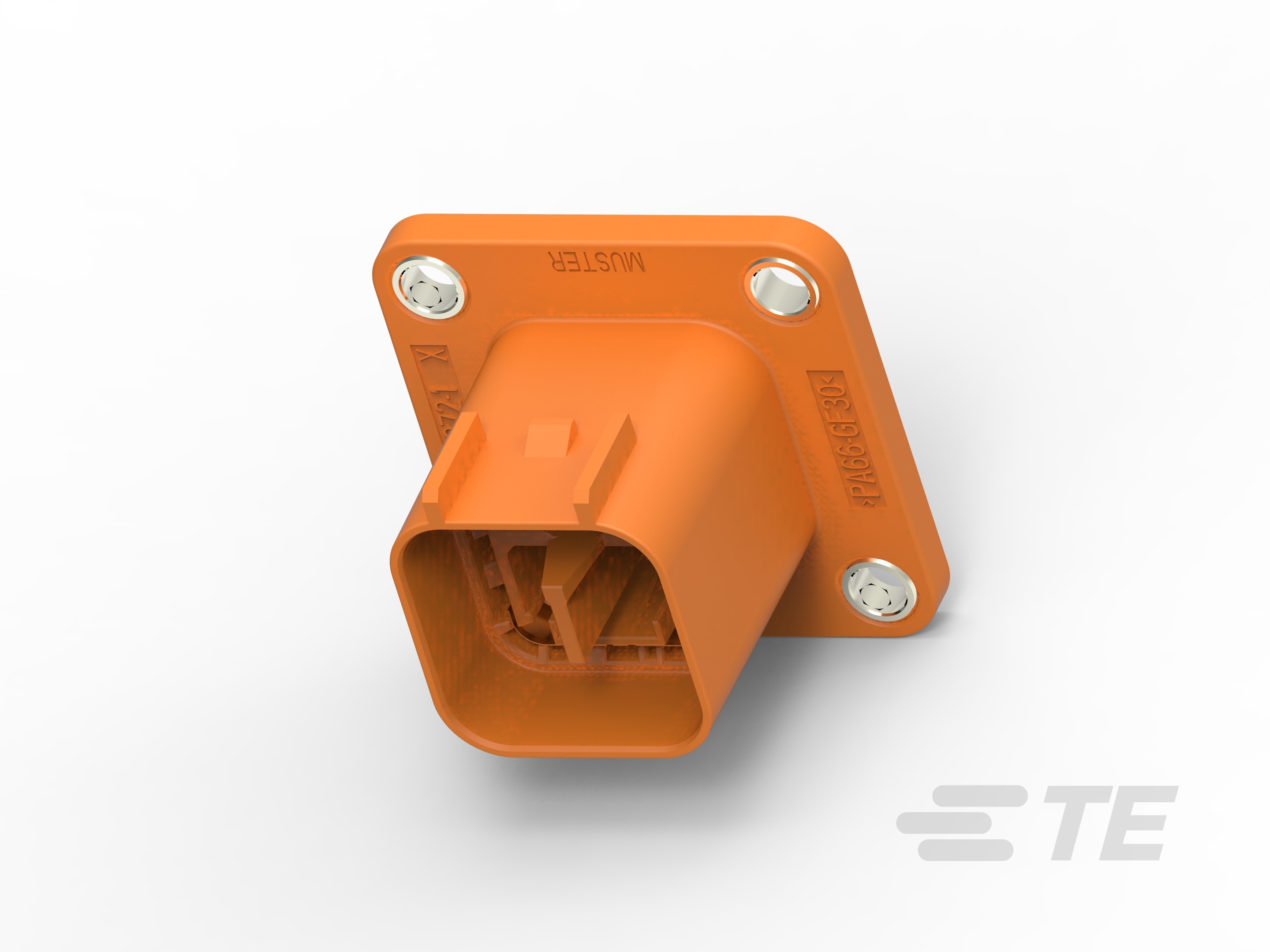

• Connector & Contact Terminates To : Printed Circuit Board

• Sealable : Yes

• PCB Connector Assembly Type : PCB Mount Header

• Header Type : Fully Shrouded

• Mixed & Hybrid Header : Yes

• Connector Shape : Rectangular

• Connector System : Wire-to-Board, Wire-to-Panel

• Number of Rows : 1

• Number of Sections : 1

• Number of Positions : 2

• Number of Signal Positions : 2

• PCB Mount Orientation : Vertical

• Operating Voltage (VDC): 850

• Operating Voltage (VAC): 850

• Primary Product Color : Orange

• Connector & Keying Code : A

• Mating Tab Thickness : .8 mm [ .031 in ]

• Contact Current Rating (Max) (A): 54

• Contact Type : Tab

• Mating Tab Width : 6.3 mm [ .248 in ]

• Contact Mating Area Plating Material : Silver

• Contact Size : 6.3mm

• Connector Mounting Type : Panel Mount

• PCB Mount Alignment : Without

• Mounting Holes : With

• PCB Mount Retention : Without

• Mating Alignment : With

• Mating Retention : With

• Mating Retention Type : Locking Interface

• Centerline (Pitch) : 9.4 mm [ .37 in ]

• PCB Thickness (Recommended) : 6.3 mm [ .248 in ]

• Connector Length : 50 mm [ 1.968 in ]

• Connector Width : 50 mm [ 1.968 in ]

• Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]

• Operating Temperature (Max) (°C): 65, 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140

• Operating Temperature (Max) (°F): 149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284

• Shielded : Yes

• Circuit Application : Power

• Degree of Protection : IP6K9K
