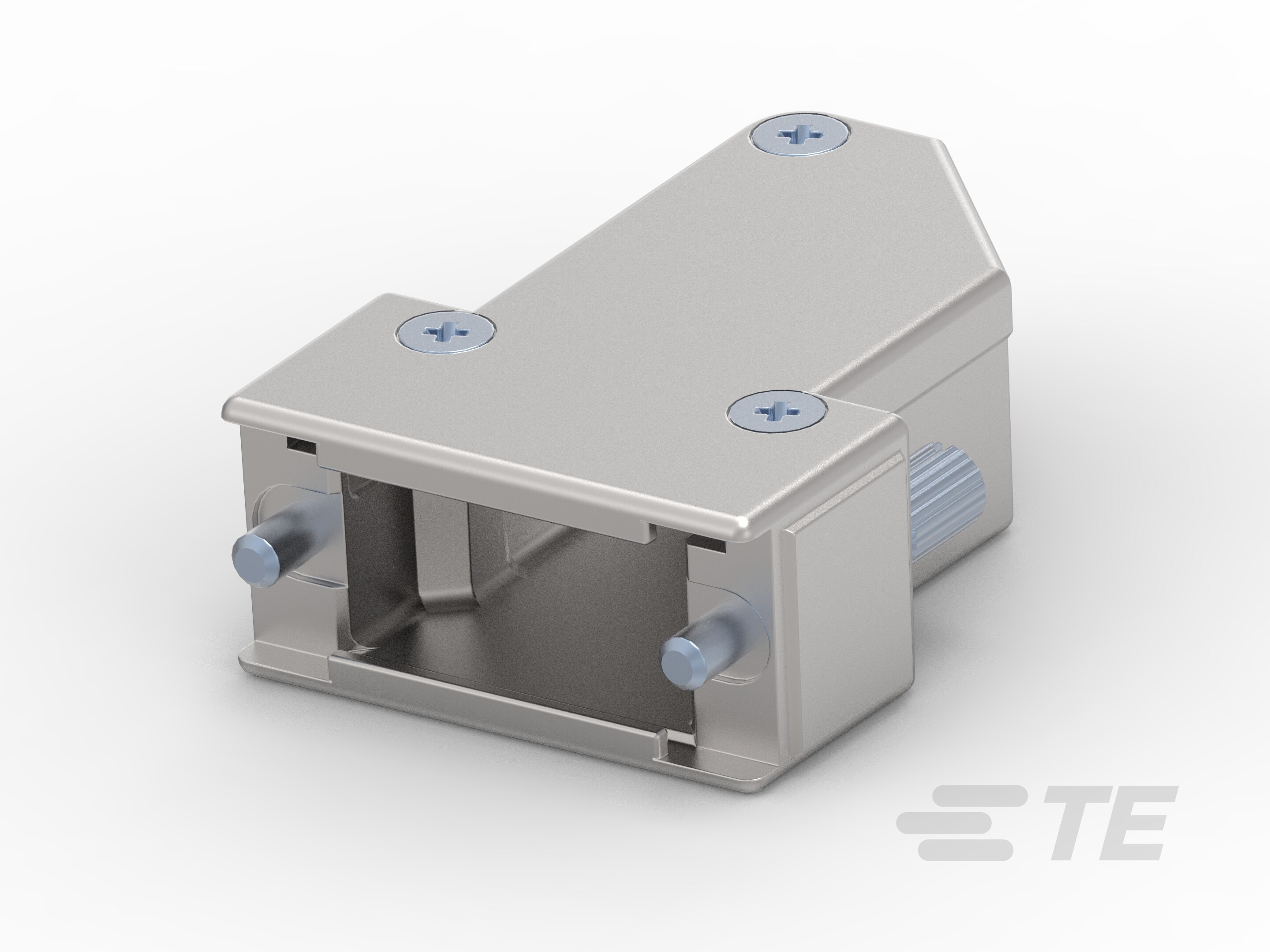

Shielded, Backshell, Zinc, Straight, Shell Size 1, 15 / 9 Position, Crimp Ferrule Termination, Rail D-Sub Backshells
2-2308340-0
Shielded, Backshell, Zinc, Straight, Shell Size 1, 15 / 9 Position, Crimp Ferrule Termination, Rail D-Sub Backshells
-
- Rail D-Sub Backshells
- TE Internal #: 2-2308340-0
- TE Internal Description: FULL METAL HOODS SIZE 1-10 (RAW 135 DEG)
- All D-Sub Backshell Size 1 (12)
-
Connector Backshell Product Style : Shielded
-
Connector Backshell Product Type : Backshell
-
Primary Product Material : Zinc
-
Body Orientation : Straight
-
Compatible With Connector Shell Size : 1
Documents
Product Drawings
- FULL METAL HOODS SIZE 1 ENG_CD_2308340_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-2308340-0_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2-2308340-0_A.2d_dxf.zip English
- ENG_CVM_CVM_2-2308340-0_A.3d_igs.zip English
- ENG_CVM_CVM_2-2308340-0_A.3d_stp.zip English
Datasheets & Catalog Pages
- Rail D-Sub Backshells Flyer ENG_DS_1-1773876-6__Rail_D-Sub_Shells_Flyer_0318.pdf English
