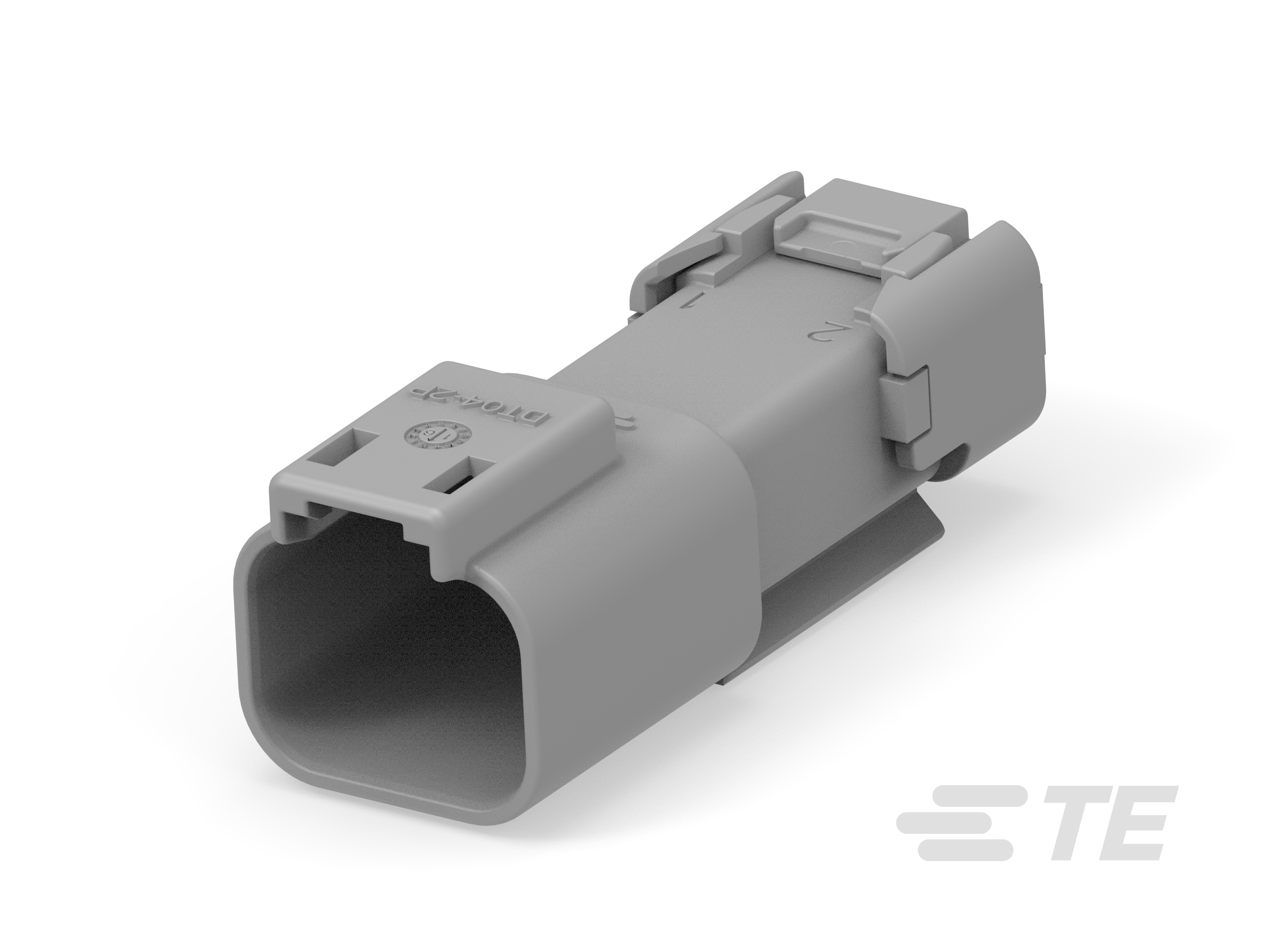

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Rows : 1

• Number of Positions : 2

• Blank Cavity Position : 0

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Primary Product Color : Gray

• Cable Exit Angle : 180°

• Mating Pin Diameter : 1.5 mm [ .06 in ]

• Contact Current Rating (Max) (A): 13

• Contact Type : Pin

• Contact Size : Size 16

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : No

• Strain Relief : Without

• Mating Alignment Type : Polarized

• Mating Alignment : With

• Centerline (Pitch) : 5.5 mm [ .216 in ]

• Housing Material : PA 66 GF15

• Product Width : 46.2 mm [ 1.81 in ]

• Connector Height : 17 mm [ .669 in ]

• Compatible Insulation Diameter Range : 1.4 – 2.5 mm [ .055 – .1 in ]

• Wire Size (AWG): 20 – 14

• Product Length : 17.1 mm [ .673 in ]

• Wire Size (mm²): .52 – 1.3

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Circuit Application : Power

• Compatible With Agency/Standards Products : SAE J2030

• IP Rating : IP6K9K, IP68

• UL Flammability Rating : UL 94V-0

• Packaging Method : Bag

• Packaging Quantity : 1
