Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

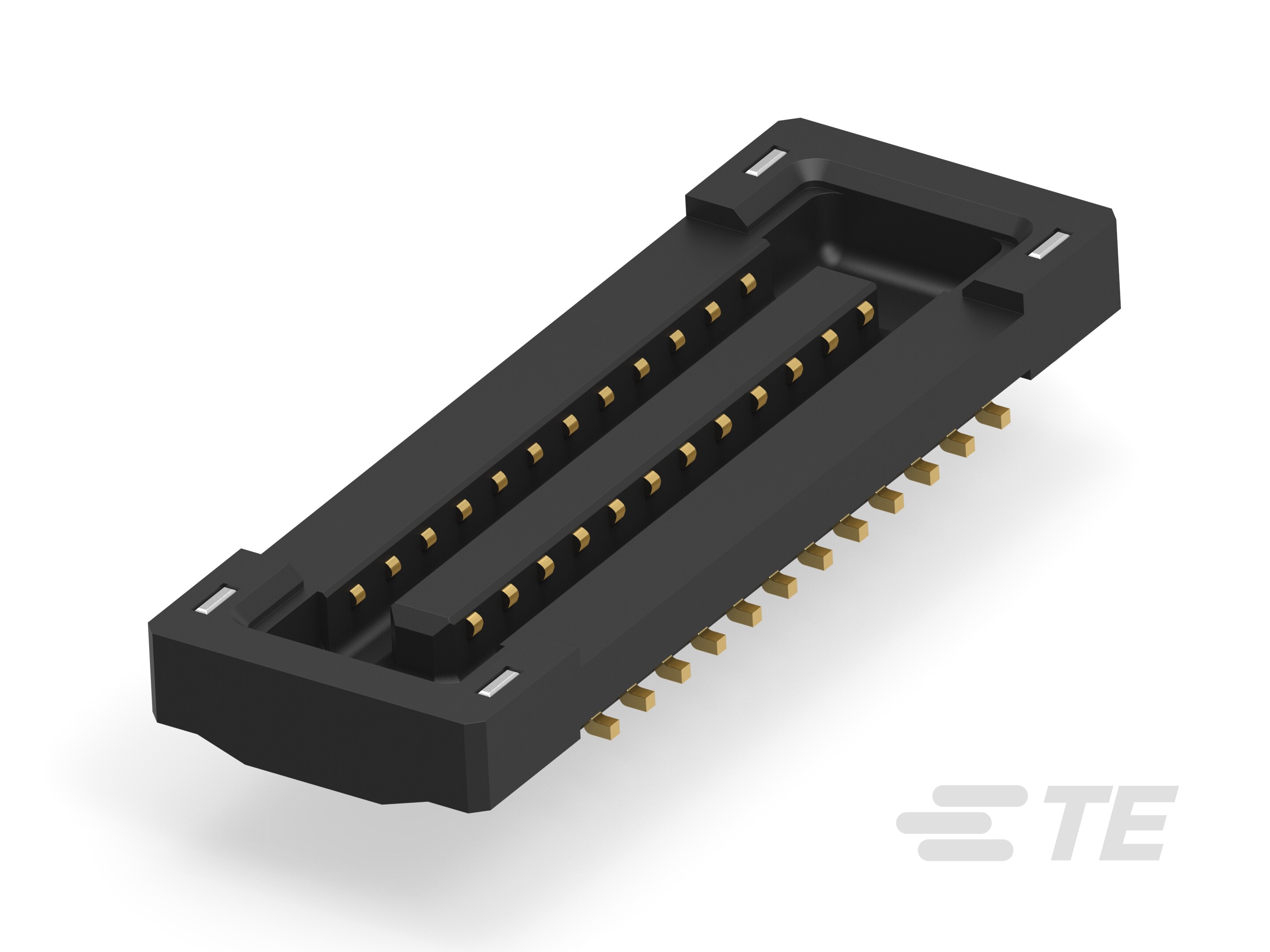

• PCB Connector Type : PCB Mount Header

• Connector System : Board-to-Board

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Board-to-Board Configuration : Parallel

• PCB Mount Orientation : Vertical

• Number of Positions : 24

• Number of Rows : 2

• Dielectric Withstanding Voltage (Max) (VAC): 250

• Operating Voltage (VDC): 60

• Operating Voltage (VAC): 60

• Connector Profile : Low

• Primary Product Color : Black

• Contact Mating Area Plating Material Thickness : .1 µm [ 4 µin ]

• Contact Base Material : Copper Alloy

• Contact Layout : Inline

• Contact Mating Area Plating Material : Gold (Au)

• Contact Type : Pin

• Contact Current Rating (Max) (A): .5

• Termination Method to PCB : Surface Mount

• Mating Alignment Type : Polarized

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : High Temperature Thermoplastic

• Centerline (Pitch) : .4 mm [ .015 in ]

• Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
