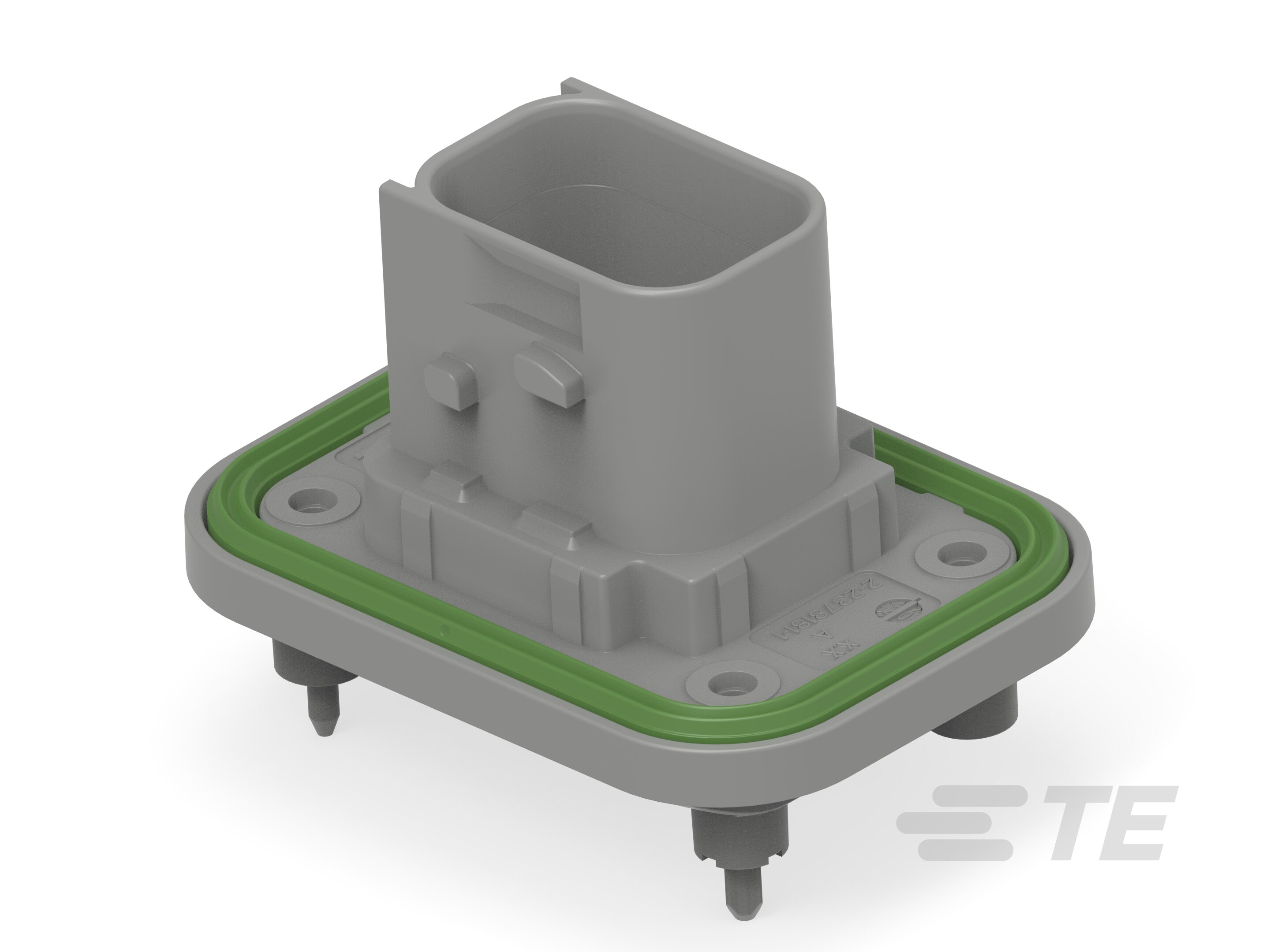

PCB Mount Header, Vertical, Wire-to-Board, 7 Position, Fully Shrouded, Silver, Through Hole - Solder, Sealable, Signal, Gray, Package
2-2378180-1
PCB Mount Header, Vertical, Wire-to-Board, 7 Position, Fully Shrouded, Silver, Through Hole - Solder, Sealable, Signal, Gray, Package
- TE Internal #: 2-2378180-1
- TE Internal Description: 7POS,HYBRID,HDR ASSY,180DEG,COD B
- All Heavy Duty Sealed Connector Headers (18)
-
Packaging Method : Package
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Primary Product Color : Gray
-
Connector & Contact Terminates To : Printed Circuit Board
Documents
Product Drawings
- 7POS, HYBRID, HDR ASSY, 180DEG 7pol, gemischt, Stiftwanne, 180 Grad ENG_CD_2378180_A4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-2378180-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2-2378180-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2-2378180-1_A.3d_igs.zip English
- ENG_CVM_CVM_2-2378180-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-94684_A1.pdf English
- Product Specification ENG_SS_108-94808_A.pdf English
