Please review product documents or contact us for the latest agency approval information.

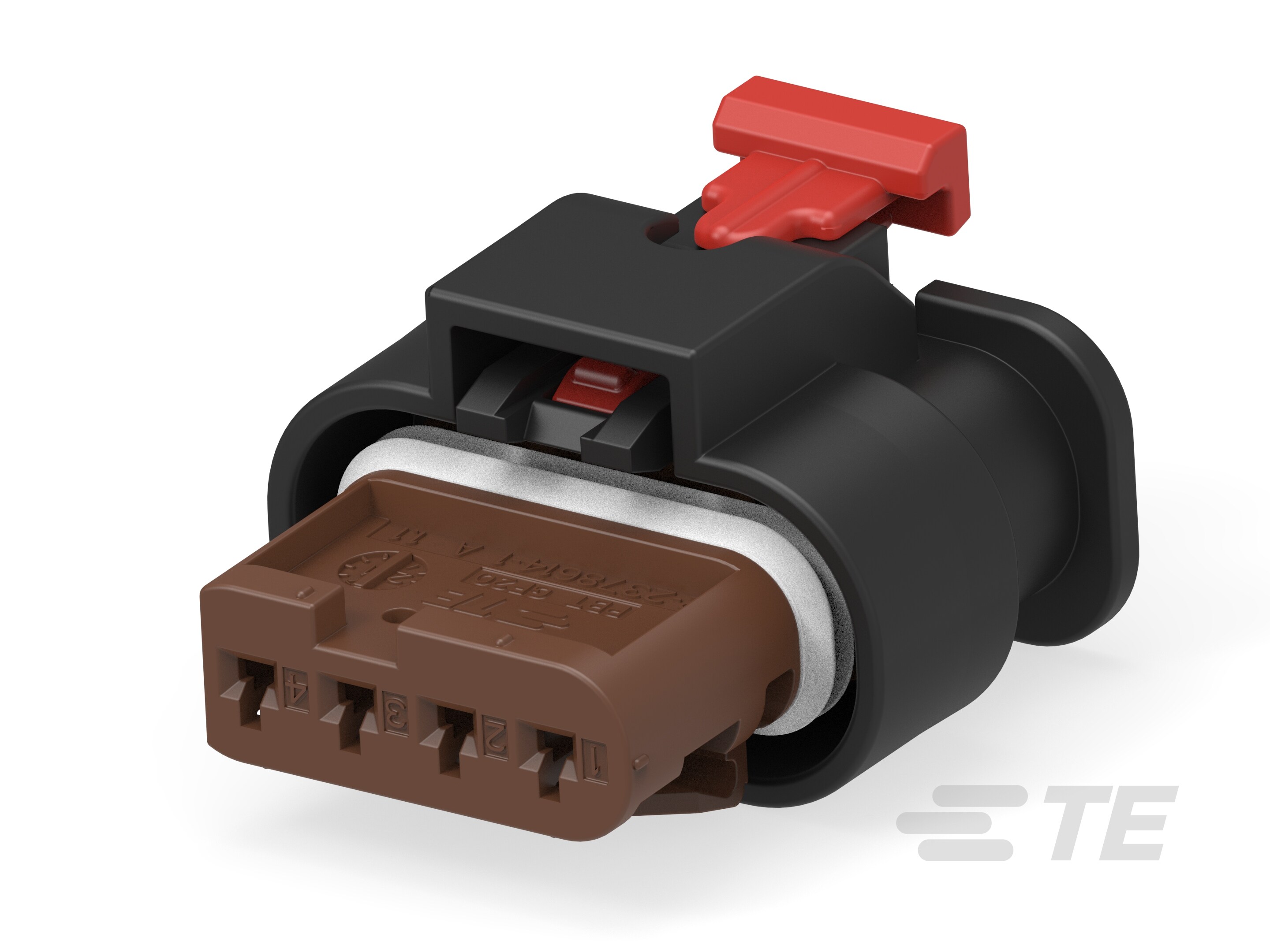

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 1.2mm

• Mating Tab Width : 1.2 mm [ .047 in ]

• Contact Current Rating (Max) (A): 25

• Housing Material : PA GF

• Centerline (Pitch) : 4 mm [ .157 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Brown

• Connector & Keying Code : B

• Operating Voltage (VDC): 48

• Nominal Voltage Architecture (V): 48

• Serviceable : Yes

• Connector Position Assurance Capable : Yes

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Wire Size (mm²): .35 – 1.5

• Connector Height : 24.2 mm [ .95 in ]

• Product Length : 24.9 mm [ .98 in ]

• Product Width : 26.5 mm [ 1.04 in ]

• UL Flammability Rating : UL 94HB

• IP Rating : IPX9K

• Number of Positions : 4

• Number of Rows : 1

• Operating Temperature (Max) : 130 °C [ 266 °F ]

• Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]
