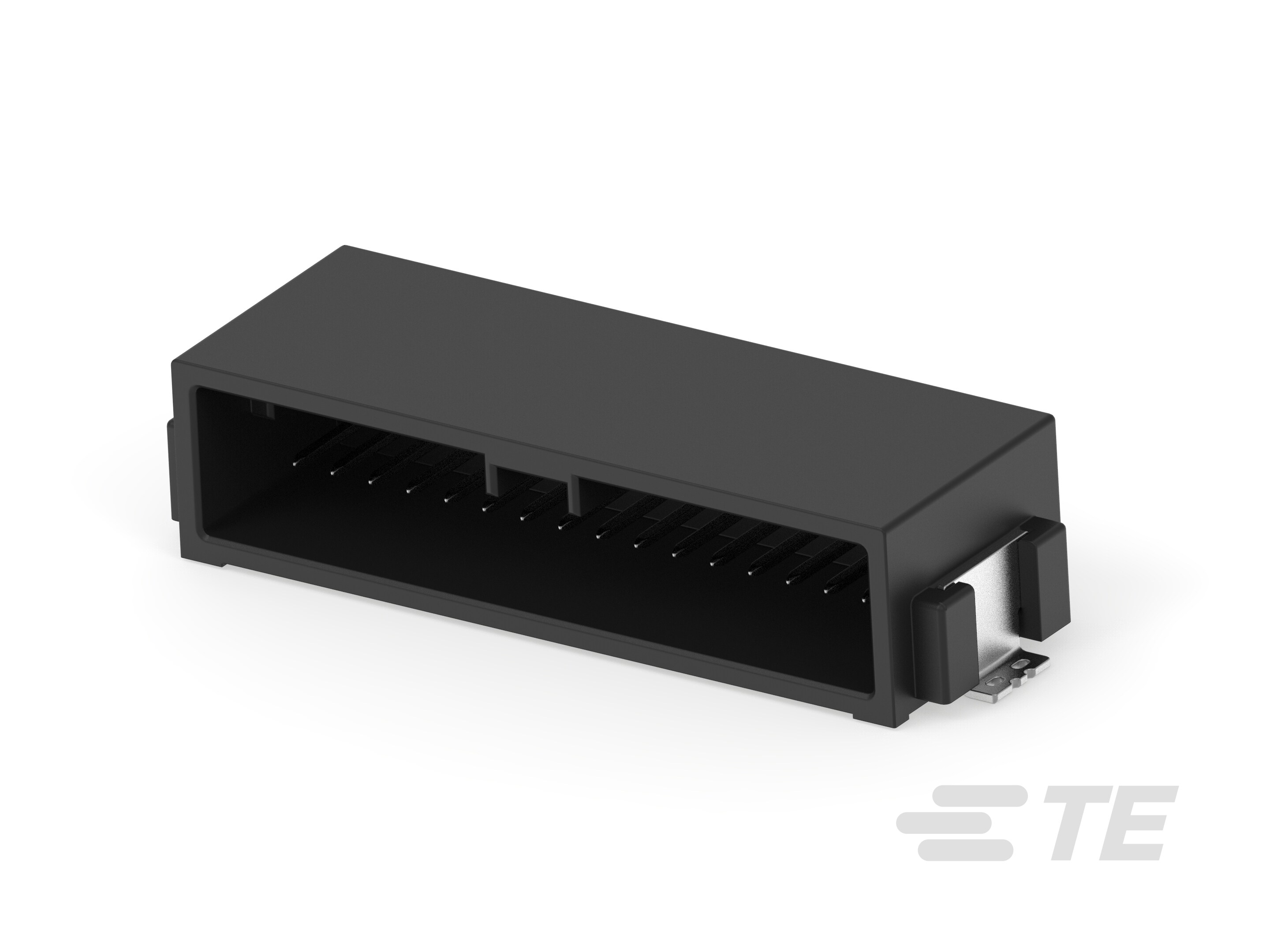

PCB Mount Header, Right Angle, Wire-to-Board, 28 Position, 1.8 mm [.071 in] Centerline, Partially Shrouded, Tin-Lead, Mini Dynamic Series
2-2834465-8
PCB Mount Header, Right Angle, Wire-to-Board, 28 Position, 1.8 mm [.071 in] Centerline, Partially Shrouded, Tin-Lead, Mini Dynamic Series
-
- Dynamic Series
- Mini Dynamic Series
- TE Internal #: 2-2834465-8
- TE Internal Description: MINI DYNAMIC HDR H 28P TIN X-KEY BLK
- All PCB Mount Header: Wire-to-Board (16)
-
PCB Connector Type : PCB Mount Header
-
PCB Mount Orientation : Right Angle
-
Connector System : Wire-to-Board
-
Number of Positions : 28
-
Number of Rows : 2
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-2834465-8_1.pdf 3D
- Customer View Model ENG_CVM_CVM_2-2834465-8_1.2d_dxf.zip English
- ENG_CVM_CVM_2-2834465-8_1.3d_igs.zip English
- ENG_CVM_CVM_2-2834465-8_1.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-137692_A.pdf English
- Product Specification ENG_SS_108-137526_A2.pdf English
Product And Material Test Reports
- Mini Dynamic Test Report ENG_PMTR_501-137526_A1.pdf English
