2-31818-1

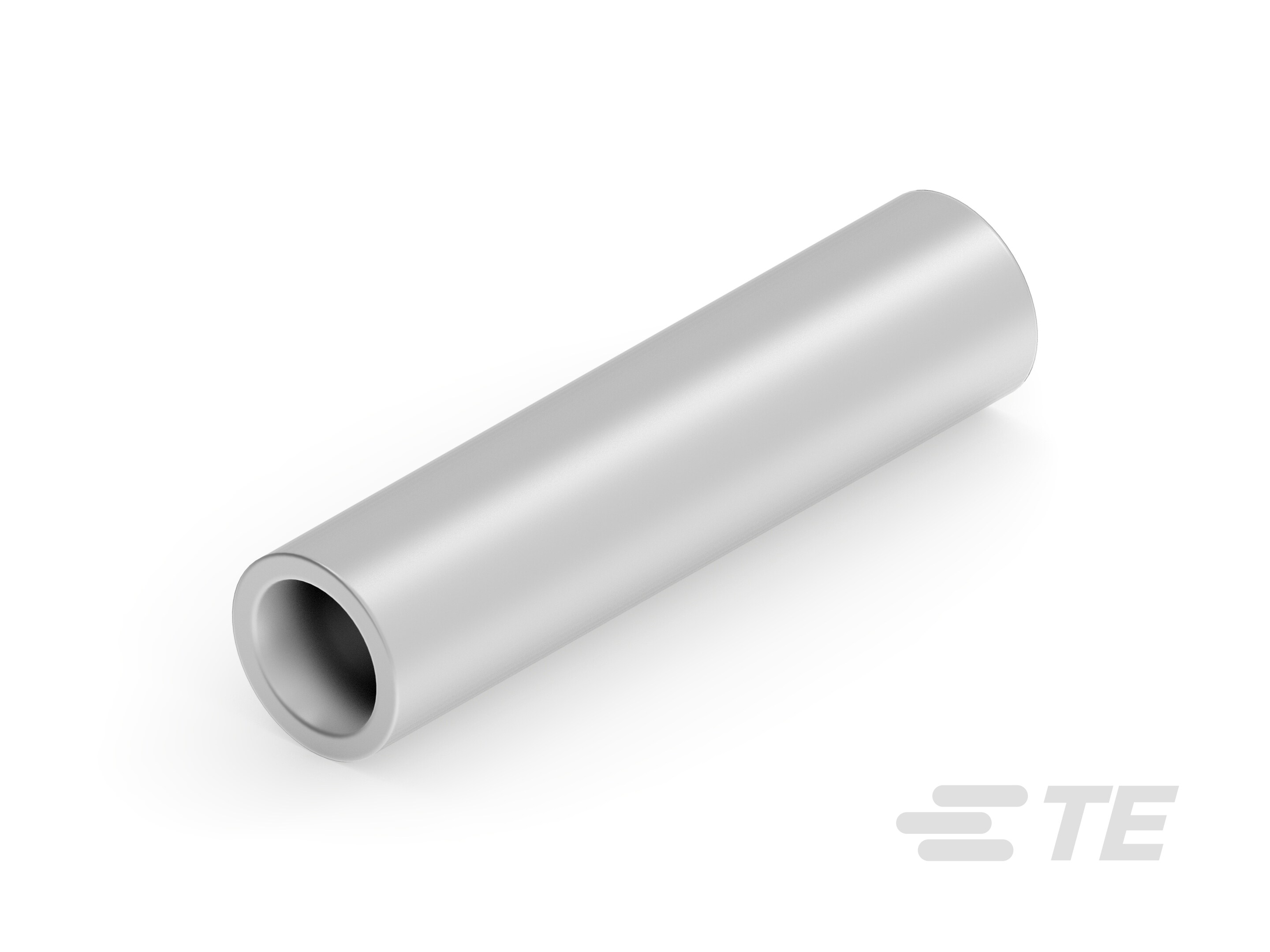

Butt Splice, 22 – 16 AWG, .3 – 1.42 mm² Wire, Serrated, 509 – 3260 CMA, Copper, 16 Serration, 14.68 mm [.578 in] Length, Tape Mounted, Closed Barrel
2-31818-1
Butt Splice, 22 – 16 AWG, .3 – 1.42 mm² Wire, Serrated, 509 – 3260 CMA, Copper, 16 Serration, 14.68 mm [.578 in] Length, Tape Mounted, Closed Barrel
-
- SOLISTRAND
- TE Internal #: 2-31818-1
- TE Internal Description: SOLIS BUTT 22-16COMM22-18MIL
-
Splice Type : Butt Splice
-
Wire Size (AWG): 22 – 16
-
Wire Size (mm²): .3 – 1.42
-
Sealable : No
-
Splice Features : Serrated
