2-34151-1

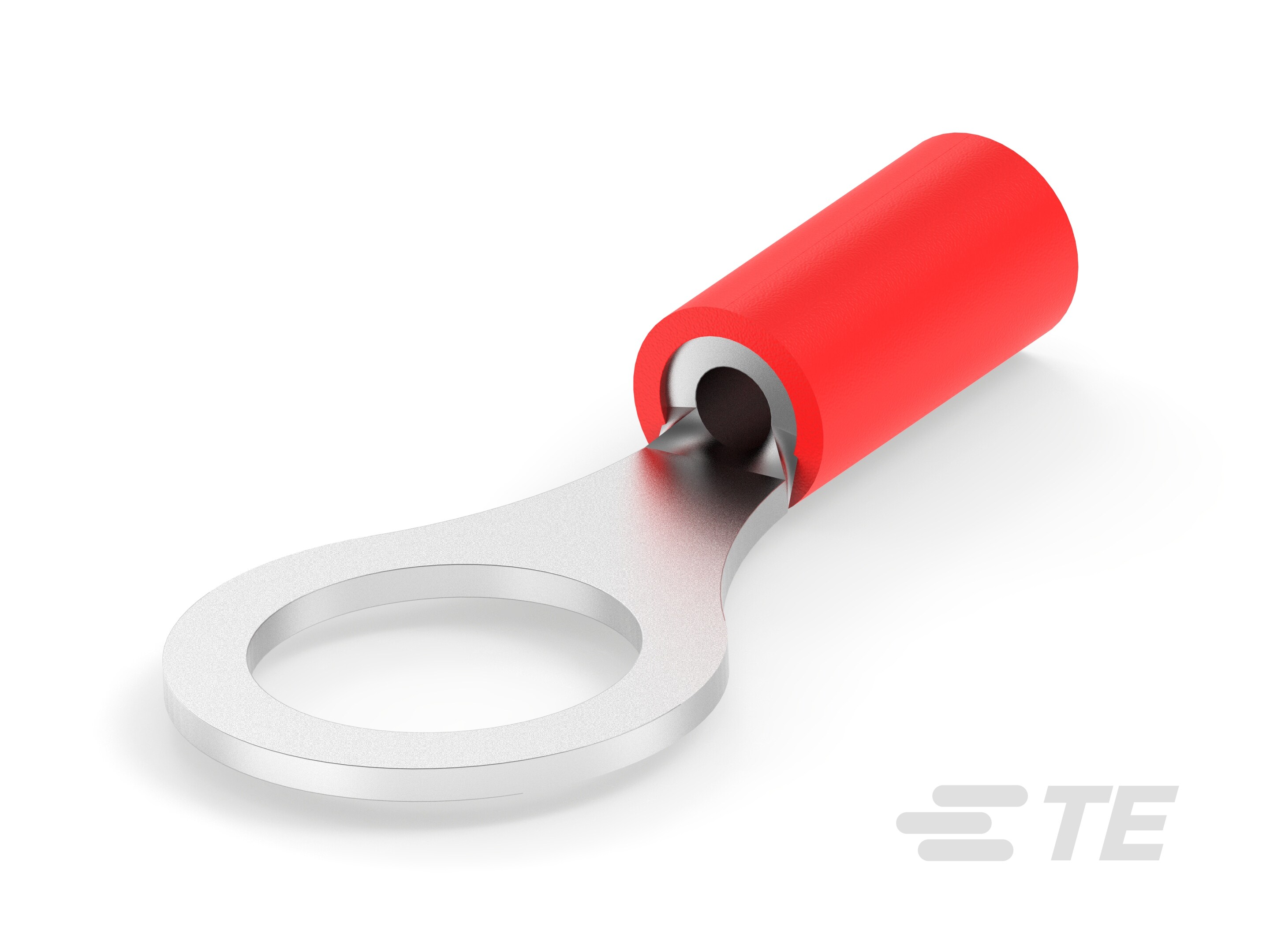

Closed Ring Tongue Terminal, 22 – 16 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
2-34151-1
Closed Ring Tongue Terminal, 22 – 16 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
-
- PLASTI-GRIP
- TE Internal #: 2-34151-1
- TE Internal Description: PG R 22-16 COMM 22-18 MIL 5/16
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 22 – 16
-
Wire Size (mm²): .26 – 1.65
-
Wire Size (CMA): 509 – 3260
-
Stud Size : 5/16, M8
Documents
Product Drawings
- TERMINAL, RING TONGUE, PLASTI-GRIP WIRE SIZE, 22-16 AWG ENG_CD_34151_P1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-34151-1_R.pdf 3D
- Customer View Model ENG_CVM_CVM_2-34151-1_R.2d_dxf.zip English
- ENG_CVM_CVM_2-34151-1_R.3d_igs.zip English
- ENG_CVM_CVM_2-34151-1_R.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-2161_G.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E13288_19791001_C.pdf English
