2-520129-2

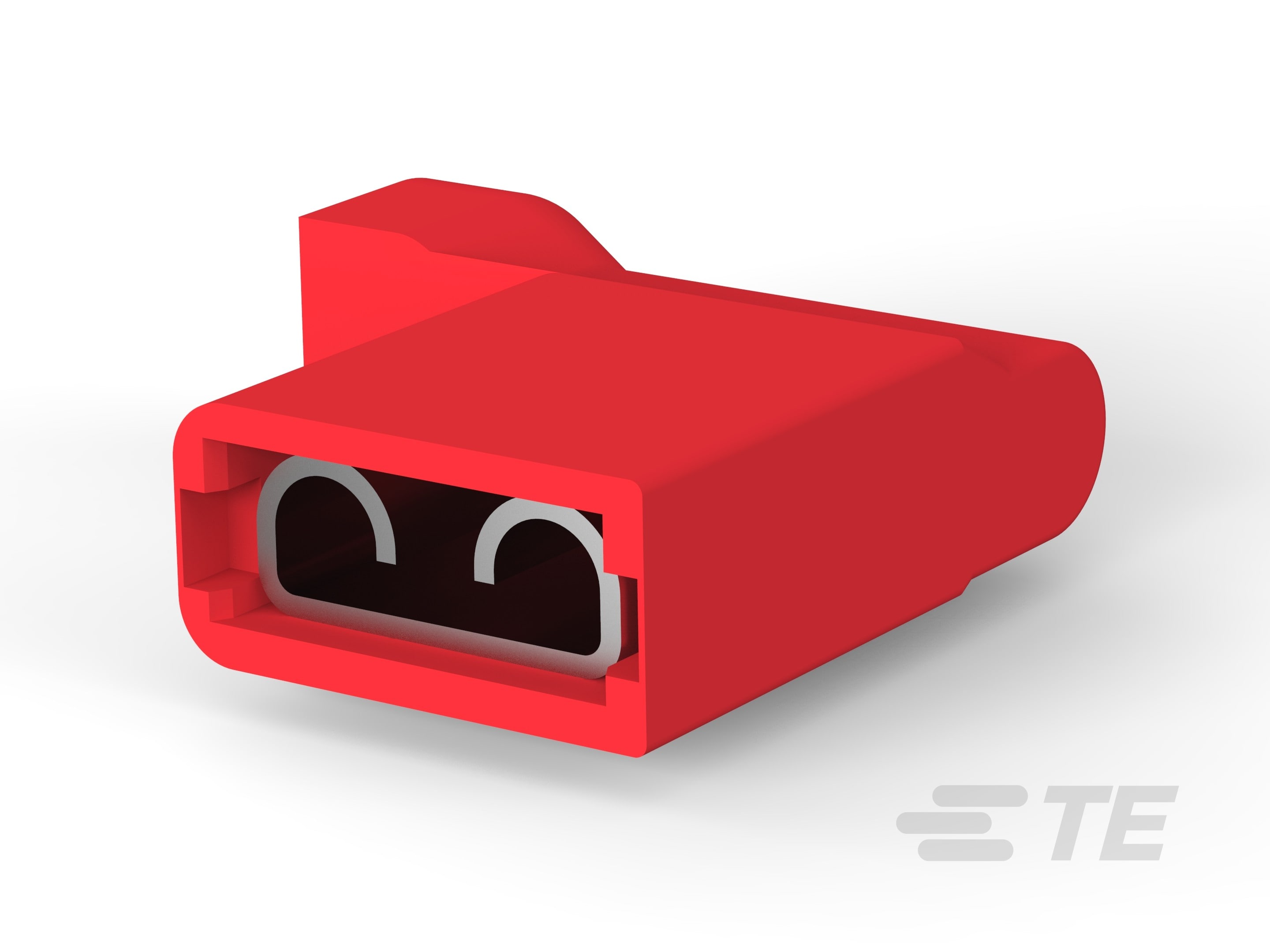

Quick Disconnect Receptacle, 22 – 18 AWG, .32 – .82 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Brass, Tin Plating, Loose Piece/Carton, Ultra-Fast 250
2-520129-2
Quick Disconnect Receptacle, 22 – 18 AWG, .32 – .82 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Brass, Tin Plating, Loose Piece/Carton, Ultra-Fast 250
-
- Ultra-Fast
- Ultra-Fast 250
- TE Internal #: 2-520129-2
- TE Internal Description: ULTRAFAST 250 ASSY FLAG 22-18 TPBR LP
- Alias #: 2-42933-5001 1172095
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 22 – 18
-
Wire Size (mm²): .32 – .82
-
Mating Tab Width : 6.35 mm [ .25 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
Documents
Product Drawings
- RECEPTACLE ASSEMBLY,ULTRA-FAST FLAG, 6.35 [.250] SERIES ENG_CD_520129_T_baseFilename.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-520129-2_S.pdf 3D
- Customer View Model ENG_CVM_CVM_2-520129-2_S.2d_dxf.zip English
- ENG_CVM_CVM_2-520129-2_S.3d_igs.zip English
- ENG_CVM_CVM_2-520129-2_S.3d_stp.zip English
Datasheets & Catalog Pages
- Ultra-Fast and Ultra Fast Plus ENG_CS_82004_Ultra-Fast_and_Ultra_Fast_Plus_0311.pdf English
Product Specifications
- Application Specification ENG_SS_114-2123_K4.pdf English
Agency Approvals
- UL ENG_AAD_UL_E66717_19841030_A-1.pdf English
