Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

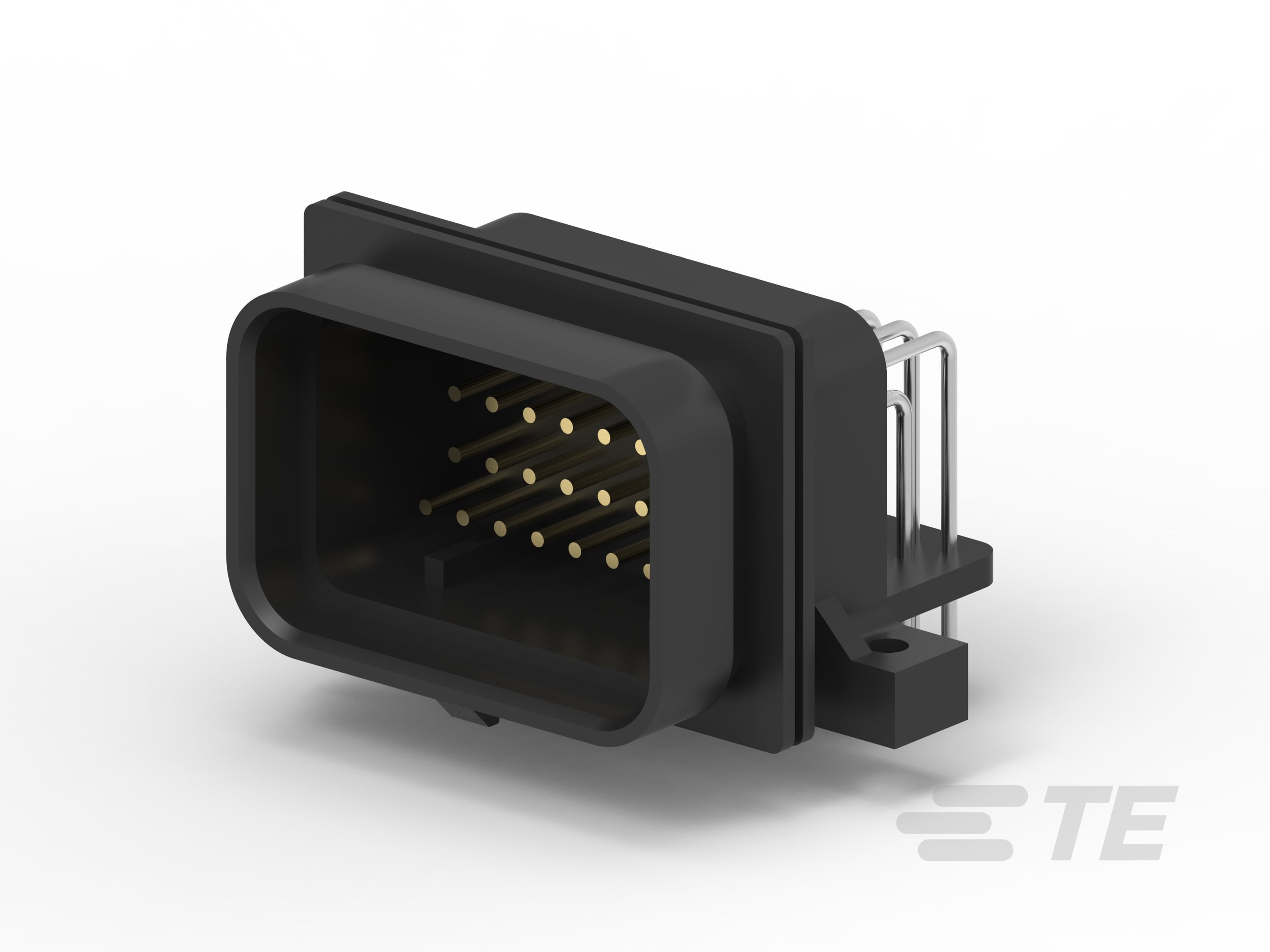

• Connector & Contact Terminates To : Printed Circuit Board

• Sealable : Yes

• PCB Connector Assembly Type : PCB Mount Header

• Header Type : Fully Shrouded

• Mixed & Hybrid Header : No

• Connector Shape : Rectangular

• Connector System : Wire-to-Board, Wire-to-Device

• Number of Rows : 4

• Number of Positions : 34

• Number of Signal Positions : 34

• PCB Mount Orientation : Right Angle

• Operating Voltage (VDC): 250

• Nominal Voltage Architecture (V): 12, 24, 42, 48, 240

• Operating Voltage (VAC): 250

• Voltage Rating (Max) (VDC): 250

• Voltage Rating (Max) (VAC): 250

• Primary Product Color : Black

• Mating Pin Diameter : 1 mm [ .039 in ]

• Contact Type : Pin

• Contact Mating Area Plating Material : Gold

• Contact Size : 1mm

• Connector Mounting Type : Board Mount

• PCB Mount Alignment : Without

• Mounting Holes : With

• PCB Mount Retention : Without

• Mating Alignment : With

• Panel Mount Feature : Without

• Mating Retention : With

• Mating Retention Type : Locking Interface

• Centerline (Pitch) (mm): 3, 3.5

• Centerline (Pitch) (in): .118, .138

• Profile Height from PCB : 21.4 mm [ .843 in ]

• Connector Length : 45.5 mm [ 1.791 in ]

• Connector Width : 23 mm [ .906 in ]

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Shielded : No

• Degree of Protection : JIS D0203
