2-66101-0

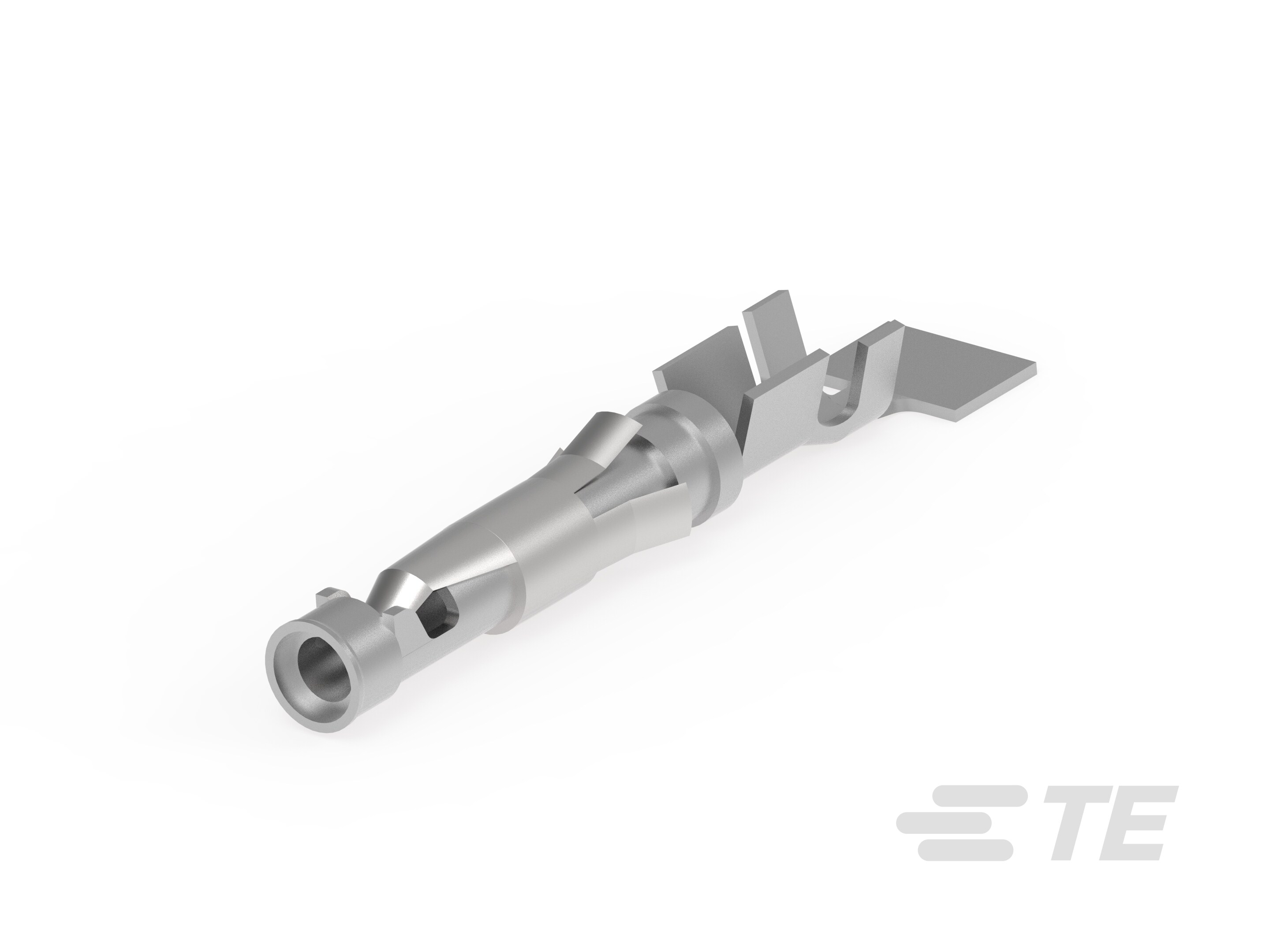

Socket Contact, Tin (Sn), Size 16 Contact Size, 18 – 16 AWG, .8 – 1.4 mm² Wire, Crimp, Brass, Power & Signal, AMP Type III+
2-66101-0
Socket Contact, Tin (Sn), Size 16 Contact Size, 18 – 16 AWG, .8 – 1.4 mm² Wire, Crimp, Brass, Power & Signal, AMP Type III+
-
- AMP
- AMP Type III+ ,
- CPC Series 1
- TE Internal #: 2-66101-0
- TE Internal Description: III+ SKT,18-16,TIN,SMPACK
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Tin (Sn)
-
Wire Contact Termination Area Plating Material : Tin
-
Contact Size : Size 16
-
Wire Size (AWG): 18 – 16
Documents
Product Drawings
- SOCKET ASSEMBLY, LOOSE PIECE, TYPE III+ ENG_CD_66101_F.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-66101-0_Z.pdf 3D
- Customer View Model ENG_CVM_CVM_2-66101-0_Z.2d_dxf.zip English
- ENG_CVM_CVM_2-66101-0_Z.3d_igs.zip English
- ENG_CVM_CVM_2-66101-0_Z.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-10042_G.pdf English
