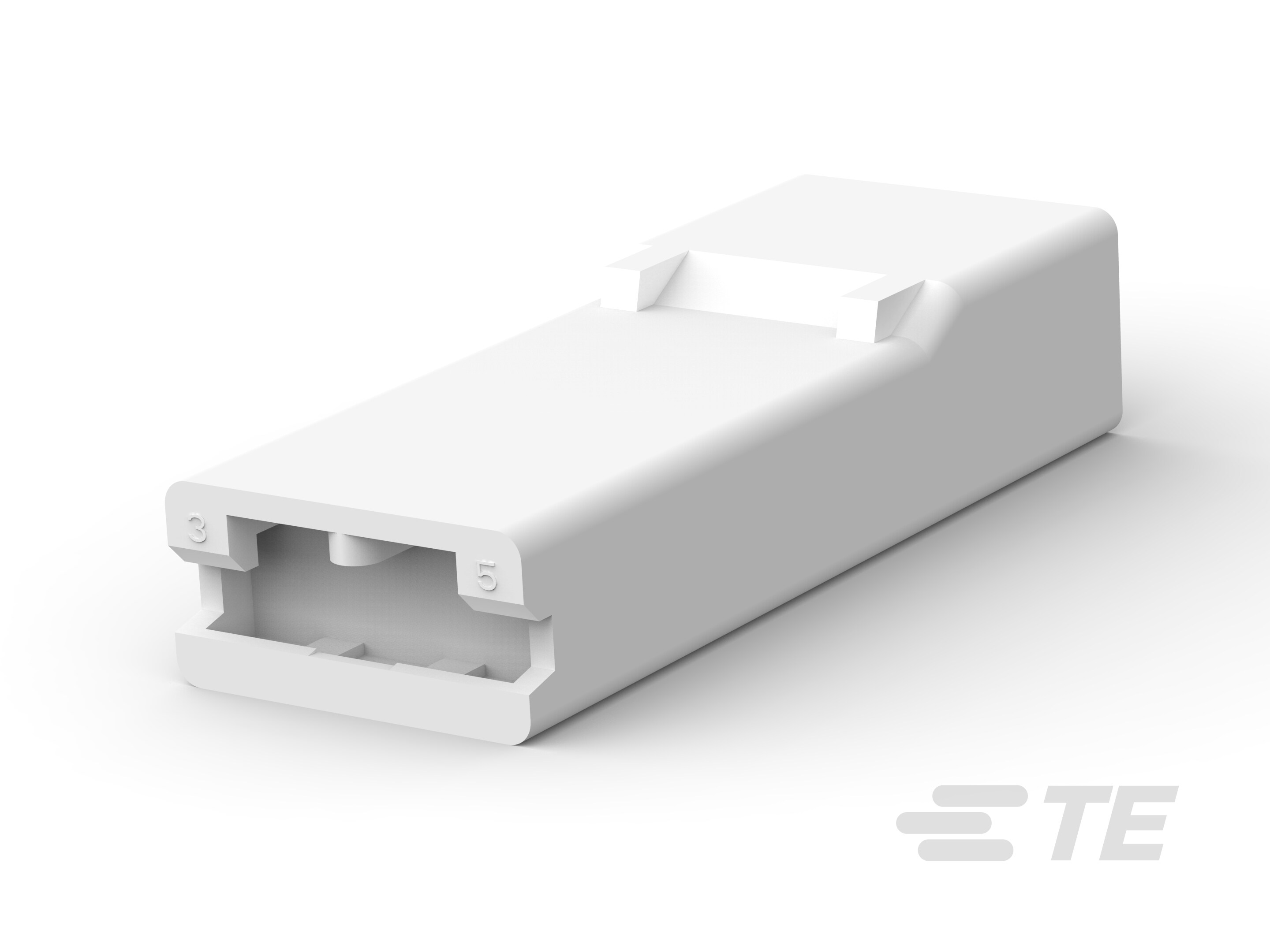

2-735075-6
Receptacle, Receptacle, 1 Position, Straight, UL 94V-0, Natural, Polyamide, Cable Mount (Free-Hanging), Carton, FASTON 250, Crimp Terminal Housings
2-735075-6
Receptacle, Receptacle, 1 Position, Straight, UL 94V-0, Natural, Polyamide, Cable Mount (Free-Hanging), Carton, FASTON 250, Crimp Terminal Housings
-
- FASTON
- FASTON 250
- TE Internal #: 2-735075-6
- TE Internal Description: 250 FASTON INS POST.,REC.,1 POS,NATRUAL
- Alias #: 2-0735075-6
-
Terminal Type : Receptacle
-
Connector & Housing Type : Receptacle
-
Number of Positions : 1
-
Terminal Orientation : Straight
-
UL Flammability Rating : UL 94V-0
Documents
Product Drawings
- POST INSULATION FASTON 6,35 mm. HSG. ENG_CD_735075_V10.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-735075-6_AW.pdf 3D
- Customer View Model ENG_CVM_CVM_2-735075-6_AW.2d_dxf.zip English
- ENG_CVM_CVM_2-735075-6_AW.3d_igs.zip English
- ENG_CVM_CVM_2-735075-6_AW.3d_stp.zip English
Product Specifications
- Product Specification S_108-22033_B.tif English
- S_108-22033_B.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E28476_19950501_C1_U11.pdf English
