- TE Internal #: 20011957-01

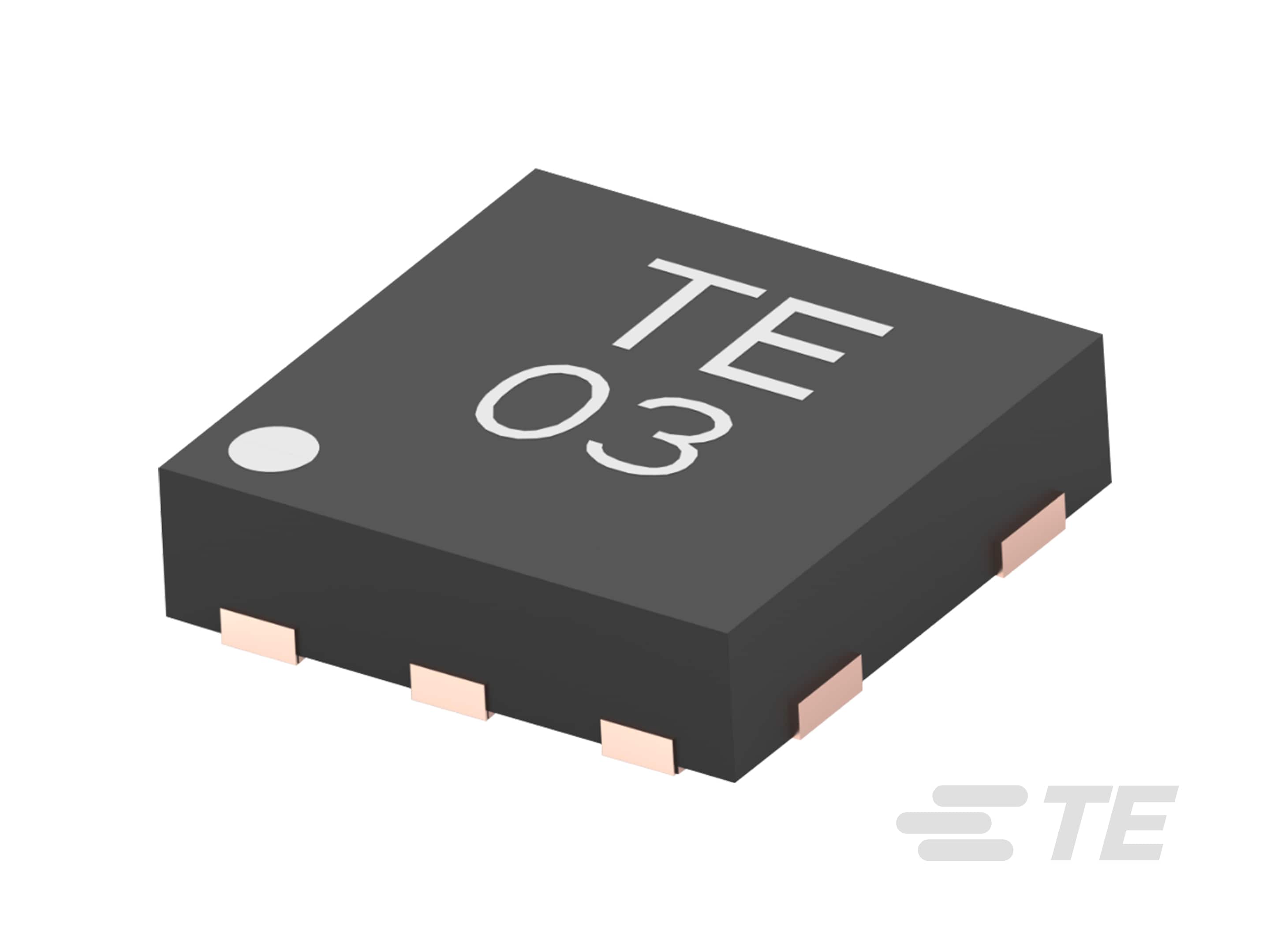

- TE Internal Description: TSYS03 TEMP SENSOR XDFN6 1.5X1.5MM I2C
- All TSYS03 DIGITAL TEMPERATURE SENSOR (2)
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
-
Product Width : 1.5 mm [ .059 in ]
-
Electrical Connection : SMD
-
Product Length : 1.5 mm [ .059 in ]
-
Supply Current (Max) (µA): 400
