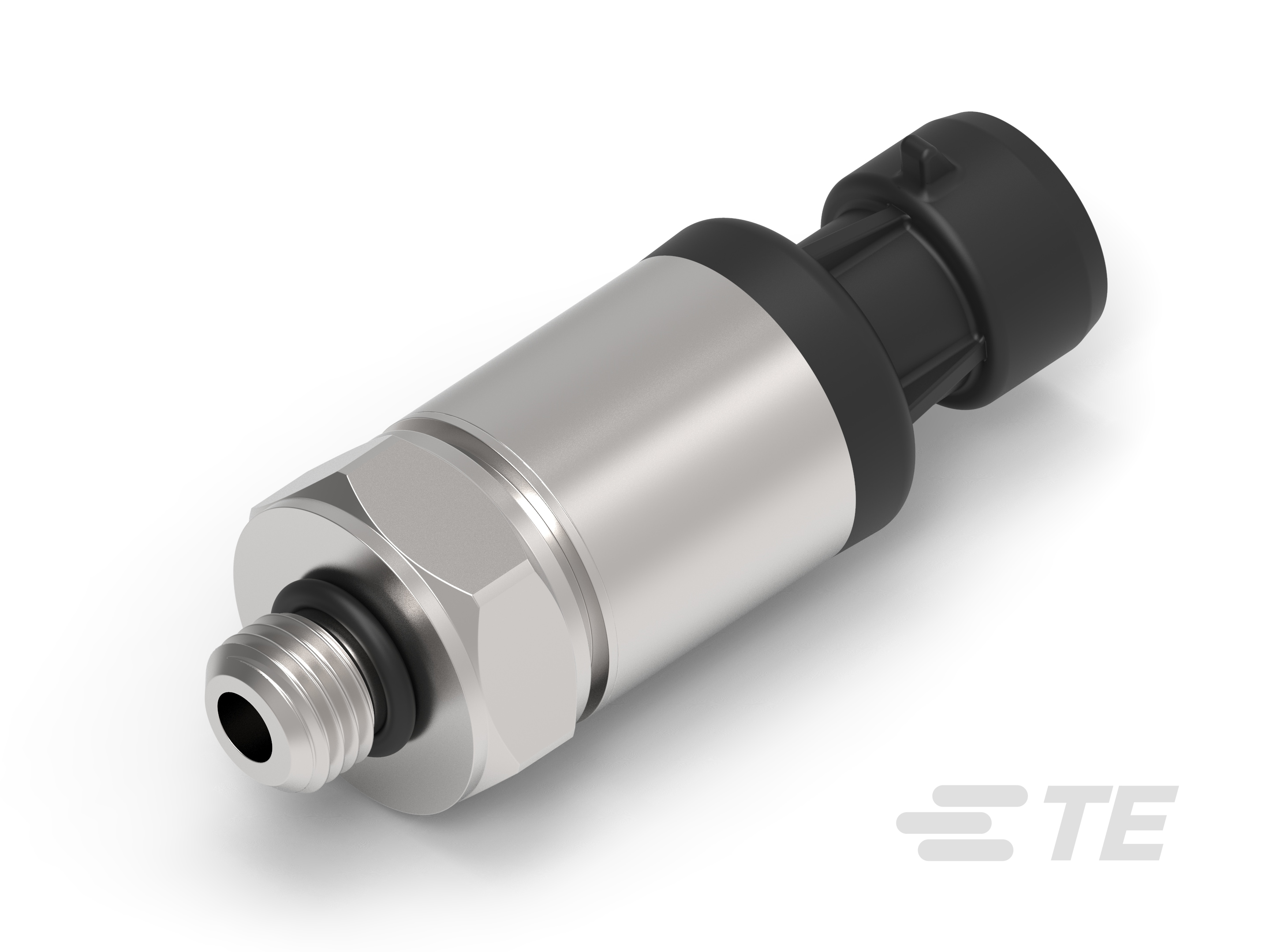

Industrial Pressure Transducer, Gauge, 1 – 5 V Output Signal Type, 2X Rated Proof Pressure Range, MEAS M3200
M3289-000004-05KPG
Industrial Pressure Transducer, Gauge, 1 – 5 V Output Signal Type, 2X Rated Proof Pressure Range, MEAS M3200
-
- MEAS
- MEAS M3200
- TE Internal #: 20012880-00
- TE Internal Description: PRESS XDCR M3289-000004-05KPG
- All Compact Industrial Pressure Transducer (41)
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
-
Pressure : 350 bar [ 5000 psi ]
-
Port Fitting : 7/16-20 UNF MALE SAE J1926-2 STRT THD O-RING 90SH
-
Electrical Connection : Packard B
-
Sensor Options : No Snubber, Adhesive Label
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_20012880-00_H.pdf 3D
- Customer View Model ENG_CVM_CVM_20012880-00_H.2d_dxf.zip English
- ENG_CVM_CVM_20012880-00_H.3d_igs.zip English
- ENG_CVM_CVM_20012880-00_H.3d_stp.zip English
Datasheets & Catalog Pages
- M3200 Pressure Transducer ENG_DS_M3200_A20.pdf English
