Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

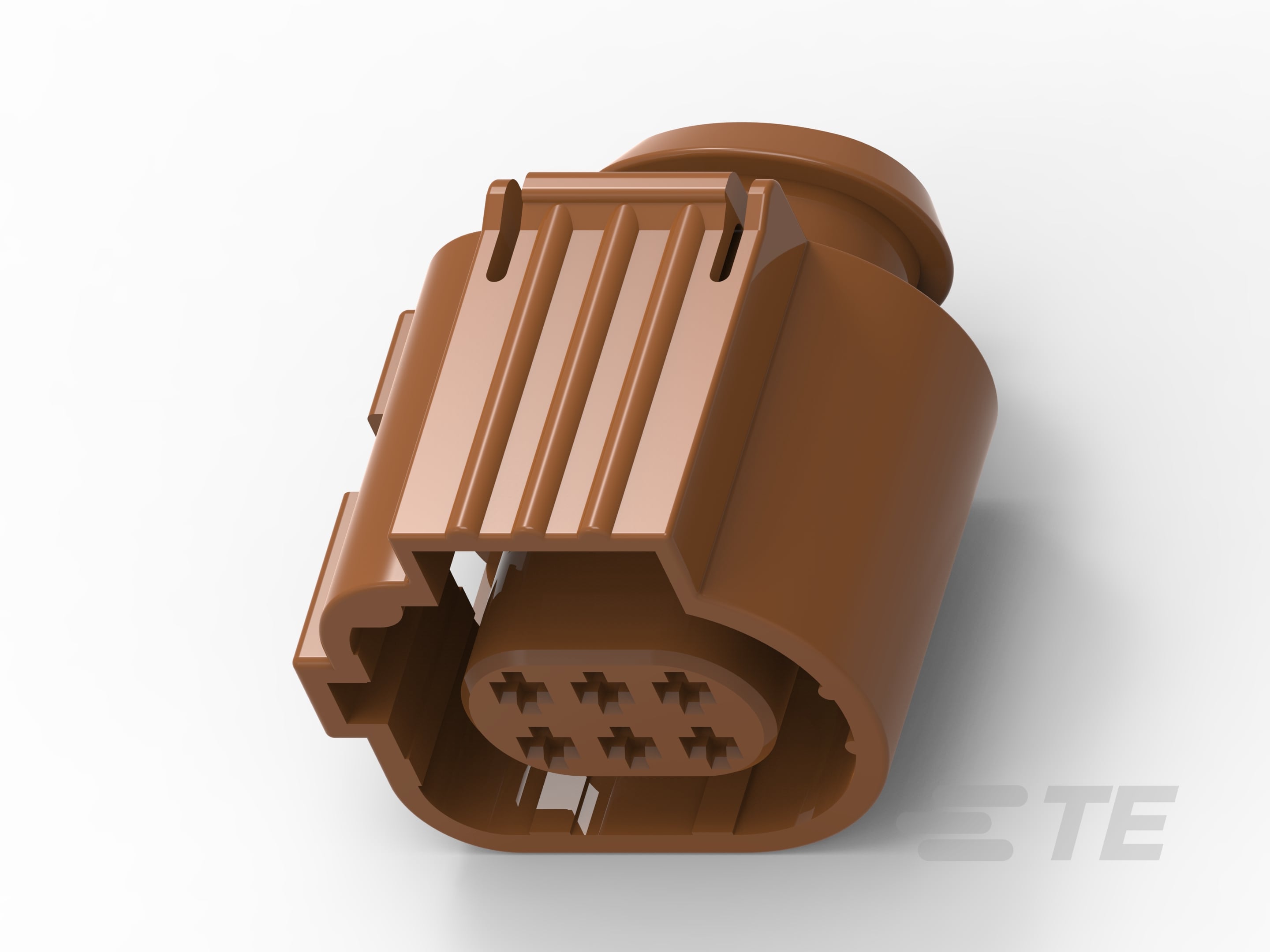

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 6

• Number of Rows : 2

• Cable Exit Angle : 180°

• Primary Product Color : Brown

• Connector & Keying Code : B

• Contact Type : Receptacle

• Contact Size : 1.6mm

• Mating Tab Width : 1.6 mm [ .06 in ]

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : PA 66 GF15

• Centerline (Pitch) : 4 mm [ .16 in ]

• Connector Height : 24.15 mm [ .95 in ]

• Product Length : 28.3 mm [ 1.11 in ]

• Product Width : 25.7 mm [ 1.01 in ]

• Row-to-Row Spacing : 4 mm [ .157 in ]

• Circuit Application : Power

• Packaging Method : Bag

• Packaging Quantity : 1200
