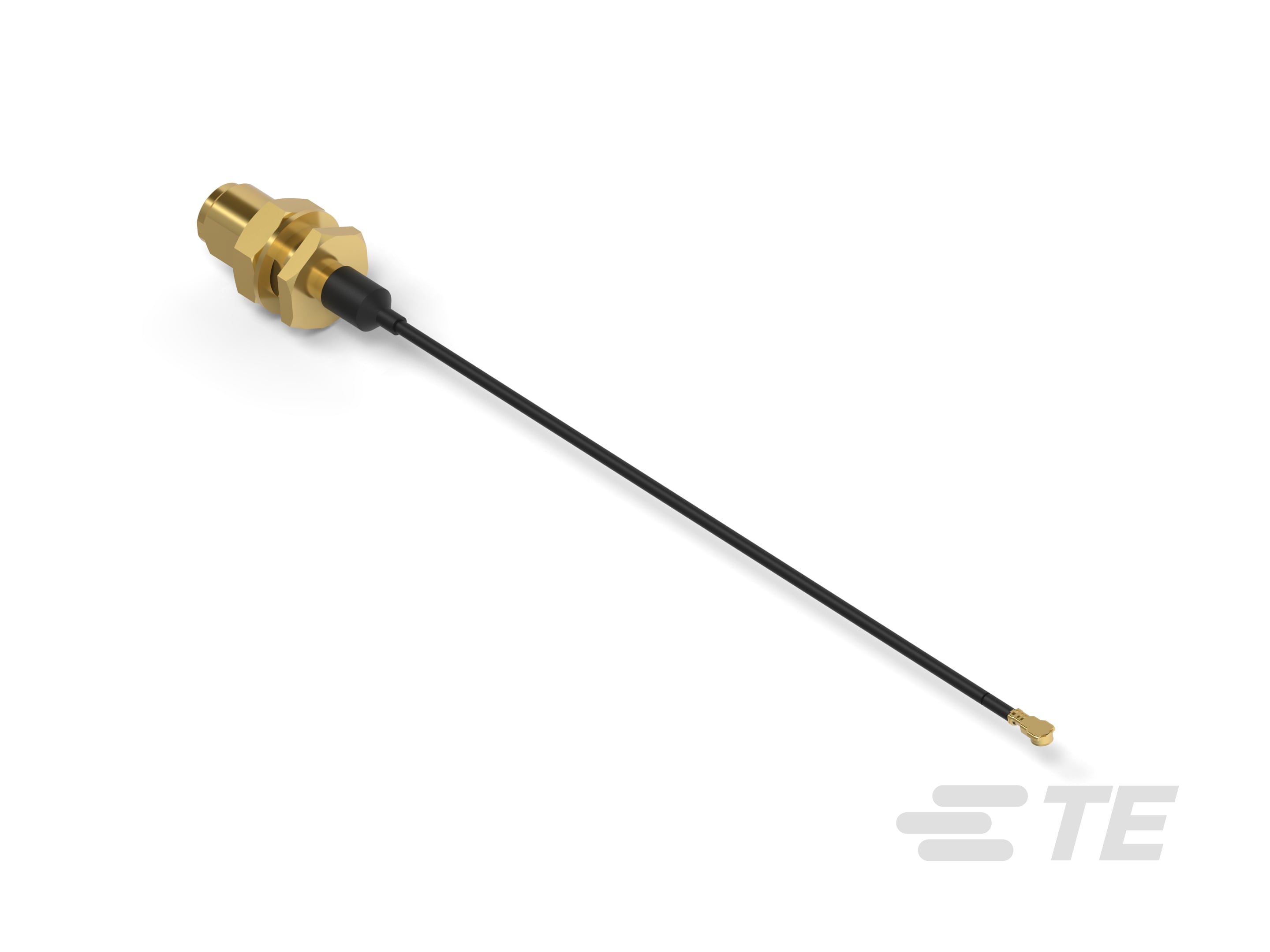

SMA Bulkhead to UMCC Cable Assembly, .1 m [.33 ft], Black Cable, 0 – 9 GHz Operating Frequency, 50 ohm, FEP, 32 AWG, 1.13 mm [.044 in] Diameter
2016694-2
SMA Bulkhead to UMCC Cable Assembly, .1 m [.33 ft], Black Cable, 0 – 9 GHz Operating Frequency, 50 ohm, FEP, 32 AWG, 1.13 mm [.044 in] Diameter
- TE Internal #: 2016694-2
- TE Internal Description: RF CA,UMCC4 TO SMA JACK,1.13MM,L100MM
-
Operating Temperature Range : -45 – 85 °C [ -49 – 185 °F ]
-
Wire Size (AWG): 32
-
Jacket Material : FEP
-
Operating Voltage (V): 15
-
Cable Assembly (End A) : SMA Jack
Documents
Product Drawings
- RF CA,SMA BULKHEAD TO UMCC GEN4 WITH 1.13 CABLE ENG_CD_2016694_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2016694-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2016694-2_A.2d_dxf.zip English
- ENG_CVM_CVM_2016694-2_A.3d_igs.zip English
- ENG_CVM_CVM_2016694-2_A.3d_stp.zip English
Product Specifications
- Qualification Test Report ENG_SS_501-649_C.pdf English
