Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

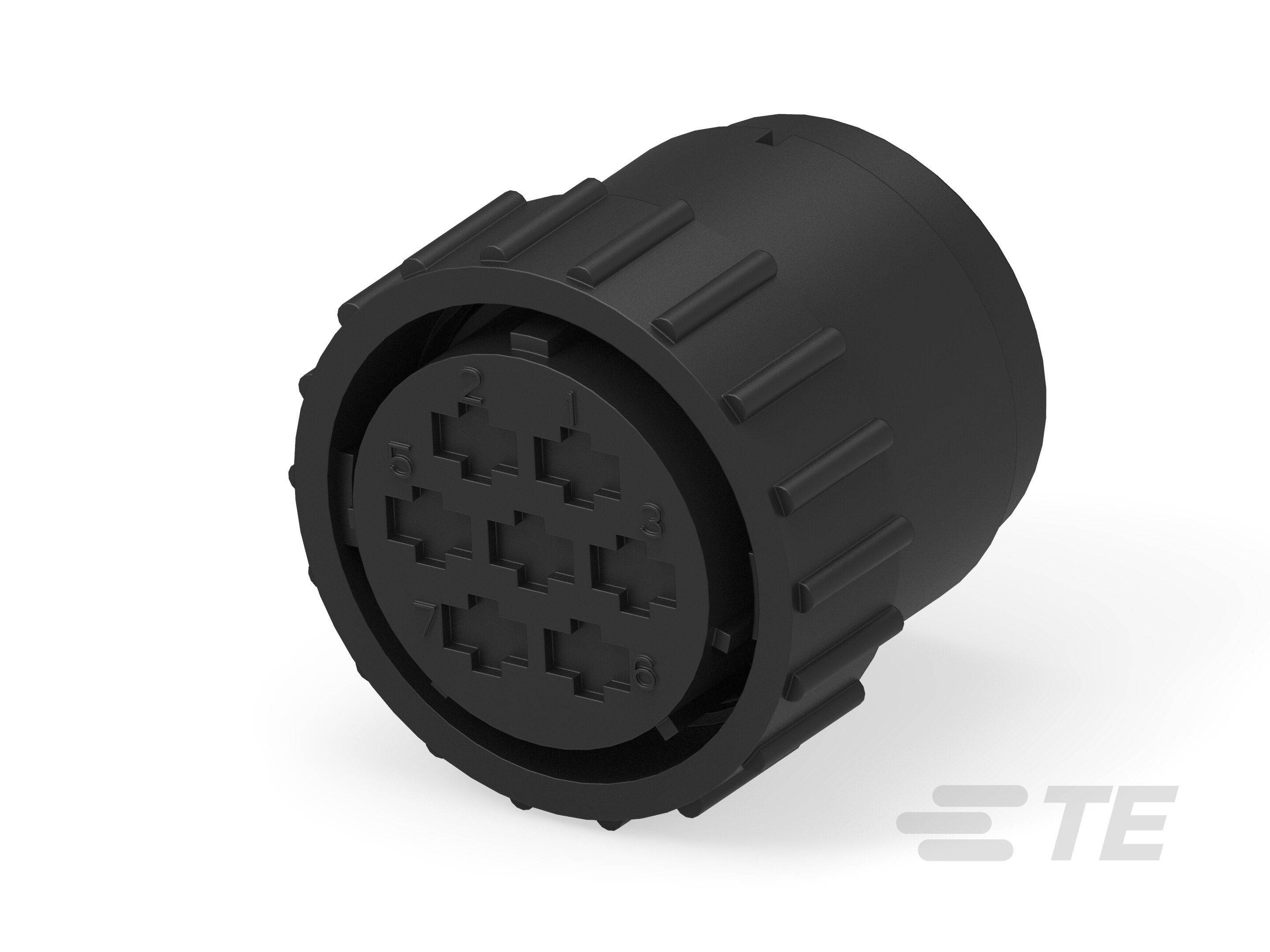

• Connector Product Type : Housing

• Connector System : Wire-to-Wire

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Plug

• Circular Connector Shell Type : All Plastic

• Reverse Numbering : Without

• Number of Positions : 7

• Number of Power Positions : 7

• Number of Signal Positions : 0

• Operating Voltage (VDC): 600

• Operating Voltage (VAC): 600

• Reverse Gender : No

• Contact Type : Socket

• Contact Current Rating (Max) (A): 32

• Contact Protection : With

• Termination Method to Wire & Cable : Crimp

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Panel Mount Feature Type : Flange

• Thread Size : 1-3/8 - 18 UNEF-2A

• Mating Retention Type : Threaded Coupling

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Retention : With

• Panel Mount Feature : With

• Body Orientation : Straight

• Housing Color : Black

• Housing Material : Nylon 6/6 GF

• Circular Connector Shell Size : 23

• Compatible Insulation Diameter Range : 5.59 mm [ .22 in ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Fluid Resistance : None

• Circuit Application : Power

• Shielded : No

• UL Flammability Rating : UL 94V-0
