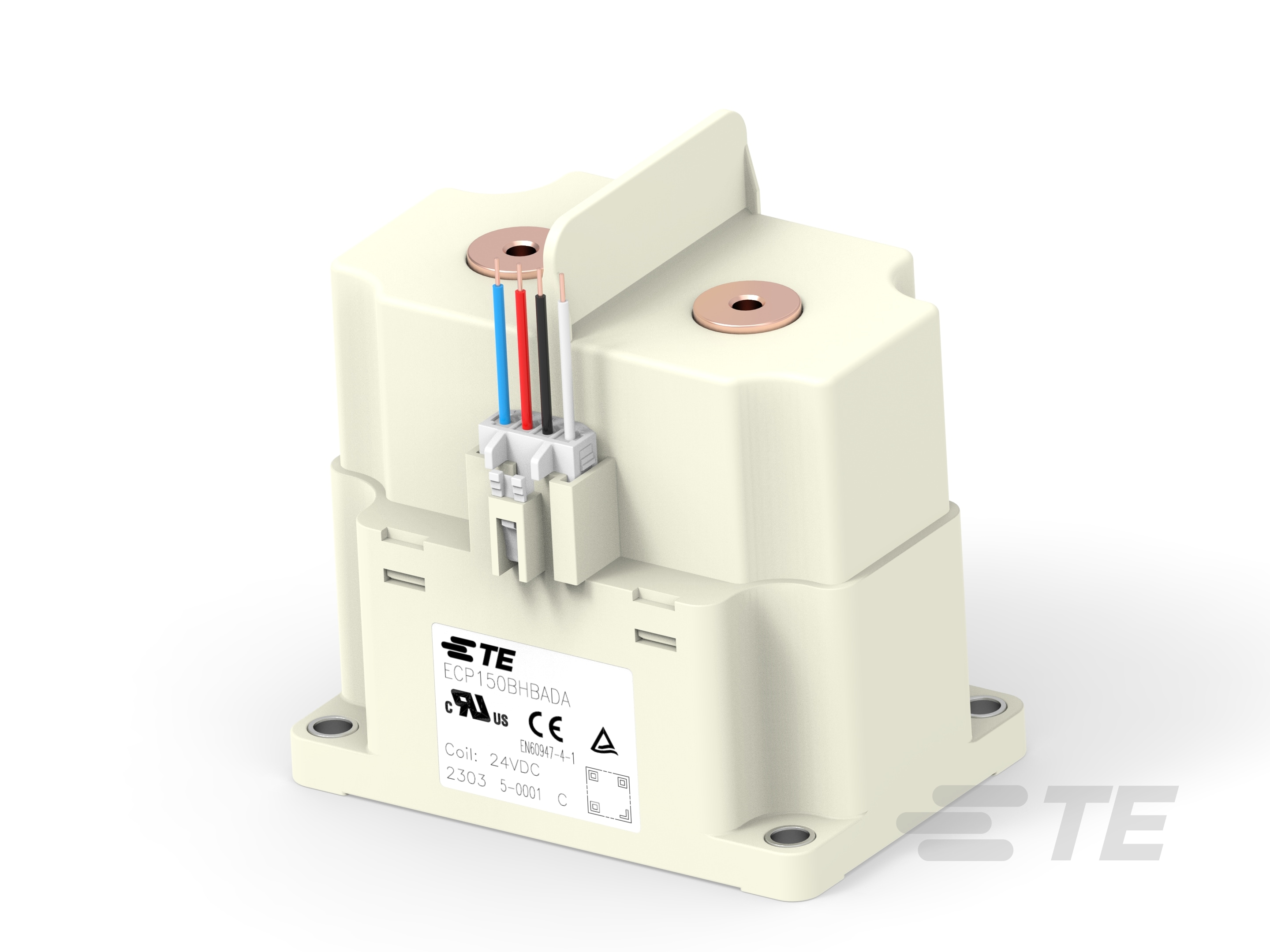

General Purpose Contactor, DC, 1 Form X SPST-NO-DM, 350 A Contact Rating, 24 VDC Coil Voltage, Panel Mount, Hermetically Sealed, ECP150B
2071568-2
General Purpose Contactor, DC, 1 Form X SPST-NO-DM, 350 A Contact Rating, 24 VDC Coil Voltage, Panel Mount, Hermetically Sealed, ECP150B
-
- ECP150B
- TE Internal #: 2071568-2
- TE Internal Description: ECP150BHBADA
- All High Voltage Contactors, hermetically sealed, ceramic technology (10)
-
Relay & Contactor Type : General Purpose Contactor
-
Current Type : DC
-
Contact Arrangement : 1 Form X SPST-NO-DM
-
Contact Current Rating (A): 350
-
Coil Voltage Rating (VDC): 24
