207387-2

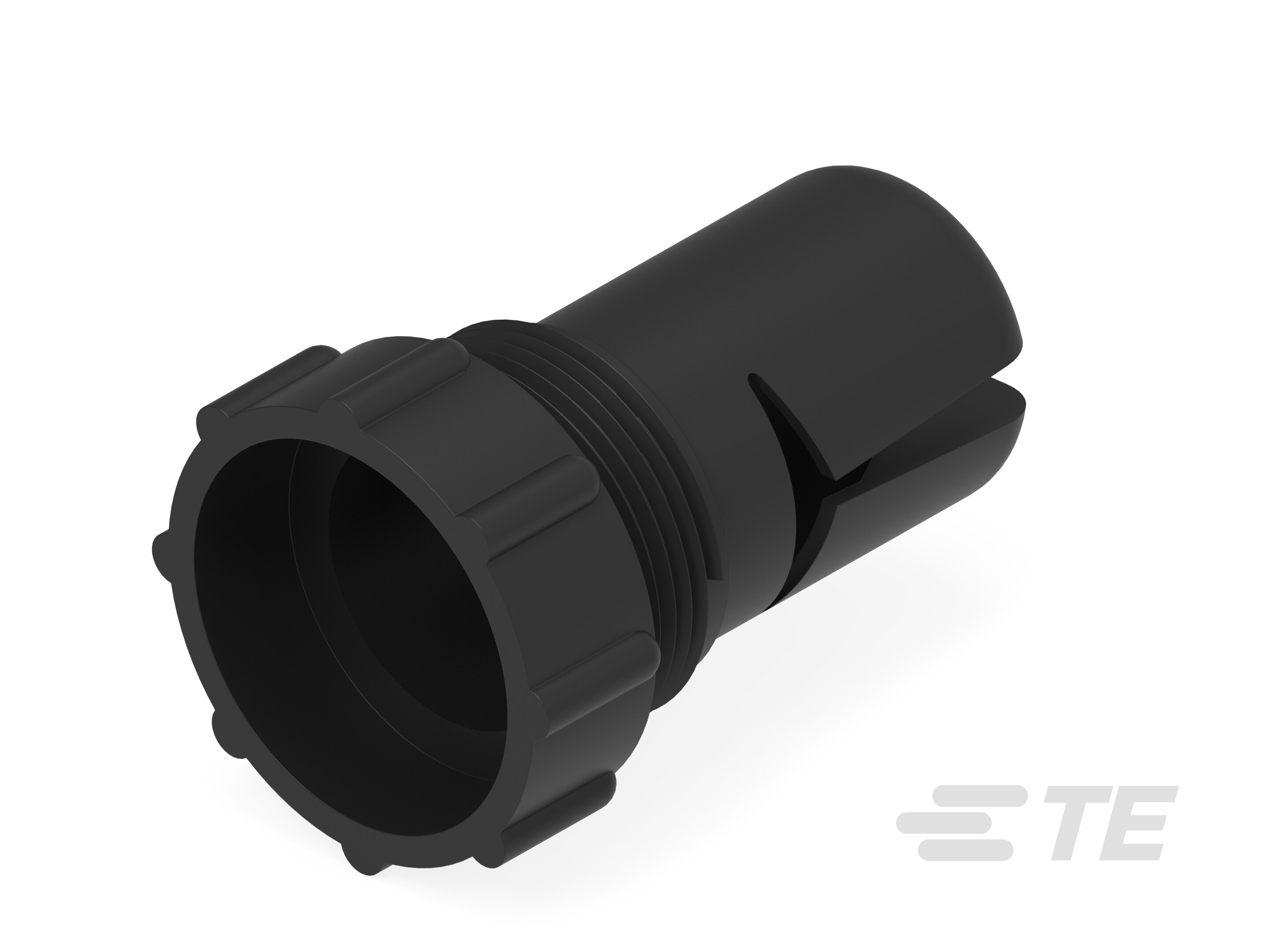

Cable Grip, Thermoplastic, Black, 17 Shell Size, 6.35 – 8.89 mm [.25 – .35 in] Cable Entry, AMP Circular Plastic Connectors
207387-2
Cable Grip, Thermoplastic, Black, 17 Shell Size, 6.35 – 8.89 mm [.25 – .35 in] Cable Entry, AMP Circular Plastic Connectors
-
- AMP
- AMP Circular Plastic Connectors
- TE Internal #: 207387-2
- TE Internal Description: CABLE GRIP,SZ 17,CPC
- Alias #: 030-0087-00
-
Strain Relief Accessory Type : Cable Grip
-
Primary Product Material : Thermoplastic
-
Primary Product Color : Black
-
Compatible With Connector Shell Size : 17
-
Cable Entry Diameter : 6.35 – 8.89 mm [ .25 – .35 in ]
Documents
Product Drawings
- CABLE GRIP, INTERNAL, SIZE 17, CPC ENG_CD_207387_H1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_207387-2_H.pdf English
- 3D_CVM_CVM_207387-2_N.pdf 3D
- Customer View Model ENG_CVM_207387-2_H.2d_dxf.zip English
- ENG_CVM_207387-2_H.3d_igs.zip English
- ENG_CVM_207387-2_H.3d_stp.zip English
- ENG_CVM_CVM_207387-2_N.2d_dxf.zip English
- ENG_CVM_CVM_207387-2_N.3d_igs.zip English
- ENG_CVM_CVM_207387-2_N.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-7582_E.pdf English
Agency Approvals
- CSA Certificate ENG_AAD_CSA_164196_6233_1505185_B.pdf English
- ENG_AAD_CSA_CERT_1505185_LR_7189_C1_1.pdf English
