2109134-1

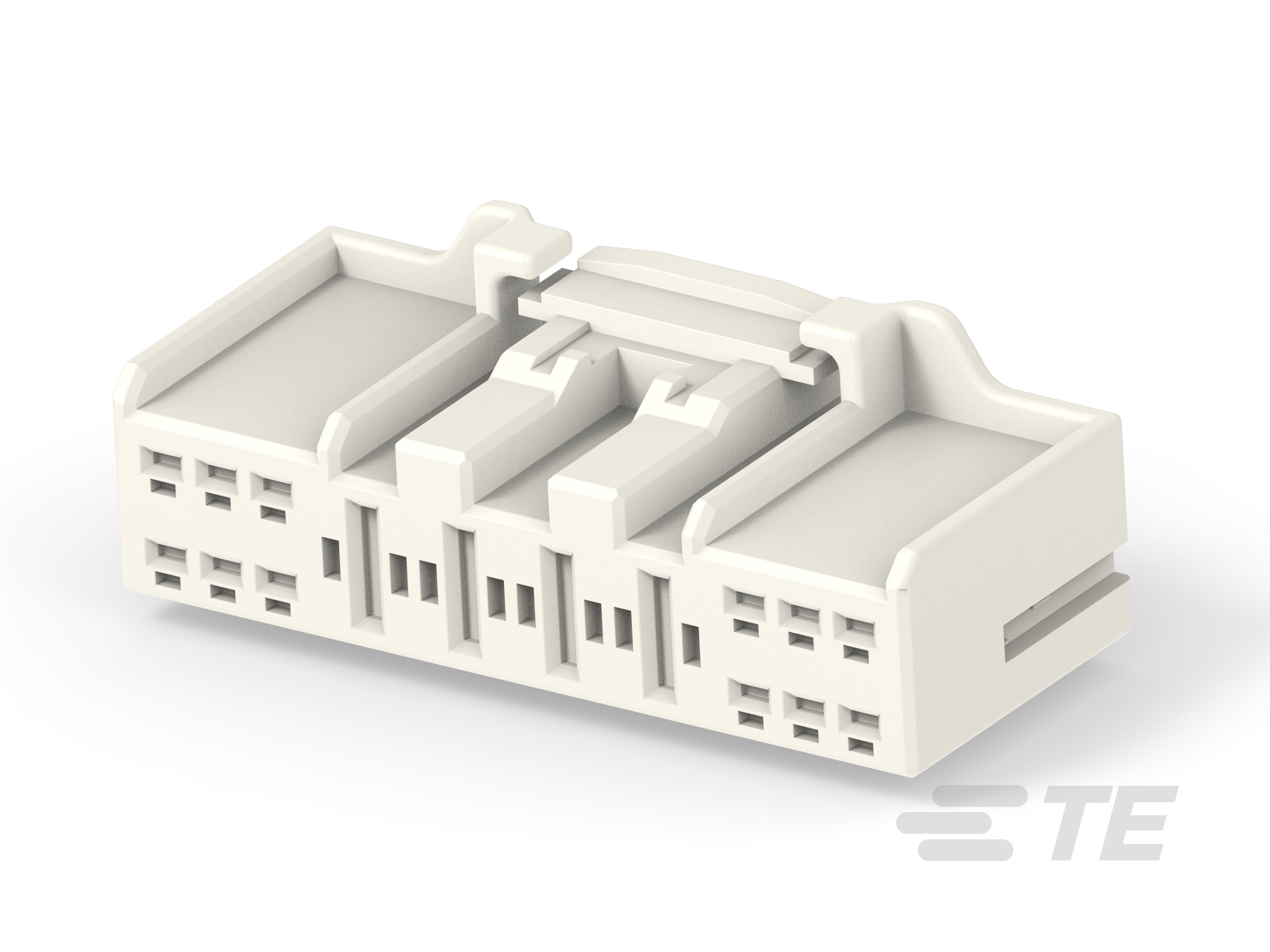

16 Position Housing, Housing for Female Terminals, 3.5 mm [.137 in] Centerline, Natural, Wire & Cable, Signal, Multilock Connector System
2109134-1
16 Position Housing, Housing for Female Terminals, 3.5 mm [.137 in] Centerline, Natural, Wire & Cable, Signal, Multilock Connector System
-
- Multilock Connector System
- TE Internal #: 2109134-1
- TE Internal Description: 060/250 HYB 16P PLUG ASSY
- All MULTILOCK, CONNECTOR HOUSING (146)
-
Number of Positions : 16
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Tab Width : 1.5 mm [ .059 in ]
-
Centerline (Pitch) : 3.5 mm [ .137 in ]
-
Sealable : No
Documents
Product Drawings
- 060/250 HYB 16P PLUG ASSY ENG_CD_2109134_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2109134-1_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2109134-1_B.2d_dxf.zip English
- ENG_CVM_CVM_2109134-1_B.3d_igs.zip English
- ENG_CVM_CVM_2109134-1_B.3d_stp.zip English
Datasheets & Catalog Pages
- MULTILOCK Connector System ENG_CS_1654355_MULTILOCK_0911.pdf English
Product Specifications
- 060 250 HYB 16P ENG_SS_108-61519_A.pdf English
