2109340-2

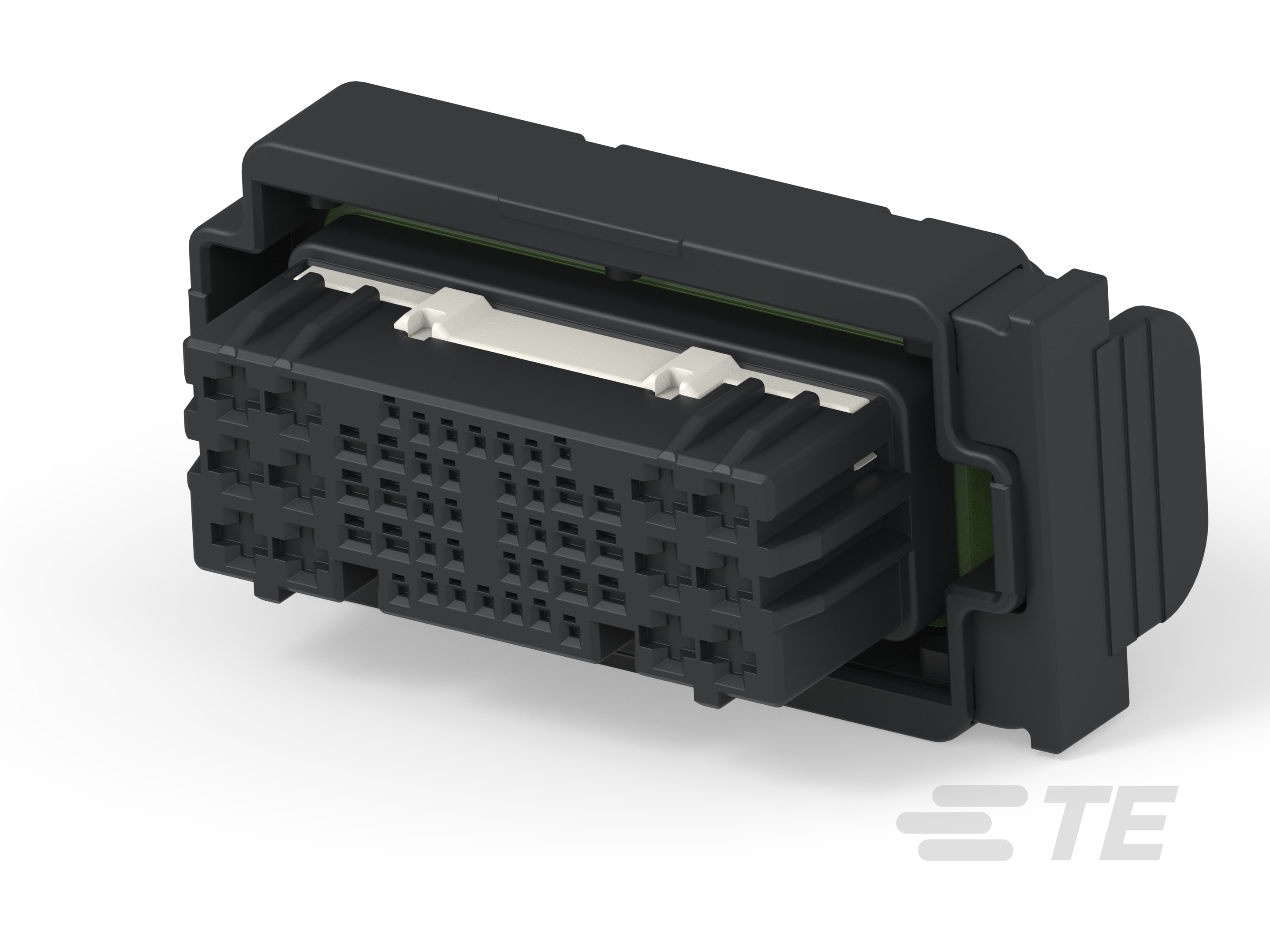

50 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.3 mm / 5 mm [.09 in / .19 in] Centerline, Sealable, Multilock Connector System
2109340-2
50 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.3 mm / 5 mm [.09 in / .19 in] Centerline, Sealable, Multilock Connector System
-
- Multilock Connector System
- TE Internal #: 2109340-2
- TE Internal Description: 025/060/110 DOOR 50P PLUG ASSY
- All MULTILOCK, CONNECTOR HOUSING (125)
-
Number of Positions : 50
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Tab Width : .64 mm [ .025 in ]
-
Connector System : Wire-to-Wire
-
Centerline (Pitch) (mm): 2.3, 5
-
Centerline (Pitch) (in): .09, .19
Documents
Product Drawings
- Plug HSG Ass'y for HYB DOOR 50P ENG_CD_2109340_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2109340-2_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2109340-2_B.2d_dxf.zip English
- ENG_CVM_CVM_2109340-2_B.3d_igs.zip English
- ENG_CVM_CVM_2109340-2_B.3d_stp.zip English
Datasheets & Catalog Pages
- MULTILOCK Connector System ENG_CS_1654355_MULTILOCK_0911.pdf English
Product Specifications
- Product Specification ENG_SS_108-61465_A.pdf English
