2112293-1

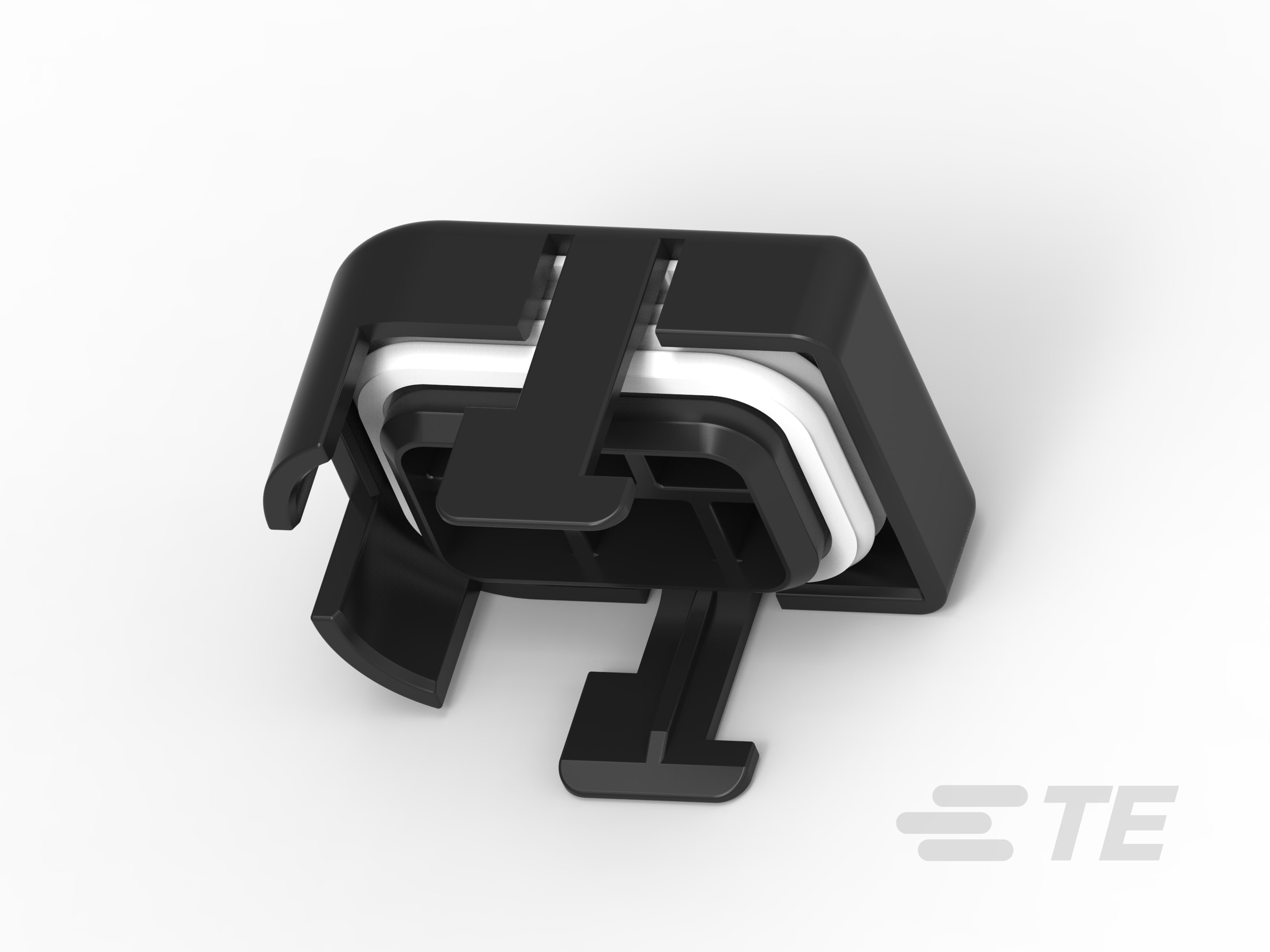

Cover, Cable Exit Angle 180°, Black, PA, 2 / 6 / 7 Position, Heavy Duty Sealed Connector Series, Automotive Connector Caps & Covers
2112293-1
Cover, Cable Exit Angle 180°, Black, PA, 2 / 6 / 7 Position, Heavy Duty Sealed Connector Series, Automotive Connector Caps & Covers
-
- AMP
- Heavy Duty Sealed Connector Series
- TE Internal #: 2112293-1
- TE Internal Description: PROTECTION CAP,GROUP C,ASSY
- All Heavy Duty Sealed Connector Series Cap (10)
-
Packaging Method : Box
-
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
-
Primary Product Color : Black
-
Primary Product Material : PA
-
Operating Temperature (Max) (°C): 75, 85, 110, 90, 105, 120, 100, 70, 80
-
Operating Temperature (Max) (°F): 194, 158, 230, 176, 221, 185, 212, 167, 248
Documents
Product Drawings
- PROTECTION CAP. GROUP C, ASSY Schutzkappe, Gruppe C, ASSY HDSCS - GROUP C ENG_CD_2112293_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2112293-1_B_c-2112293-1-b-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_2112293-1_B_c-2112293-1-b.2d_dxf.zip English
- ENG_CVM_CVM_2112293-1_B_c-2112293-1-b.3d_igs.zip English
- ENG_CVM_CVM_2112293-1_B_c-2112293-1-b.3d_stp.zip English
Datasheets & Catalog Pages
- Heavy Duty Sealed Connector Series ENG_CS_ict-hdscs-cat-a4-1-1773971-7-en_A.pdf English
- HDSCS Catalog ENG_DS_1-1773971-7_A.pdf English
- ICT Terminals and Connectors Catalogue ENG_DS_1-1773950-7_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-18756_F1.pdf English
- Product Specification ENG_SS_108-94020_E2.pdf English
