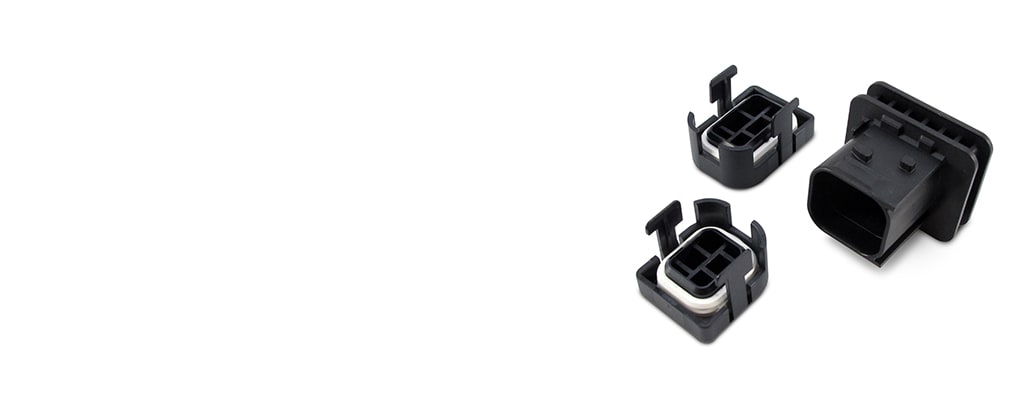

Heavy Duty Sealed Connector Series Cap
- AMP
- Heavy Duty Sealed Connector Series
Introducing the Heavy Duty Sealed Connector Series Cap. Designed to protect industrial and commercial transportation connections in challenging environments, these caps offer robust protection against moisture, dirt, and contaminants. With a cable exit angle of 180° and a wide operating temperature range, they are suitable for various applications. Built with durable materials and meeting stringent ratings, our connector caps are a reliable solution for maintaining the integrity of heavy-duty equipment. Explore the range to find configurations that best suit your specific needs.
Product Features
-
Packaging Method : Box
-
Operating Temperature Range (°C): -40 – 140, -40 – 120
-
Operating Temperature Range (°F): -40 – 284, -40 – 248
-
Primary Product Color : Black
-
Primary Product Material : PBT GF, PA, PA GF
-
Strain Relief : Without
Overview
Key Benefits
Heavy Duty Sealed Connector Series Cap
- Protects Connections: Shields connectors from moisture, dirt, and contaminants.
- Durable Construction: Made from robust thermoplastic materials for enhanced longevity.
- Versatile Application: Suitable for various industrial and transportation settings.
- Wide Temperature Range: Operates effectively from -40°C to 140°C.
- Multiple Configurations: Available in 2 to 18 positions to meet specific needs.
- Easy Installation: Designed for straightforward application and removal.
- High Protection Rating: Rated IP67 and IP6K9K with cover, enabling resistance to water and dust ingress.
Our Heavy Duty Sealed Connector Series Protection Caps are available for tab and receptacle housings.
Key Features
Heavy Duty Sealed Connector Series Cap
| Feature | |
|---|---|
| Protection Rating |
IP67 and IP6K9K with cover, resistant to water and dust ingress. |
| Operating Temperature |
Functional from -40°C to 140°C (-40°F to 284°F). |
| Material |
Constructed from durable thermoplastic materials, including glass-filled PBT. |
| Cable Exit Angle |
Designed with a 180° in-line cable exit angle for straightforward routing. |
| Position Availability |
Available in configurations of 2, 3, 4, 6, 7, 8, 10, 12, 15, 16 & 18 positions. |
| Flammability Rating |
Meets UL 94-HB and UL 94 V-0 standards for material flammability resistance. |
| Application Flexibility |
Suitable for use with both housing for male and female terminals. |
| Strain Relief |
Design available without strain relief for applications requiring flexible installation options. |
Real World Applications
Heavy Duty Sealed Connector Series Cap
- Trucking and Buses: Protects electrical connections in trucks and buses from road spray and environmental contaminants.
- Construction Equipment: Shields critical connectors in heavy machinery from dust, debris, and harsh weather conditions.
- Agricultural Machinery: Maintains reliable connections in farming equipment exposed to dirt and moisture.
- Marine and Recreational Vehicles: Offers protection for connectors on boats and recreational vehicles against water and salt exposure.
- Mining and Off-Highway Vehicles: Safeguards electrical interfaces in mining equipment and off-highway vehicles from extreme environmental conditions.
- Emergency Vehicles: Protects the electrical systems of emergency vehicles that operate in demanding and unpredictable environments.
- Forestry Equipment: Preserves the functionality of connectors in forestry machinery used in rugged, outdoor settings.
- Motorcycles and ATVs: Provides protection for electrical connections in motorcycles and all-terrain vehicles exposed to diverse weather and terrain.
FAQ
Heavy Duty Sealed Connector Series Cap
Q: What are the Heavy Duty Sealed Connector’ key features?
A: Heavy Duty Sealed Connector Series Key Features:
- Accepts contact sizes 6.3/4.8K (up to 40 amps), 2.8 (up to 40 amps), and 1.5K (up to 20 amps)
- 6.00-0.20 mm²
- 2, 3, 4, 6, 7, 8, 10, 12, 15, 16, and 18 cavity arrangements
- In-line or flange mount
- Rectangular, thermoplastic housing
- Slide lock for mating
- Integrated secondary lock confirms contact alignment and retention
- Meet CAN Bus protocol specifications according to SAE J1939 standard
- Available accessories: Backshells, fixing slides, protection caps, blind plugs and sealing plugs
Q: How much dielectric withstanding voltage is for the Heavy Duty Sealed Connector Series?
A: No flashover or breakdown between adjacent contacts and outer contour of the housing permitted at 500 volts AC and 50 or 60 Hz for 60 seconds.
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Sealable Yes
-
Protection & Strain Relief Accessory Type Cover, Cover - Cable Exit
Configuration Features
-
Number of Positions 2, 3, 4, 6, 7, 8, 10, 12, 15, 16, 18
Body Features
-
Primary Product Color Black
-
Primary Product Material PBT GF, PA, PA GF
-
Cable Exit Angle 180°
Mechanical Attachment
-
Strain Relief Without
Usage Conditions
-
Operating Temperature Range (°C) -40 – 140, -40 – 120
-
Operating Temperature Range (°F) -40 – 284, -40 – 248
-
Operating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140
-
Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284
-
Compatible With Connector Style Housing For Female Terminals, Housing For Male Terminals
Industry Standards
-
UL Flammability Rating UL 94V-0, UL 94HB
Packaging Features
-
Packaging Method Box
-
Packaging Quantity 400, 500, 600, 750, 1000
Other
-
Serviceable Yes
Reference Number
-
TE Internal Number CAT-H3399-C1748
