2112297-1

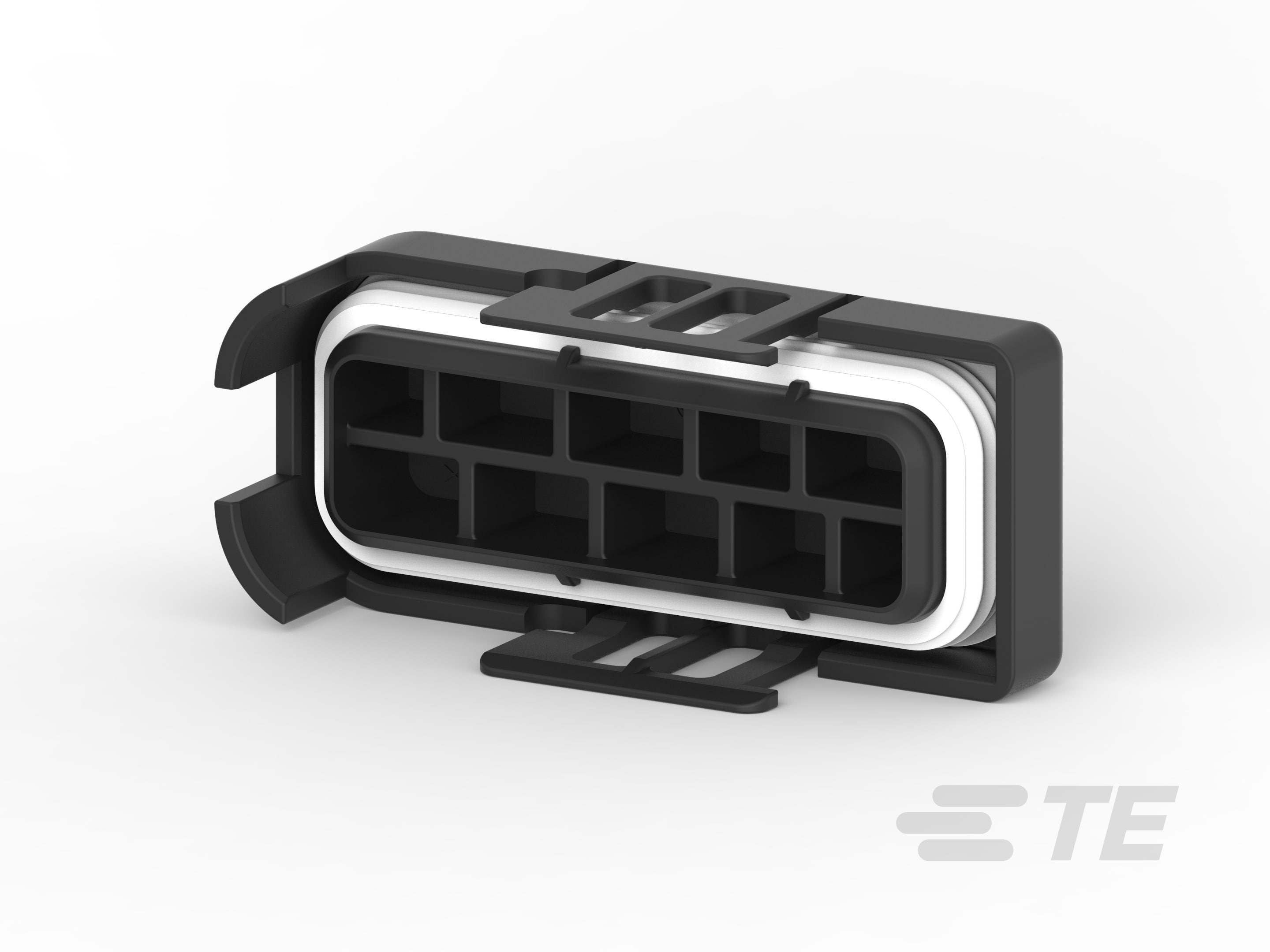

Cover, Cable Exit Angle 180°, Black, PA, 12 / 16 / 18 Position, -40 – 120 °C [-40 – 248 °F], Heavy Duty Sealed Connector Series
2112297-1
Cover, Cable Exit Angle 180°, Black, PA, 12 / 16 / 18 Position, -40 – 120 °C [-40 – 248 °F], Heavy Duty Sealed Connector Series
-
- AMP
- Heavy Duty Sealed Connector Series
- TE Internal #: 2112297-1
- TE Internal Description: PROTECTION CAP,GROUP E,ASSY
- All Heavy Duty Sealed Connector Series Cap (10)
-
Protection & Strain Relief Accessory Type : Cover
-
Cable Exit Angle : 180°
-
Strain Relief : Without
-
Primary Product Color : Black
-
Primary Product Material : PA
Documents
Product Drawings
- PROTECTION CAP, GROUP E, ASSY Schutzkappe, Gruppe E, ASSY HDSCS - GROUP E ENG_CD_2112297_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2112297-1_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2112297-1_B.2d_dxf.zip English
- ENG_CVM_CVM_2112297-1_B.3d_igs.zip English
- ENG_CVM_CVM_2112297-1_B.3d_stp.zip English
Datasheets & Catalog Pages
- Heavy Duty Sealed Connector Series ENG_CS_ict-hdscs-cat-a4-1-1773971-7-en_A.pdf English
- HDSCS Catalog ENG_DS_1-1773971-7_A.pdf English
- ICT Terminals and Connectors Catalogue ENG_DS_1-1773950-7_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-18756_F1.pdf English
- Product Specification ENG_SS_108-94020_E2.pdf English
