2112303-1

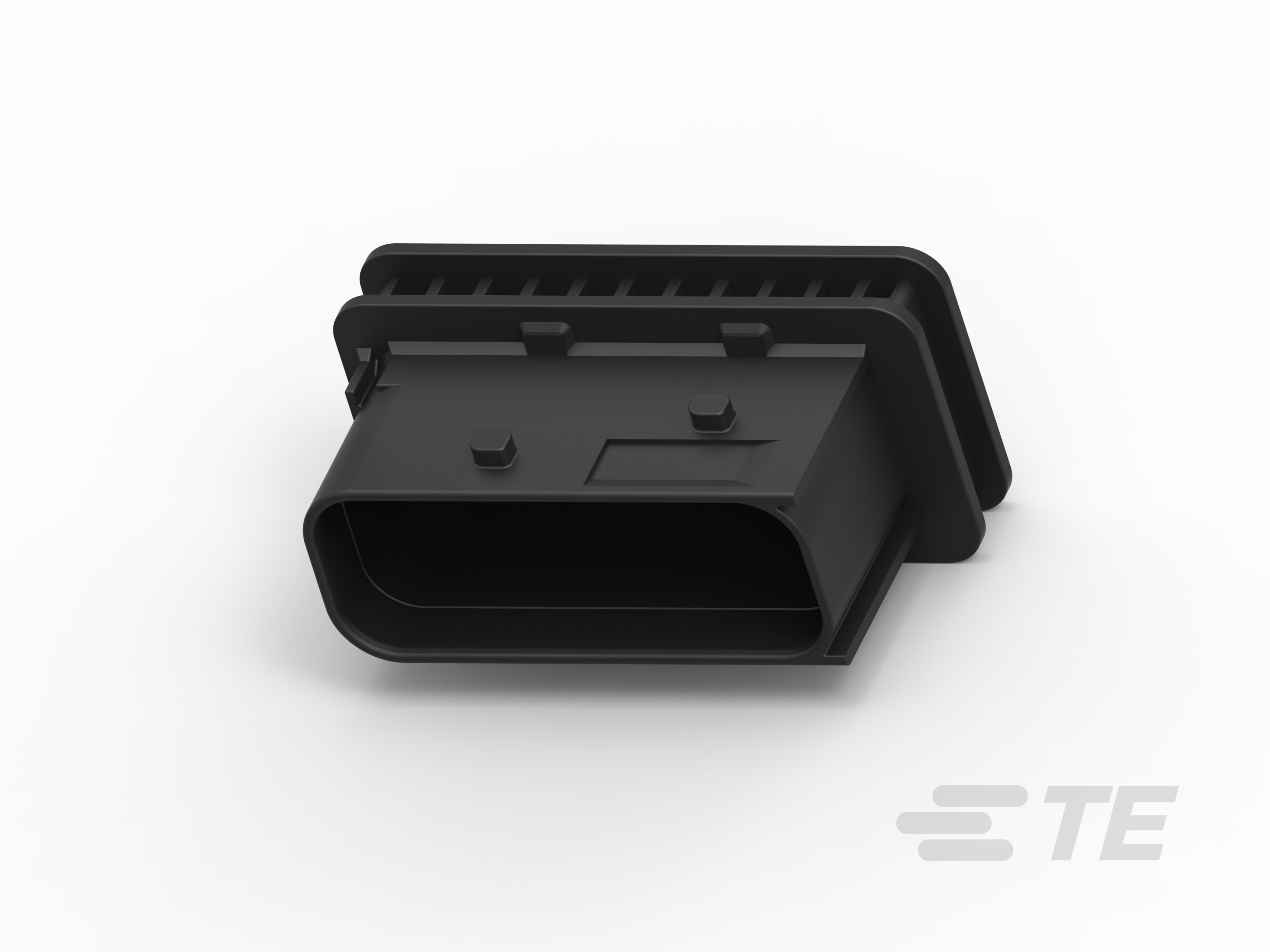

Cover, Cable Exit Angle 180°, Black, PBT GF, 12 / 15 / 4 Position, Heavy Duty Sealed Connector Series, Automotive Connector Caps & Covers
2112303-1
Cover, Cable Exit Angle 180°, Black, PBT GF, 12 / 15 / 4 Position, Heavy Duty Sealed Connector Series, Automotive Connector Caps & Covers
-
- AMP
- Heavy Duty Sealed Connector Series
- TE Internal #: 2112303-1
- TE Internal Description: PROTECTION CAP, FOR REC.HSG GROUP E
- All Heavy Duty Sealed Connector Series Cap (10)
-
Packaging Method : Box
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Primary Product Color : Black
-
Primary Product Material : PBT GF
-
Operating Temperature (Max) (°C): 125, 105, 85, 130, 90, 80, 75, 140, 120, 110, 100, 70
-
Operating Temperature (Max) (°F): 266, 158, 248, 230, 221, 212, 257, 167, 176, 185, 194, 284
