Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

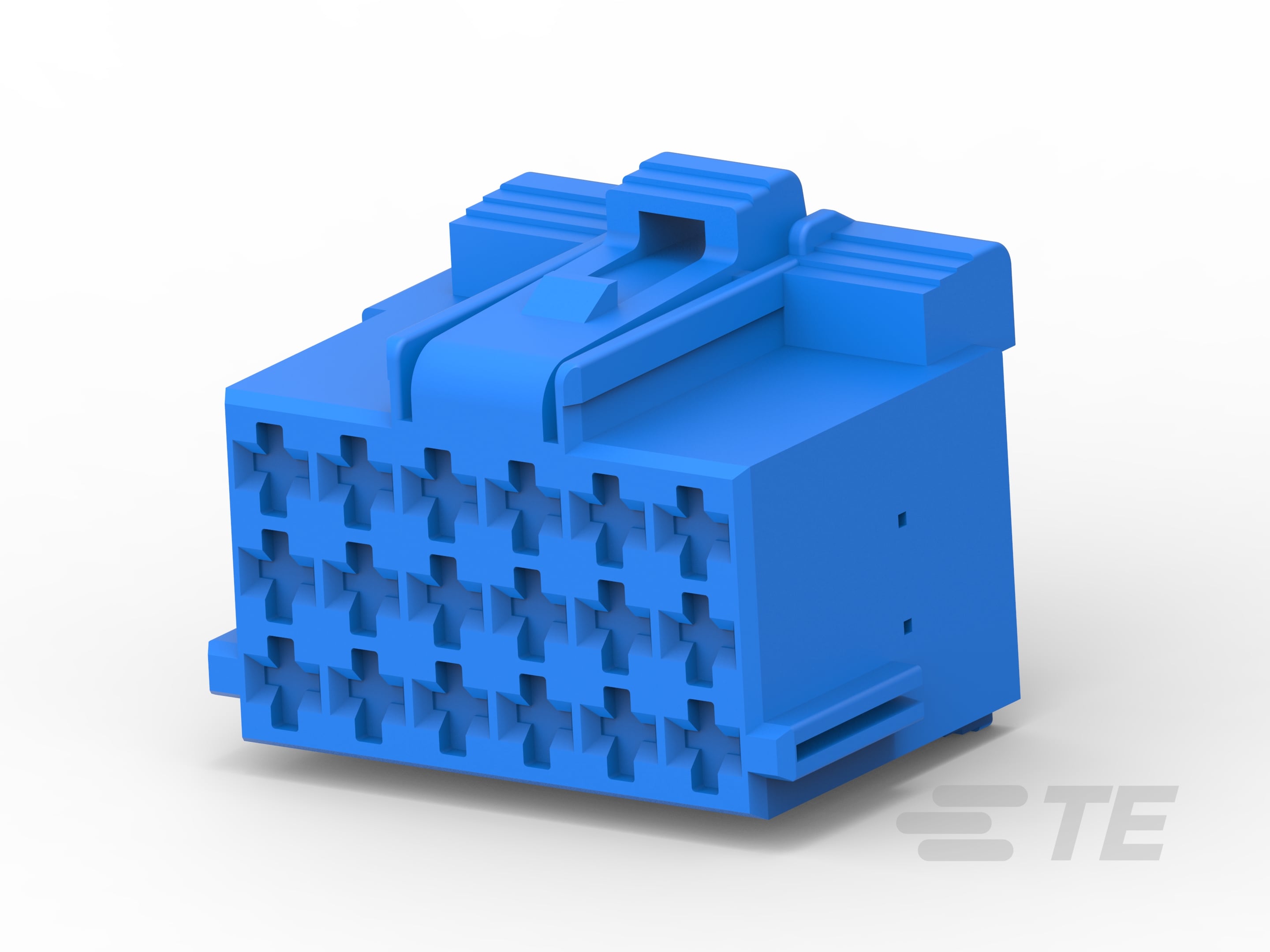

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Receptacle

• Connector System : Wire-to-Wire

• Sealable : No

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 2.8mm

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Current Rating (Max) (A): 40

• Housing Material : PA 66 GF15

• Centerline (Pitch) : 5 mm [ .197 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Blue

• Connector & Keying Code : C

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Quantity : 350

• Packaging Method : Package

• Row-to-Row Spacing : 5.5 mm [ .216 in ]

• Operating Voltage (VDC): 28

• IP Rating : IP30

• Number of Positions : 18

• Number of Rows : 3

• Operating Temperature (Max) : 120 °C [ 248 °F ]

• Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
