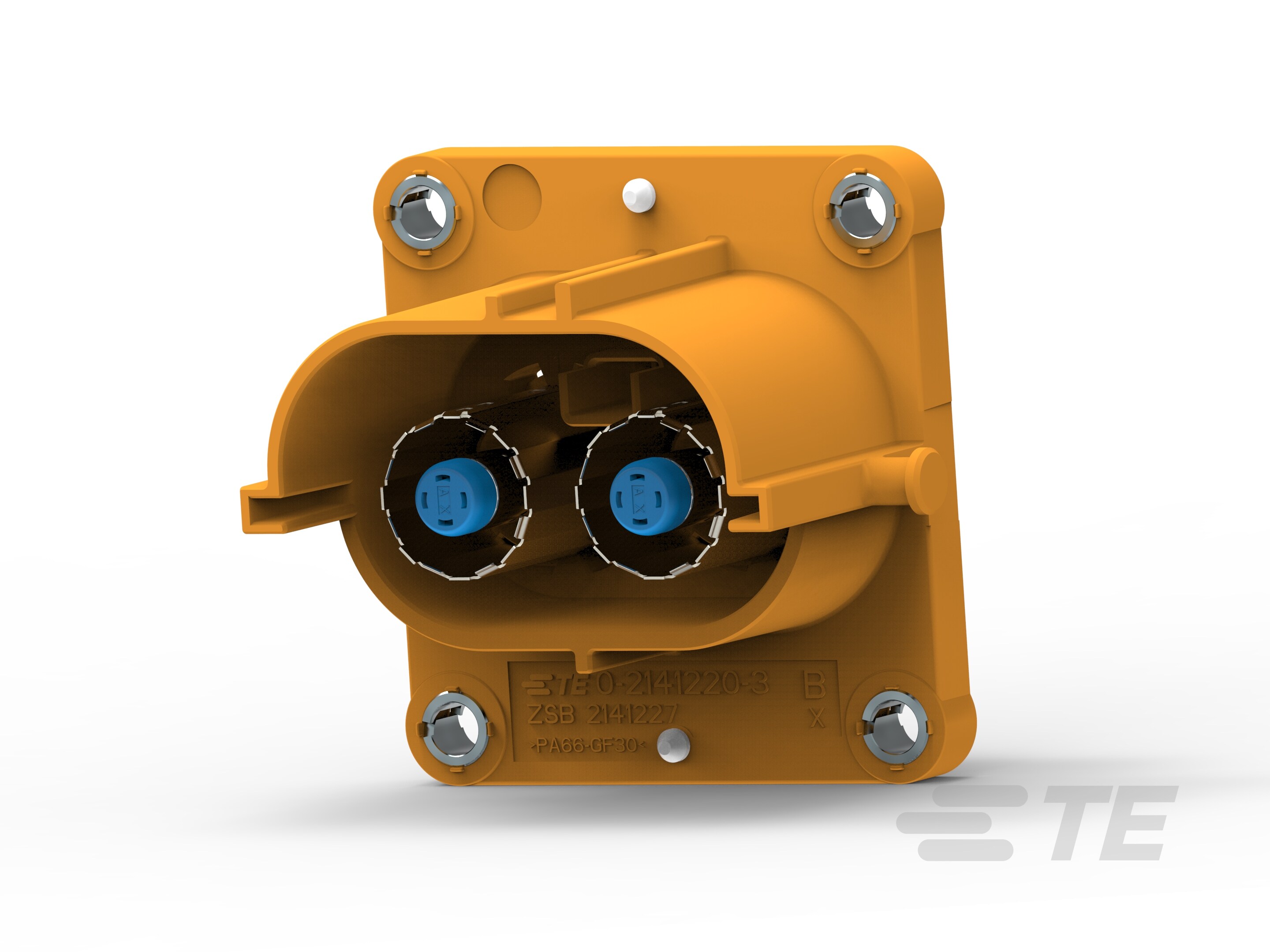

PCB Mount Header, Wire-to-Device, 2 Position, 11.5 mm [.452 in] Centerline, Fully Shrouded, Silver, Through Hole - Press-Fit, Sealable, AMP+ HVP800
2141227-3
PCB Mount Header, Wire-to-Device, 2 Position, 11.5 mm [.452 in] Centerline, Fully Shrouded, Silver, Through Hole - Press-Fit, Sealable, AMP+ HVP800
-
- AMP+
- AMP+ HVP800
- TE Internal #: 2141227-3
- TE Internal Description: 2POS,PIN DIA 8.0,PIN HSG,ASSY,SLD
- All High-Voltage Header (29)
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Primary Product Color : Orange
-
Operating Temperature (Max) (°C): 130, 125, 70, 80, 85, 105, 140, 100, 110, 120, 90
-
Operating Temperature (Max) (°F): 212, 176, 167, 248, 266, 257, 158, 230, 221, 185, 194, 284
-
Connector Shape : Rectangular
Documents
Product Drawings
- 2POS,PIN DIA 8.0,PIN HSG,ASSY,SLD 2pol,Rundkontakt 8.0,Stiftgeh.,Assy,gedich GER_CD_2141227_J4.pdf German
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2141227-3_D.pdf 3D
- Customer View Model ENG_CVM_CVM_2141227-3_D.2d_dxf.zip English
- ENG_CVM_CVM_2141227-3_D.3d_igs.zip English
- ENG_CVM_CVM_2141227-3_D.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-94153_C.pdf English
- Product Specification ENG_SS_108-94268_J.pdf English
