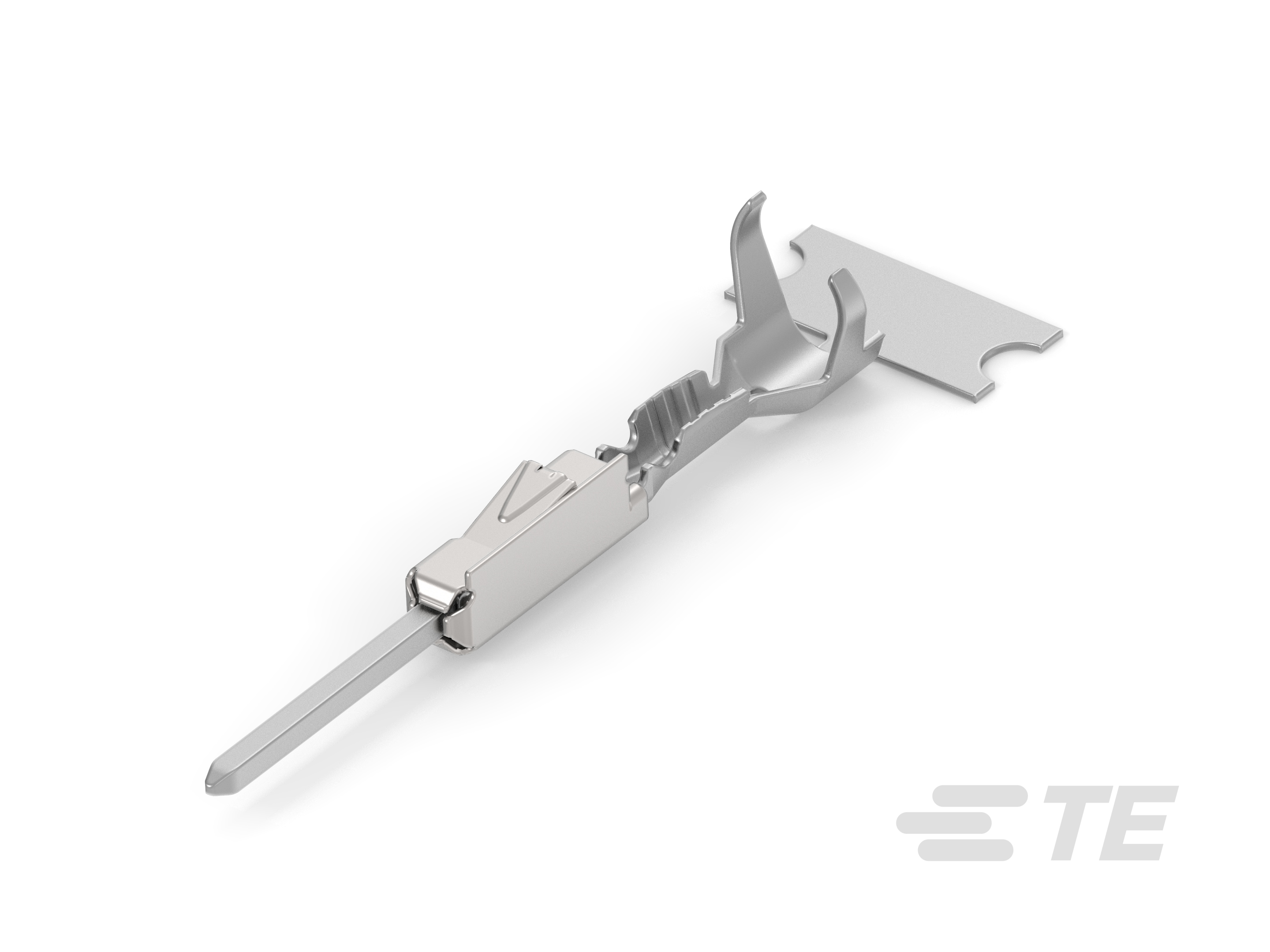

Tab Terminal, Tin (Sn), .63 mm [.025 in] Tab Width, .63 mm [.025 in] Tab Thickness, 28 – 24 AWG, .08 – .22 mm² Wire, Sealable, Single Wire Seal (SWS)
2141830-1
Tab Terminal, Tin (Sn), .63 mm [.025 in] Tab Width, .63 mm [.025 in] Tab Thickness, 28 – 24 AWG, .08 – .22 mm² Wire, Sealable, Single Wire Seal (SWS)
-
- MQS
- TE Internal #: 2141830-1
- TE Internal Description: MQS0,63 Sn tab LL EDS 0,08-0,22
- All MQS, RECEPTACLE AND TAB (98)
-
Terminal Type : Tab
-
Interface Plating : Tin (Sn)
-
Mating Tab Width : .63 mm [ .025 in ]
-
Mating Tab Thickness : .63 mm [ .025 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
Documents
Product Drawings
- MQS Tabellenzeichnung Stiftkontakt TABLE PIN CONTACT ENG_CD_929453_C33.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2141830-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2141830-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2141830-1_A.3d_igs.zip English
- ENG_CVM_CVM_2141830-1_A.3d_stp.zip English
Product Specifications
- Application Specification GER_SS_114-18022_N.pdf German
- ENG_SS_114-18025_Y1.pdf English
- ENG_SS_114-18022-20_L.pdf English
- Product Specification ENG_SS_108-10030_A.pdf English
- ENG_SS_108-18030_B.pdf English
