2213858-1

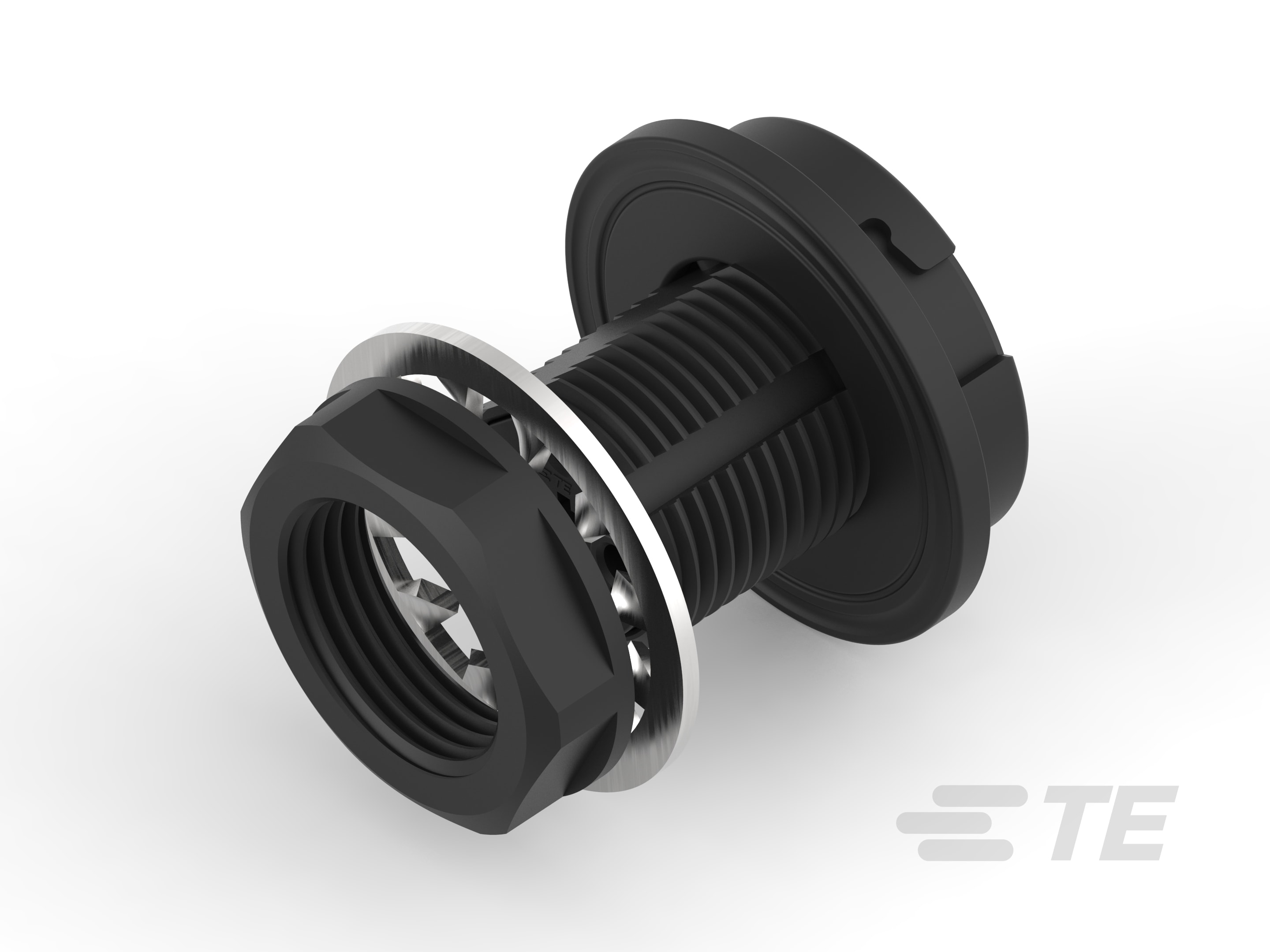

Connector, Black, Height 27.4 mm [1.079 in], Keyed / Not Vented, Zhaga, Wire-to-Board, 4 Position, Sealable, Wire & Cable, Power, LUMAWISE Endurance S
2213858-1
Connector, Black, Height 27.4 mm [1.079 in], Keyed / Not Vented, Zhaga, Wire-to-Board, 4 Position, Sealable, Wire & Cable, Power, LUMAWISE Endurance S
-
- LUMAWISE
- LUMAWISE Endurance S
- TE Internal #: 2213858-1
- TE Internal Description: RECEPTACLE ASSEM., LUMAWISE ENDURANCE S
-
Operating Temperature Range : -40 – 90 °C [ -40 – 190 °F ]
-
Primary Product Color : Black
-
Connector & Contact Terminates To : Wire & Cable
-
Product Diameter : 36.5 mm [ 1.437 in ]
-
Connector Mounting Type : Board Mount
Documents
Product Drawings
- RECEPTACLE ASSEMBLY, LUMAWISE ENDURANCE S ENG_CD_2213858_A3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2213858-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2213858-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2213858-1_A.3d_igs.zip English
- ENG_CVM_CVM_2213858-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- LUMAWISE ENDURANCE Connector System ENG_CS_1-1773915-3_1903.pdf English
- LUMAWISE STREET LIGHT DIMMING AND CONTROL QUICK REFERENCE GUIDE ENG_DS_2-1773982-5_2009.pdf English
- Lumawise Endurance S Modules ENG_DS_1-1773915-3_Lumawise_Endurance_S_Modules_2106.pdf English
- LUMAWISE Endurance S modules CHI_DS_1-1773915-3_Lumawise_Endurance_S_Mod_CN_0617.pdf
Product Specifications
- Application Specification ENG_SS_114-133074_7.pdf English
- Product Specification ENG_SS_108-133073_D4.pdf English
Agency Approvals
- UL_EU_CERT_EN_61984_UL_EU_01778_M1_C1 ENG_AAD_UL_EU_CERT_EN_61984_UL_EU_01778_M1_C1_2.pdf English
- ENG_AAD_CB_CERT_IEC_61984_US_34131_M1_UL_C1_2.pdf English
- ENG_AAD_CB_CERT_US_34131_M1_UL_4788988643_TR_C1_1.pdf English
- ENG_AAD_CB_CERT_IEC_61984_DK_143319_UL_C1_1.pdf English
- Agency Approval Document ENG_AAD_CE_Declaration_2213858_A.pdf English
- LUMAWISE Endurance S to ZHAGA Book 18 ENG_AAD_DEKRA_2227803.05_A.pdf English
- UL ENG_AAD_UL_CERT_E66375_20170329_C1_6.pdf English
Product And Material Test Reports
- LUMAWISE ENDURANCE S CONNECTOR PLATFORM QUALIFICATION TESTING ENG_PMTR_501-134069_D.pdf English
