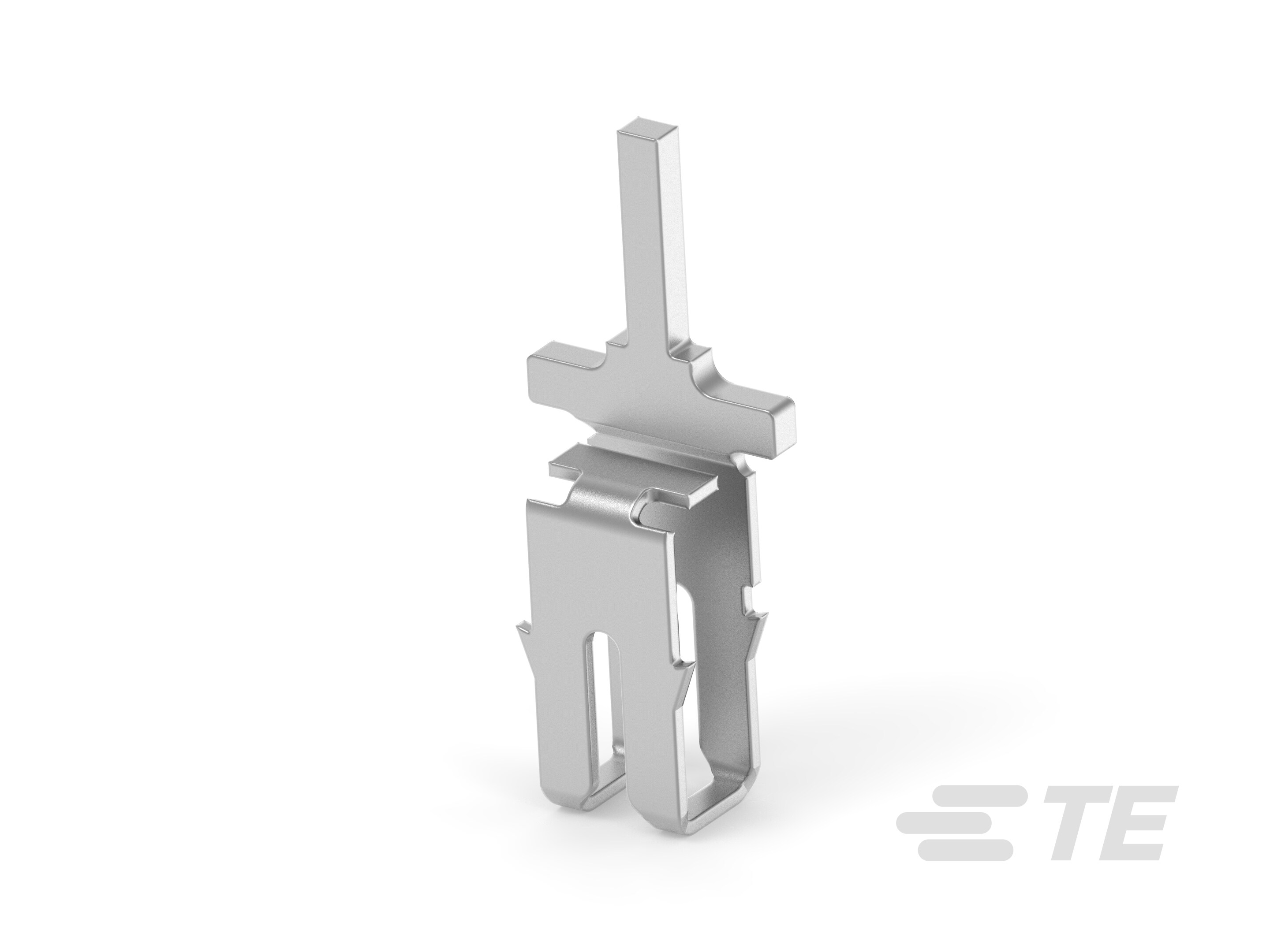

Multispring Pin, .85 – 1.12 mm Magnet Wire, 19 – 17 AWG Magnet Wire, Insulation Displacement (IDC), Tin Plating, MAG-MATE 300, Magnet Wire Terminals
2238145-3
Multispring Pin, .85 – 1.12 mm Magnet Wire, 19 – 17 AWG Magnet Wire, Insulation Displacement (IDC), Tin Plating, MAG-MATE 300, Magnet Wire Terminals
-
- MAG-MATE
- MAG-MATE 300
- TE Internal #: 2238145-3
- TE Internal Description: MAGMATE 300 SERIES WITH MULTISPRING PIN
-
Magnet Wire Terminal Type : Multispring Pin
-
Mating Pin Diameter : .8 mm [ .031 in ]
-
Compatible With Cavity Size : Size 2
-
Magnet Wire Size (mm): .85 – 1.12
-
Magnet Wire Size (AWG): 19 – 17
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2238145-3_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2238145-3_A.2d_dxf.zip English
- ENG_CVM_CVM_2238145-3_A.3d_igs.zip English
- ENG_CVM_CVM_2238145-3_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-74109_A3.pdf English
- Product Specification ENG_SS_108-74116_A3.pdf English
