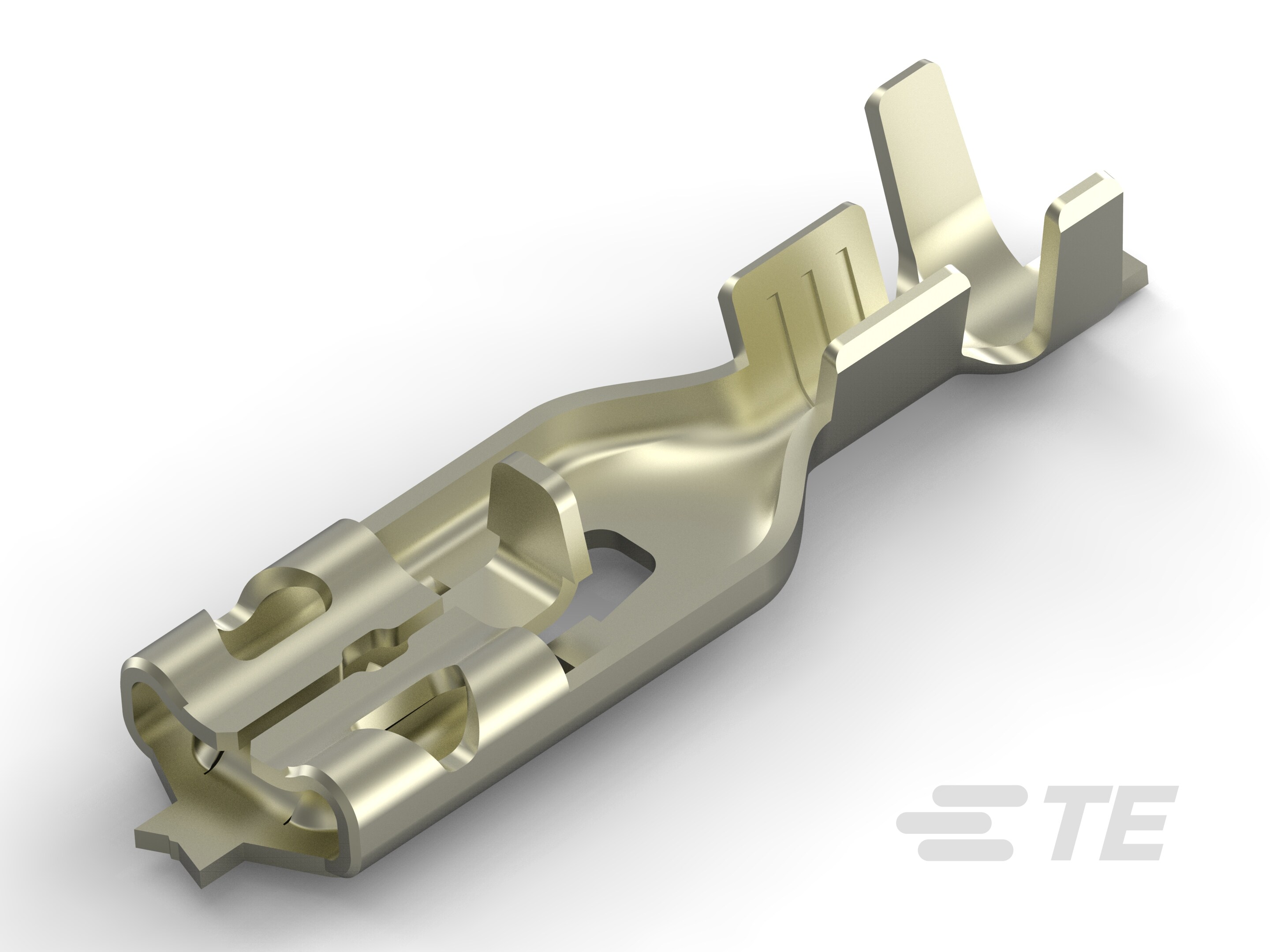

Receptacle, 20 – 16 AWG Wire Size, 1600 – 4234 CMA Wire Size, Mating Tab Width 4.75 mm [.187 in], Straight, Positive Lock 187, Quick Disconnects
2238178-1
Receptacle, 20 – 16 AWG Wire Size, 1600 – 4234 CMA Wire Size, Mating Tab Width 4.75 mm [.187 in], Straight, Positive Lock 187, Quick Disconnects
-
- Positive Lock
- Mark II ,
- Positive Lock 187
- TE Internal #: 2238178-1
- TE Internal Description: 187 X 020 POS LOC REC 20-16 NISTL
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 20 – 16
-
Wire Size (CMA): 1600 – 4234
-
Mating Tab Width : 4.75 mm [ .187 in ]
-
Mating Tab Thickness : .51 mm [ .02 in ]
Documents
Product Drawings
- 187X020 SERIES POSITIVE LOCK MARK II RECEP. ENG_CD_2238178_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2238178-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2238178-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2238178-1_A.3d_igs.zip English
- ENG_CVM_CVM_2238178-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- POS_LOCK_MII_QRG ENG_DS_1-1773922-4_POS_LOCK_MII_QRG_0219.pdf English
Product Specifications
- Application Specification ENG_SS_114-2074_N4.pdf English
- Engineering Report ENG_SS_502-143101_RevA_A.pdf English
- Product Specification ENG_SS_108-143022_E.pdf English
