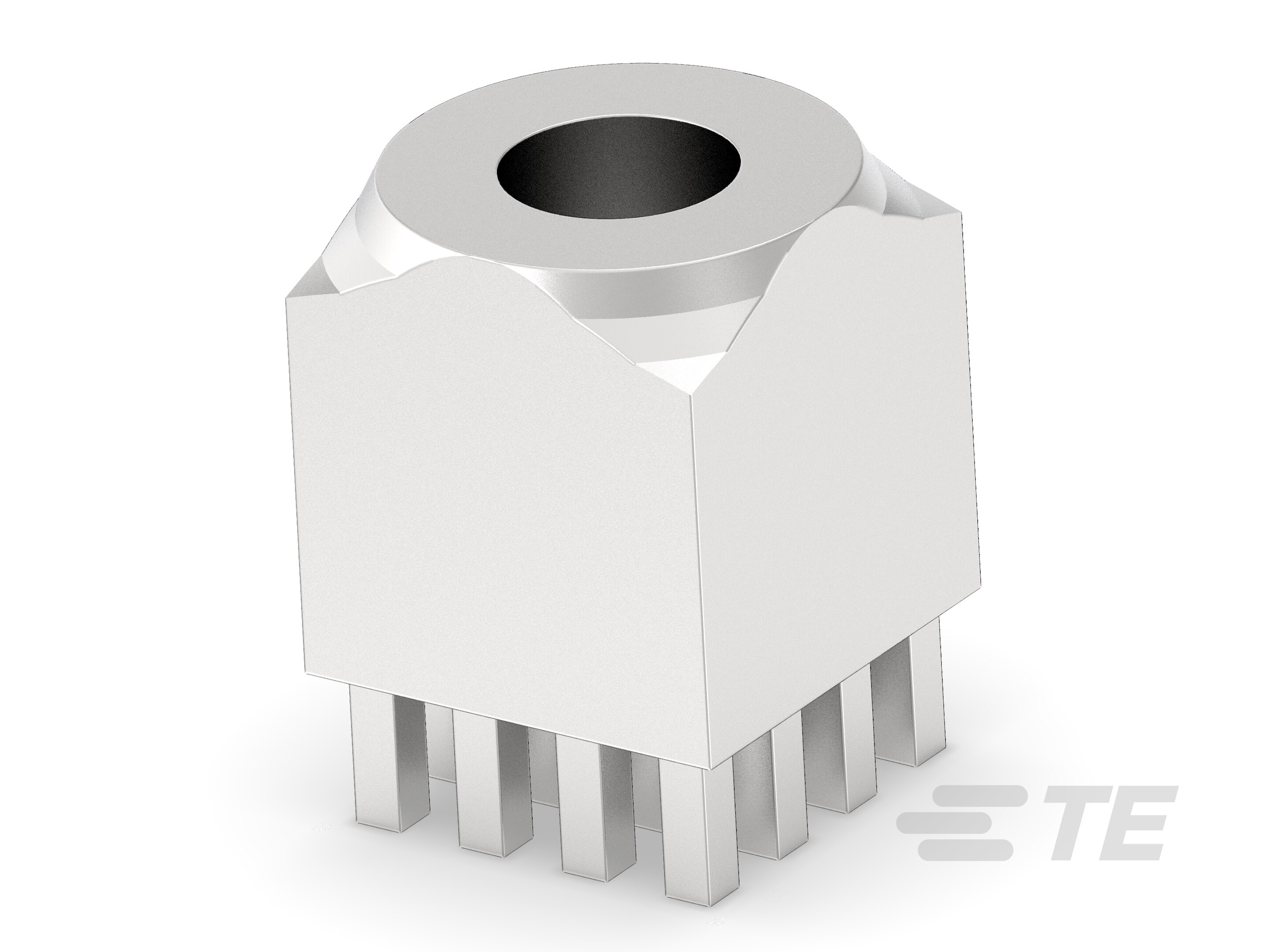

Power Tap, Terminates To Printed Circuit Board, 16 Position, 2.54 mm [.1 in] Centerline, Vertical, Tin (Sn), ERNI PowerElements, Power Terminals
225684-E
Power Tap, Terminates To Printed Circuit Board, 16 Position, 2.54 mm [.1 in] Centerline, Vertical, Tin (Sn), ERNI PowerElements, Power Terminals
-
- ERNI
- ERNI PowerElements
- TE Internal #: 225684-E
- TE Internal Description: POWELM BUCHSE VOLLM M6 6,5 2,54 * EP 10,
-
Power Terminal Type : Power Tap
-
Product Terminates To : Printed Circuit Board
-
Number of Positions : 16
-
Contact Current Rating (Max) (A): 160
-
Centerline (Pitch) : 2.54 mm [ .1 in ]
