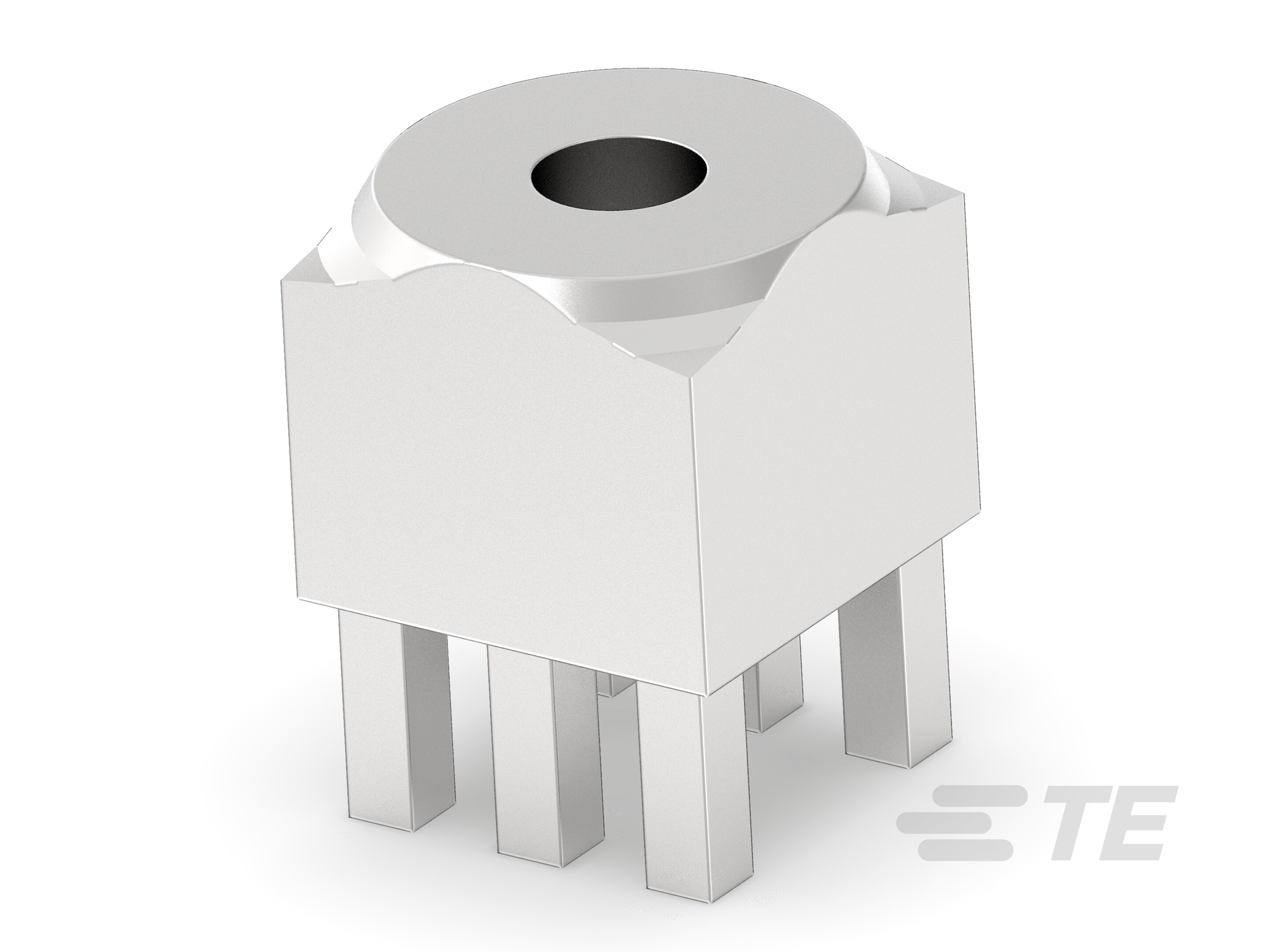

Power Tap, Terminates To Printed Circuit Board, 6 Position, 2.54 mm [.1 in] Centerline, Vertical, Tin (Sn), ERNI PowerElements, Power Terminals
225693-E
Power Tap, Terminates To Printed Circuit Board, 6 Position, 2.54 mm [.1 in] Centerline, Vertical, Tin (Sn), ERNI PowerElements, Power Terminals
-
- ERNI
- ERNI PowerElements
- TE Internal #: 225693-E
- TE Internal Description: POWELM BUCHSE ZWEIM M3 5 2,54 * EP 6 CUS
-
Power Terminal Type : Power Tap
-
Product Terminates To : Printed Circuit Board
-
Number of Positions : 6
-
Contact Current Rating (Max) (A): 60
-
Centerline (Pitch) : 2.54 mm [ .1 in ]
Documents
Product Drawings
- PowerElement female thread;two row population M3 GER_CD_225693-E-C_B1.pdf German
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_225693-E_1.pdf 3D
- Customer View Model ENG_CVM_CVM_225693-E_1.3d_igs.zip English
- ENG_CVM_CVM_225693-E_1.3d_stp.zip English
- ENG_CVM_CVM_225693-E_1.2d_dxf.zip English
Datasheets & Catalog Pages
- Data Sheet - ERNI PowerElements ENG_DS_erni-powerelements-ds_2302.pdf English
- Data Sheet - ERNI PowerElements GER_DS_erni-powerelements-ds_2302.pdf German
Product Specifications
- Application Specification ENG_SS_114-161211_A.pdf English
